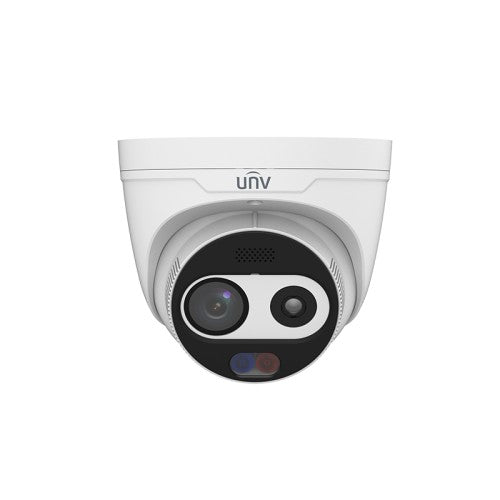

UNV TIC3612SA-F7-4F6AC-I1 4MP 6.0mm Length Optical with 1.3MP 7.0mm Length, Tri-Guard, Thermal Dual-Spectrum Thermal Turret Camera

- Thermal & Optical dual spectrum image, dual video with single IP address, adaptable to more various scenes

- 1/2.8" target surface, high sensitivity sensor, satisfy the need of starlight monitoring

- Thermal module support reliable fire detection, smoking detection and fire shield area

- Thermal module supports temperature detection and cold&hot spot tracking which highlights the abnormal temperature, and link to alarm

- Thermal & Optical dual spectrum smart intrusion prevention: cross line, enter area, leave area, intrusion

- Optical module supports smog recognition, which can help with fire alarm reconfirm

- Support picture in picture mode, real time contrast live, more convenient and clear

- Support audio and light alarm, with red and blue warning lights built in

- Ultra 265, H.265, H.264, MJPEG

- Max 2688*1520@30fps in the optical module and Max 960P@30fps in the thermal module

- DC12V±25% or PoE power supply

- Alarm 2 in and 2 out, Audio 1 in and 1 out, Micro SD, up to 512 GB

Model TIC3612SA-F7-4F6AC-I1 Channel Optical Thermal Camera Sensor 1/2.8" CMOS Vanadium oxide uncooled focal plane arrays Min. Illumination Colour: 0.003 lux (F1.6, AGC ON) B/W: 0.002lux(F1.6,AGC ON) 0 lux with IR N/A Day/Night IR-cut filter with auto switch (ICR) N/A NETD < 50 mk@F1.0@25 ℃ Shutter Auto/Manual, 1 to 1/100000 s WDR 120 dB S/N >56 dB Lens Focal Length 6.0 mm 7.0 mm Iris F1.6 F1.0 Field of View (H) 49.1° 25.2° Field of View (V) 26.9° 19.3° Field of View (D) 60.4° 31° DORI DORI Distance (Detect) 135.0m(442.9ft) N/A DORI Distance (Observe) 54.0m(177.2ft) N/A DORI Distance (Recognize) 27.0m(88.6ft) N/A DORI Distance (Identify) 13.5m(44.3ft) N/A Illuminator Wavelength 750 nm N/A Illumination Distance (IR) 30m N/A Light On/Off Control Auto/Manual N/A Video Frame Rate 4MP(2688*1520), Max 30fps 960P(1280*960), Max 30fps Video Compression Ultra 265, H.265, H.264, MJPEG Video Bit Rate 128 Kbps to 16 Mbps U-code Support ROI Support Video Stream Triple Streams OSD Up to 8 OSDs Privacy Mask Up to 8 areas (8 blacks/ 8 mosaics) N/A Image Digital Noise Reduction 2D/3D DNR Defog Digital Defog N/A Palette N/A lava, medical, arctic, mazarine, fusion, rain, puce, white hot, iron oxide red, hot iron, rainbow 1, rainbow 2, rainbow 3, depict hot, ice hot, black hot, red hot, green hot, color 1, color 2 Intelligent Smart Intrusion Prevention Cross line detection, intrusion detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human and vehicle) Smoke and Fire Detection Support N/A Temperature Measurement Accuracy   ±8 ℃ (±14.4 ℉) or ±8% (whichever is greater) Temperature Range   Selectable between -20 ℃ to 150 ℃ (-4 ℉ to 302 ℉) and 100 ℃ to 550 ℃ (212 ℉ to 1022 ℉) Events Fire Detection N/A Support Basic Detection Motion Detection, Tampering Alarm, Audio Detection N/A General
