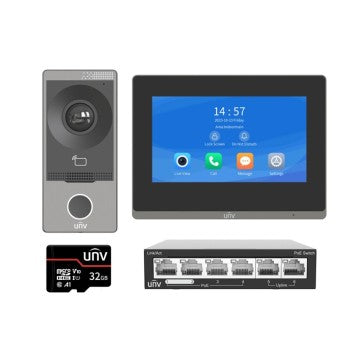

UNV KIT/201S/372S/NSW2020 Intercom Kit Includes an 2MP Intercom, an Indoor 7 inch Touchscreen, 4 Port PoE switch and Heavy Duty 32GB MicroSD Card

OEU-201S-HMK-W

Metal casing. Supports call and intercom with the connected indoor station and app. Supports security protection alarm and tamper alarm triggered by door magnet, infrared, etc. Supports Wi-Fi. Built-in IC card reader.

OEI-372S-H-W

ABS casing and glass panel, solid and durable. Supports Wi-Fi. Supports touchscreen operation. 1024 x 600 HD screen. Supports remote door opening by sending signal to the door station. Allows to view live video of connected door stations and network cameras.

NSW2020-6T-POE-IN

Allows to switch operating modes, including Default, VLAN, and Extend. Supports VLAN isolation. All PoE ports are isolated from each other and only able to communicate with uplink ports. Supports network extension. With a high-quality network cable and IPC, the network transmission distance can reach up to 250 meters by lowering the network port rate to 10Mbps. Supports port priority. Packets from high-priority ports will be forwarded first. Supports flow control. When there is data congestion in the uplink ports, the switch will actively send flow control frames to PoE ports. Plug-and-play, simple and convenient. All metal casing, secure and reliable. Model KIT/201S/372S/NSW2020 Kit dimensions (L×W×H) 268mm*213mm*180mm Kit weight 2.005kg Model OEU-201S-HMK-W Power supply DC12V ±25%, PoE power supply Card capacity 10000 Operating system Linux Illuminator IR light (adaptive) WDR Support FOV Horizontal: 124.3° Vertical: 67.5° Diagonal: 147.2° Power consumption < 10W Volume adjustment Support Audio quality Noise reduction, echo cancellation, auto gain control Audio input Built-in mic Audio output Built-in speaker Protocol Uniview private protocol Audio compression format PCM, G711, MP3 Audio compression bit rate 128kbps Button Call button Ingress protection IP65 (Apply waterproof glue to the gap between the device and the wall. See the corresponding quick guide for details.) IK08 Weight 0.267kg Mount method Wall mount, flush mount Interface Power supply*1, network interface*1, RS485*1, door lock interface*2, IO input*4 Communication mode 100Mbps network interface, supports IEEE802.3af; Wi-Fi Dimensions (L×H×W) 79mm*171mm*34mm Operating environment - 30°C to 60°C, 10% to 90% RH noncondensing, outdoor Model OEI-372S-H-W Power supply DC12V ±25%, PoE power supply Screen resolution 1024 x 600 Display screen 7-inch ultra-thin TFT LCD touch screen Operating system Linux Audio quality Noise reduction, echo cancellation, auto gain control Audio input Built-in mic Audio output Built-in speaker Audio compression format MP3, G711 Audio compression bit rate 128kbps Protocol Uniview private protocol TF card 1 x 32G TF card, capable of storing 100 live video snapshots, 200 call records and call snapshots. Power consumption < 10W Weight 0.377kg Interface Power supply*1, network interface*1, RS485*1, IO output*2, IO input*8, TF card slot*1 Communication mode 100Mbps network interface, supports IEEE802.3af; Wi-Fi Dimensions (L×H×W) 193.2mm*143.4mm*2
