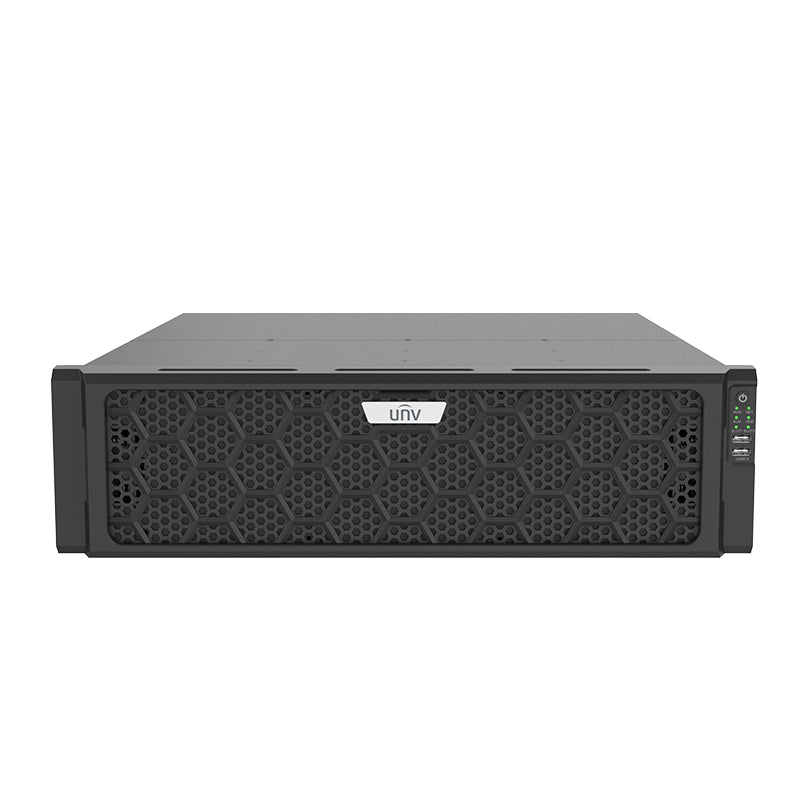

UNV NVR516-128E-R Advacned 128CH 16 Bay 4K 3U NVR

- Support Ultra 265/H.265/H.264 video formats

- 64/128-channel input

- Support 2-ch HDMI, 2-ch VGA, HDMI1 at up to 8K(7680x4320) resolution, HDMI2 at up to 4K(3840x2160) resolution

- VGA1 and HDMI1 simultaneous output, VGA2 and HDMI2 simultaneous output. VGA1/HDMI1 and VGA2/HDMI2 independent output

- Up to 32 Megapixels resolution recording

- Redundant power supply optional

- Support HDD hot swap with RAID 0, 1, 5, 6, 10, 50, 60 storage scheme configurable

- Support 12V power output

- ANR technology to enhance the storage reliability when the network is disconnected

- Support cloud upgrade

- Support N+1 Hot spare

Model NVR516-64E-R NVR516-128E-R Decoding Decoding Format Ultra 265, H.265, H.264 Decoding Capability H264 : 2 x 32MP@30, 4 x 16MP@30, 6 x 12MP@30, 9 x 4K@30, 14 x 5MP@30, 18 x 4MP@30, 24 x 3MP@30, 36 x 1080P@30, 64 x 720P@30 H265 : 3 x 32MP@30, 6 x 16MP@30, 8 x 12MP@30, 12 x 4K@30, 19 x 5MP@30, 24 x 4MP@30, 32 x 3MP@30, 48 x 1080P@30, 64 x 720P@30 H264 : 2 x 32MP@30, 4 x 16MP@30, 6 x 12MP@30, 9 x 4K@30, 14 x 5MP@30, 18 x 4MP@30, 24 x 3MP@30, 36 x 1080P@30, 72 x 720P@30, 128 x D1 H265 : 3 x 32MP@30, 6 x 16MP@30, 8 x 12MP@30, 12 x 4K@30, 19 x 5MP@30, 24 x 4MP@30, 32 x 3MP@30, 48 x 1080P@30, 96 x 720P@30, 128 x D1 Decoding Capability Description The resolution of each channel cannot exceed 8640 pixels in length or width, For VGA/HDMI independent output, the VGA live video is output by default. To output the highest resolution video from the HDMI port, please clear the VGA video on the preview page. Audio Compression G.711A, G.711U Network Incoming Bandwidth 640Mbps Outgoing Bandwidth 640Mbps Remote Users 128 Protocols TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, RTSP, 802.1x, IPv6, IPv4 Browser (Plugin) IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+ Video/Audio Input IP Video Input 64-ch 128-ch RCA Audio Input 1-ch Video/Audio Output HDMI Output HDMI1: 8K (7680 × 4320)/30 Hz, 4K (3840 2160)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz; HDMI2: 4K (3840 × 2160)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz VGA Output 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz RCA Audio Output 2-ch Liveview Display 1/4/6/8/9/16/25/36/64 Corridor Mode Screen 3/4/5/7/9/10/12/16/32 Two-way Audio Two-way Audio 1-ch, RCA (Using the audio input and output) Snapshot FTP/Schedule/Event Snapshot 16-ch snapshot (max. 8 MP (3840 × 2160) video resolution, with 1080P snapshot resolution) Recording Recording Resolution 32 MP/16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF Synchronous Playback in Local 16-ch Smart VCA Detection by IPC Face Detection, Vehicle Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD), Temperature Detection (Fire Detection, Smoking Detection, Temperature Measurement, Smoke and
