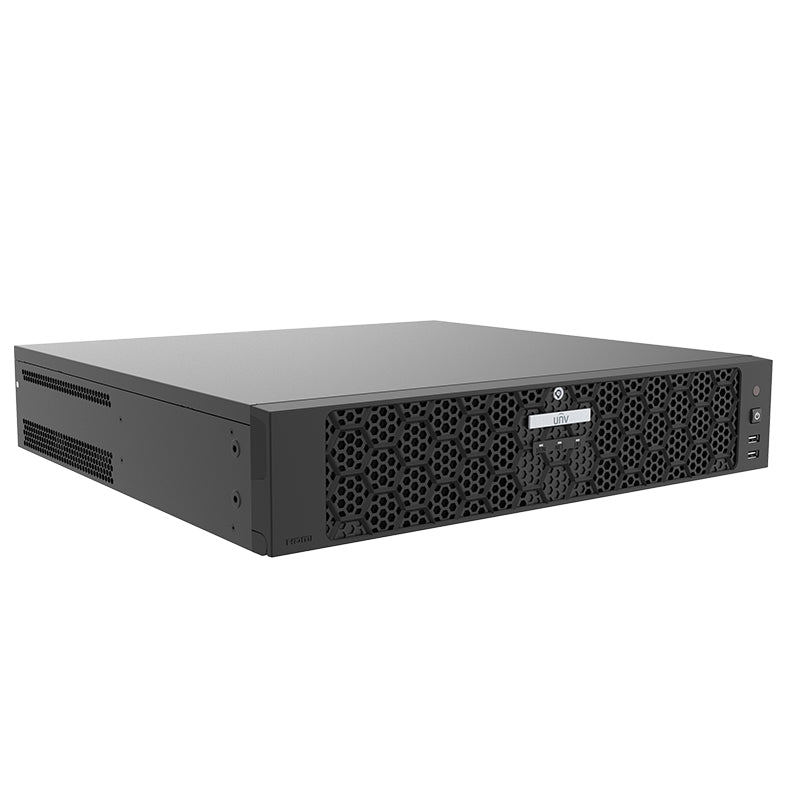

UNV NVR508-64E-R-IQ AI 64CH 2U 8 Bay Network Video Recorder

- Support Ultra 265/H.265/H.264 video formats - 64-channel input - Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T) and RTSP protocols - Support 2 HDMI and 2 VGA. VGA1 and HDMI1 simultaneous output, VGA2 and HDMI2 simultaneous output. VGA1/HDMI1 and VGA2/HDMI2 independent output - Up to 32 Megapixels resolution recording - Support N+1 Hot spare - Support HDD hot swap with RAID 0, 1, 5, 6, 10 storage scheme configurable - Redundant power supply optional - ANR technology to enhance the storage reliability when the network is disconnected - Support cloud upgrade

Model NVR508-64E-R-IQ Decoding Decoding Format Ultra 265, H.265, H.264 Decoding Capability Smart Off：2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 10 x 6MP@30, 12 x 5MP@30, 16 x 4MP@30, 20 x 3MP@30, 32 x 1080P@30, 64 x 720P@30 Smart On：1 x 32MP@30, 3 x 16MP@30, 4 x 12MP@30, 6 x 4K@30, 8 x 6MP@30, 9 x 5MP@30, 12 x 4MP@30, 16 x 3MP@30, 24 x 1080P@30, 48 x 720P@30 Decoding Capability Description The resolution of each channel cannot exceed 8192 pixels in length or width Audio Compression G.711A, G.711U Network Incoming Bandwidth Smart Off：384Mbps Smart On：200Mbps Outgoing Bandwidth Smart Off：384Mbps Smart On：200Mbps Remote Users 128 Protocols TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, RTSP, 802.1x, IPv6, IPv4 Browser (Plugin) IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+ Video/Audio Input IP Video Input 64-ch RCA Audio Input 1-ch Video/Audio Output HDMI Output 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz VGA Output 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz RCA Audio Output 2-ch Liveview Display HDMI1 and VGA1: 1/4/6/8/9/16/25/36/64; HDMI2 and VGA2: 1/4/6/8/9/16 Corridor Mode Screen HDMI1 and VGA1: 3/4/5/7/9/10/12/16/32; HDMI2 and VGA2: 3/4/5/7/9/10/12/16 Two-way Audio Two-way Audio 1-ch, RCA (Using the audio input and output) Snapshot FTP/Schedule/Event Snapshot 16-ch snapshot (max. 8 MP (3840 × 2160) video resolution, with 1080P snapshot resolution) Recording Recording Resolution 32 MP/16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF Smart VCA Detection by IPC Face Detection, Vehicle Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD), Temperature Detection (Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), People Counting (People Flow Counting, Crowd Density Monitoring), Video Metadata, Traffic Monitoring Smart by NVR Face Detection, Smart Intrusion Prevention (SIP), Ultra Motion Detection (UMD) VCA Search Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map, SmartSearch+, AcuSearch Smart by IPC All channels (up to 16 images/s in total)Face Detection, Vehicle Detection, Temperature Detection, SIP, UMD, Video Met
