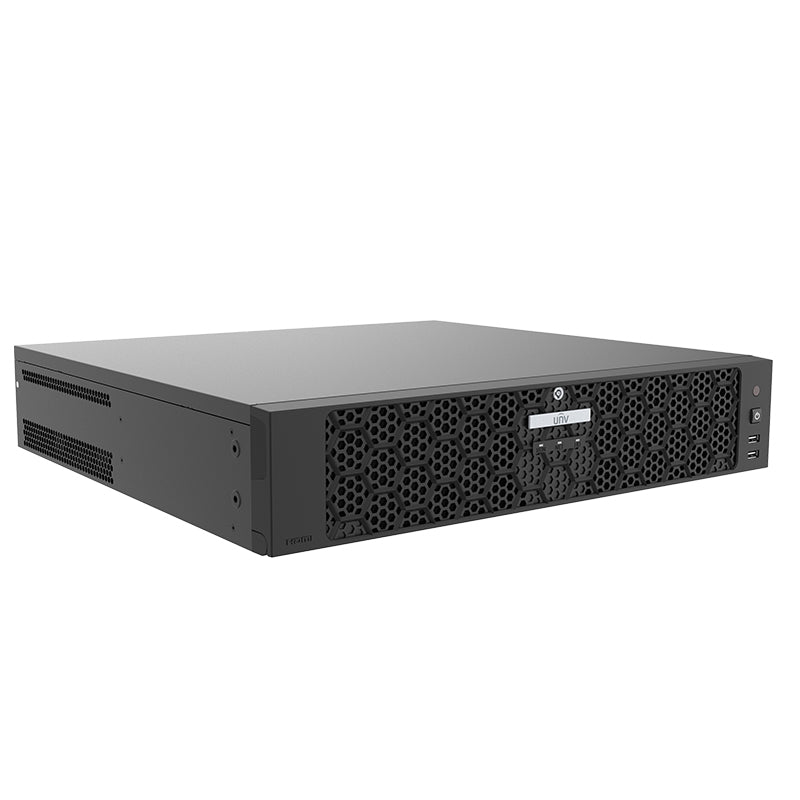

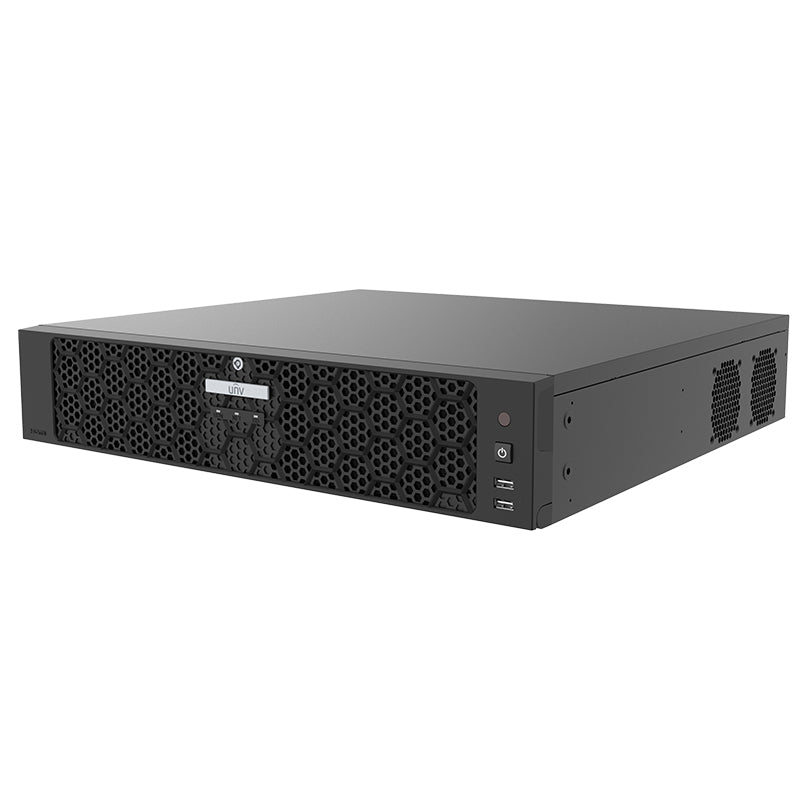

UNV NVR508-64E-R Advanced 64CH 8Bay 4K NVR

-Support Ultra 265/H.265/H.264 video formats

-64 channel input

-Support mainstream cameras of ONVIF conformance (Profile S, Profile G, Profile T) and RTSP protocols

-Support 2 HDMI and 2 VGA. VGA1 and HDMI1 simultaneous output, VGA2 and HDMI2 simultaneous output. VGA1/HDMI1 and VGA2/HDMI2 independent output

-Up to 32 Megapixels resolution recording

-8 SATA HDDs, up to 16TB for each HDD

-Support N+1 Hot spare

-Support HDD hot swap with RAID 0, 1, 5, 6, 10 storage scheme configurable

-Redundant power supply optional

-ANR technology to enhance the storage reliability when the network is disconnected

-Support cloud upgrade

Model NVR508-64E-R Video/Audio Input IP Video Input 64-ch Audio Input 1-ch, RCA Network Incoming bandwidth 384Mbps Outgoing bandwidth 384Mbps Remote Users 128 Protocols TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, RTSP, 802.1x, IPV6 Browser IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome (version 45 and above) for Windows Edge(version 79 and above) for Windows Video/Audio Output HDMI/VGA Output HDMI1, HDMI2: 4K (3840x2160)@60, 4K (3840x2160)@30, 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60 VGA1, VGA2: 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60 Recording Resolution 32MP/16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF Audio Output 2-ch, RCA Two-way Audio 1-ch, RCA(Using the audio input and output) Audio Compression G.711A, G.711U Synchronous Playback 16-ch Live View Display HDMI1, VGA1: 1/4/6/8/9/16/25/36/64 HDMI2, VGA2: 1/4/6/8/9/16/25/36 Corridor Mode Screen 3/4/5/7/9/10/12/16/32 Snapshot FTP/Schedule/Event Snapshot 16-ch snapshot, up to 1080P resolution Decoding Decoding Format Ultra 265/H.265/H.264 Live View/Playback 32MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF Capability 2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 16 x 4MP@30, 32 x 1080P@30, 54 x 960P@25, 72 x 720P@30, 128 x D1 Hard Disk SATA 8 SATA interfaces Capacity Up to 16TB for each disk Disk Group Support Disk Array Type RAID 0/1/5/6/10 Smart VCA Detection by Camera Smart Intrusion Prevention (Classification and color identification of human and vehicle: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection), Ultra Motion Detection(UMD), Temperature Detection(Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), People Counting(People Flow Counting, Crowd Density Monitoring), Video Metadata, Traffic Monitoring VCA Search Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map People Counting People Flow Counting, Crowd Density Monitoring Smart Intrusion Prevention (SIP), Face Detection, Face Comparison, Vehicle Detection, UMD, Temperature Detection, Video Metadata, Traffic Monitoring by Camera Total 16-ch General Alarm General Alarm Defocus Detection, Scene Change Detect
