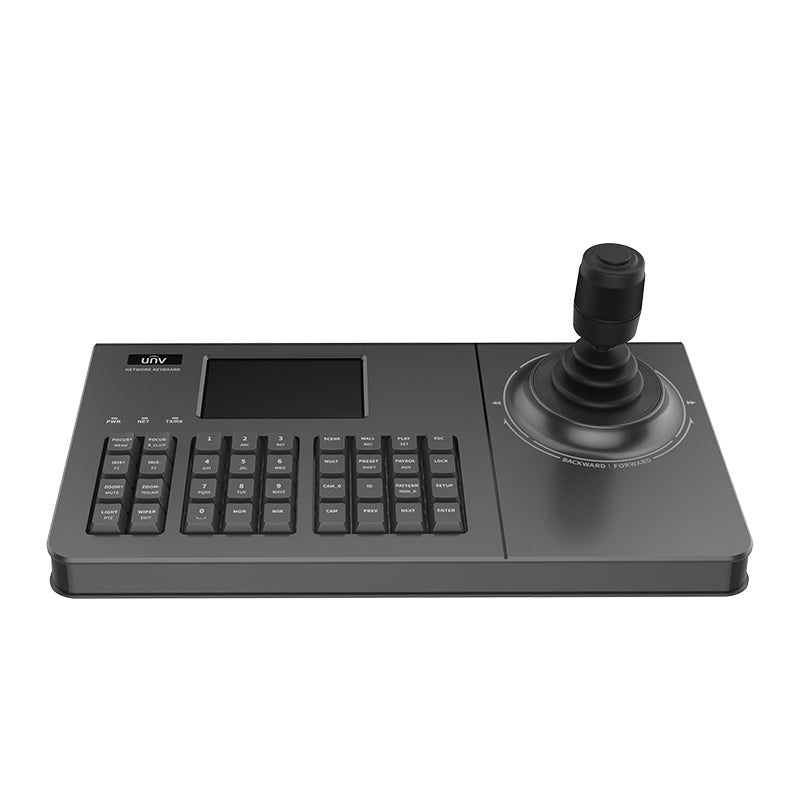

UNV KB-1100-E IP based Joystick Keyboard Controller for PTZ Camera with 4 inch Display Screen
Hurry up! Sales Ends In
Hurry! Only 0 Left in Stock!
- Simple appearance and buttons layout, aesthetic and user-friendly.
- 4-inch display screen provides clear image with more details.
- 4D joystick for PTZ control (move up/down//left/right, focus, zoom).
- Uses Hoare joystick with high control precision and stability, effectively extending the lifetime.
- Power on/off button on the keyboard, convenient and energy-saving.
- Simple and clear keyboard configuration, easy for use and maintenance.
- Supports playing video on video wall and control video.
- Supports keyboard lock.
- Allows to set multiple-level user permissions.
Model KB-1100-E General Screen Size 4 inches Joystick Four-dimensional joystick Max Power Consumption (W) <5 Product Dimensions (W × H × D) (mm) 345.00 x 189.82 x 128.16 Weight (kg) 1.2 Operating Temperature -10°C to 55°C Operating Humidity 10% to 90% RH, noncondensing Other Interfaces Serial Port 1 x RS232 (DB9, reserved) 2 x RS485 (half-duplex, reserved) Console 1 x Console/RS485 shared interface (RJ45) USB 2 x USB (reserved) Network Interface 1 x RJ45, 10M/100M/1000M Based-T adaptive interface Power DC 12 V RST 1 x Reset button
