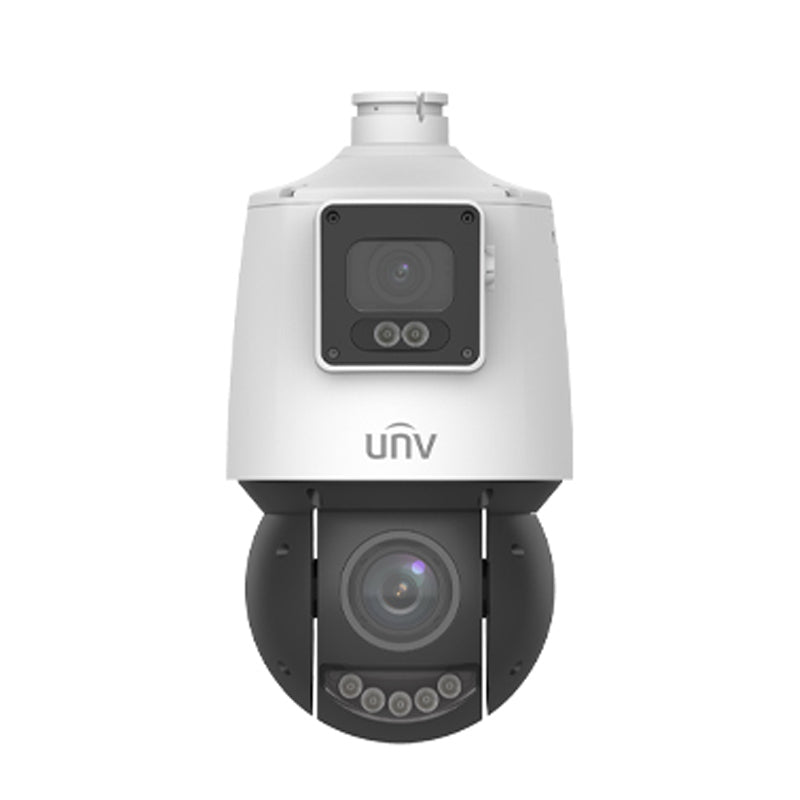

UNV IPC94144SFW-X25-F40C AI 4MP+4MP Network Lighthunter Dual-lens PTZ Camera Option for White and Black

-Fixed camera and PTZ camera integration, dual channels with one IP, look at overall situation and consider details at the same time

-Ultra 265, H.265, H.264, MJPEG

-25X optical zoom of PTZ channel allows for closer viewing of subjects

-Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection

-People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios

-PTZ channel can be linked to fixed channel’s smart intrusion prevention to track the objects triggering the rule

-Support light warning, makes warning and alarming more noticeable

-Lighthunter technology ensures ultra-high image quality in low illumination environment

-IR & warm light illumination to deal with different scenes and achieve full-color illumination

-DC12V or PoE+(IEEE 802.3at) power supply

-Alarm 2 in and 1 out, Audio 1 in and 1 out

Camera Panorama Detail Sensor 1/1.8", 4MP, CMOS 1/2.7", 4MP, CMOS Min. Illumination Color:0.0005 lux (F1.0, AGC ON) 0 lux with warm light Color:0.003 lux (F1.5, AGC ON) 0 lux with IR Day/Night N/A IR-cut filter with auto switch (ICR) Shutter Auto/Manual, 1 ~ 1/100000s WDR 120dB S/N ＞56dB Lens Lens type 4mm@F1.0 4.8~120mm@F1.5, AF automatic focusing and motorized zoom lens Optical Zoom N/A 25X Iris Fixed aperture; F1.0 Auto; F1.5(W)~F3.8(T) Field of View (H) 94.9° 55.46° ~ 3.09° Field of View (V) 51.5° 32.94° ~ 1.73° Field of View (D) 116.7° 68.22° ~ 3.65° DORI DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m) 4 (Panorama) 62.1 (203.6 ft) 24.8 (81.5 ft) 12.4 (40.7 ft) 6.2 (20.4 ft) 4.8 (Detail) 123.8 (406.0 ft) 49.5 (162.4 ft) 24.8 (81.2 ft) 12.4 (40.6 ft) 120 (Detail) 2475.0 (8120.1 ft) 990.0 (3248.0 ft) 495.0 (1624.0 ft) 247.5 (812.0 ft) Illuminator IR Range N/A Up to 100m (328.1 ft) Warm Light Range Up to 30m (98.4 ft) N/A Wavelength N/A 850nm (IR) Light On/Off Control Auto/Manual Video Video Compression Ultra 265, H.265, H.264, MJPEG Frame Rate Main Stream: 4MP (2688*1520),Max 30fps; Sub Stream: 1080P (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps; Main Stream: 4MP (2688*1520),Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; Third Stream: D1 (720*576), Max 30fps; Video Bit Rate 128 Kbps ~ 16 Mbps U-code Support ROI Up to 8 areas Video stream Triple streams OSD Up to 8 OSDs Privacy Mask Up to 4 areas per scene 24 areas, up to 4 areas per scene Image White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 Digital noise reduction 2D/3D DNR Smart IR Support Flip Normal/Flip Vertical/Flip Horizontal/180° HLC Support BLC Support Defog Digital defog Intelligent Smart Intrusion Prevention Support false alarm filtering: Cross line detection, Intrusion detection, Enter area detection, Leave area detection People Counting Support people flow counting and crowd density monitoring Linkage Function Support. Triggered by fixed lens via smart intrusion prevention function to track ta
