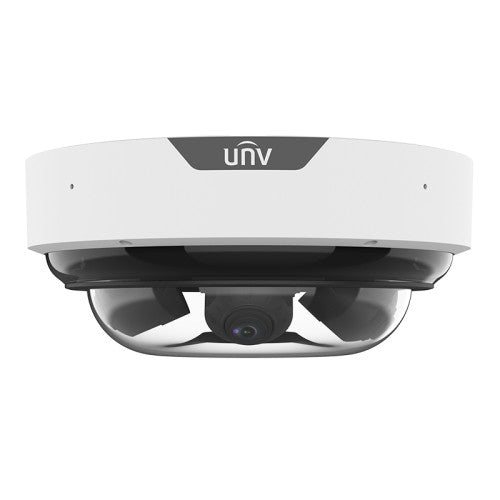

UNV IPC8645EA-ADZKM-I1 20MP Super Startlight IR 4-Directional Panoramic Dome Network Camera

- One IP with four channels

- Support multiple intelligent functions, different function of each channel can be enabled at the same time to satisfy various analysis requirement

- Pan, tilt, rotation angle of each lens can be adjusted independently, suitable for more complicated scenes

- 4 channel video output, 2880*1620@30fps in the main stream of each channel, provide high definition image

- Ultra 265, H.265, H.264, MJPEG

- Smart intrusion prevention, support false alarm filtering, realize accurate detection based on specific target

- People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios

- LightHunter technology ensures ultra-high image quality in low illumination environment

- Up to 130 dB Optical WDR (Wide Dynamic Range)

- IP67 ingress & IK10 protection

Camera Sensor 1/2.7" CMOS Min. Illumination Colour: 0.002 lux (F1.2, AGC ON) 0 lux with IR on Day/Night IR-cut filter with auto switch (ICR) WDR 130 dB Adjustment Angle Pan: 0° ~ 360°, Tilt: 0° ~ 65°, Rotate: 0° ~ 355° S/N >56 dB Lens Focal Length 2.7 to 13.5 mm Optical Zoom 5X Iris F1.2 * 4 Field of View (H) (W)110.3°~(T)31° Field of View (V) (W)57.1°~(T)17.5° Field of View (D) (W)143.4°-(T)38.1° Iris Type Fixed DORI DORI Distance (Detect) 70.9m~247.5m(232.5ft~812.0ft) DORI Distance (Observe) 28.4m~99.0m(93.0ft~324.8ft) DORI Distance (Recognize) 14.2m~49.5m(46.5ft~162.4ft) DORI Distance (Identify) 7.1m~24.8m(23.3ft~81.2ft) Illuminator Illumination Distance (IR) 50 m (164.0 ft) IR On/Off Control Auto/Manual Intelligent Exception Detection Scene Change, Defocus Detection, Object Removed, Object Left Behind Smart Intrusion Prevention Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) People Counting Support People Flow Counting and Crowd Density Monitoring Events Motion Detection Support Tampering Detection Support Audio Detection Support UMD (Ultra Motion Detection) Support Image Flip Normal, Flip Vertical, Flip Horizontal, 180°, 90° Clockwise, 90° Anti-clockwise Defog Digital Defog Network Protocols IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH Compatible Integration ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK User/Host Up to 32 users. 3 user levels: administrator, common user and operator Security Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF Web Browser Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ Storage Edge Storage Micro SD, up to 512 GB Network Storage ANR, NAS (NFS) Video Video Compression Ultra 265, H.265, H.264, MJPEG H.264
