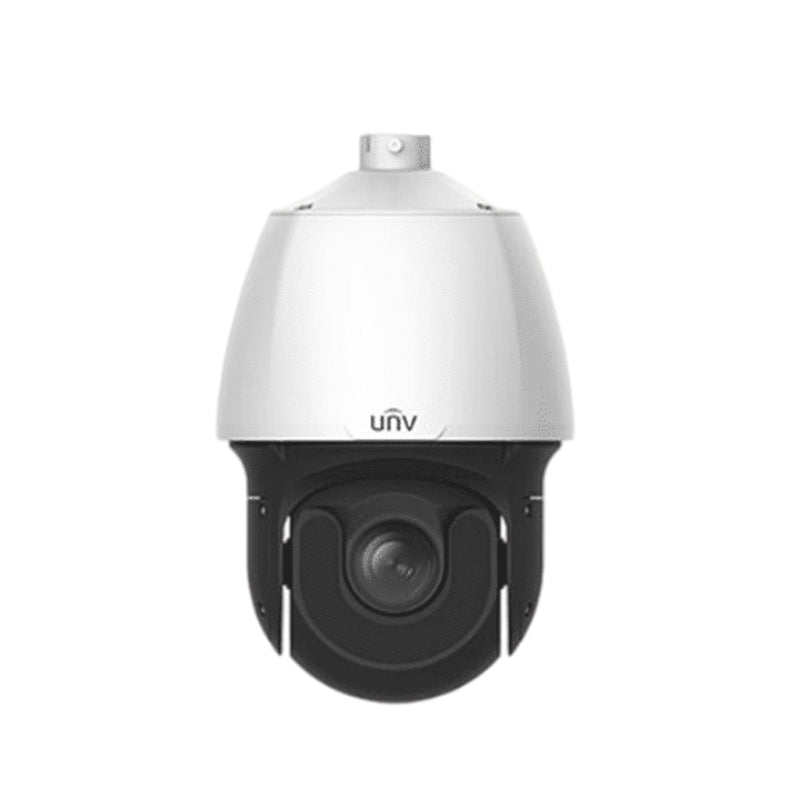

UNV IPC6658SR-X25-VF (BK) 8MP 4K Network 25x Lighthunter PTZ 6inch Dome Camera

-High quality image with 8MP,1/1.8’’ CMOS sensor

-3840*2160@30fps in the main stream

-Ultra 265, H.265, H.264, MJPEG

-Triple streams

-25X Optical Zoom

-Lighthunter technology ensures ultra-high image quality in low illumination environment

-Smart IR, up to 200m (656 ft) IR distance

-AC 24V±25%, DC 24V±25% or PoE power supply

-Alarm 2 in and 1 out, Audio 1 in and 1 out

-IP66 ingress protection

Camera Sensor 1/1.8″, 8.0 megapixel, progressive scan, CMOS Min. Illumination Colour: 0.003 Lux (F1.5, AGC ON) 0 Lux with IR Day/Night IR-cut filter with auto switch (ICR) Shutter Auto/Manual, 1 ~ 1/100000s WDR Digital wide dynamic S/N >56dB Lens Lens 6.0 ~ 150.0mm, AF automatic focusing and motorized zoom lens Digital Zoom 16 Optical Zoom 25 Iris Auto; F1.5 ~ F3.4 Angle of View (H) 60.5° ~ 3.1° Angle of View (V) 36.3° ~ 1.8° Angle of View (O) 71.4° ~ 3.7° DORI DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m) 6.0 143.1(469.5ft) 57.2(187.8ft) 28.6(93.9ft) 14.3(46.9ft) 150.0 3116.3 (10223.9ft) 1246.5(4089.6ft) 623.3(2044.8ft) 311.6(1022.4ft) Illuminator Vari-focal Laser Up to 200m(656ft) Wavelength 850nm IR On/Off Control Auto/Manual Video Video Compression Ultra 265, H.265, H.264, MJPEG Frame Rate Main Stream: 8MP(3840*2160),Max 30fps(Max 20fps when AI functions enabled); Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps; Video Bit Rate 128 Kbps~16 Mbps H.264 Type Baseline Profile/Main Profile/High Profile H.265 Type Main Profile U-code Susepport ROI Up to 8 areas Video stream Triple streams OSD Up to 8 OSDs Privacy Mask 24 areas, up to 4 blacks in the same picture Image White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 Digital noise reduction 2D/3D DNR Smart IR Support Flip Normal/Flip Vertical/Flip Horizontal/180° HLC Support BLC Support Defog Digital Defog Events Basic Detection Motion detection, Audio detection, Tampering Alarm; Auto tracking Support later General Function Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication Audio Audio Compression G.711U,G.711A Audio Bitrate 64 Kbps Two-way Audio Support Suppression Support Sampling Rate 8KHZ Storage Edge Storage Micro SD, up to 256 GB Network Storage ANR,NAS(NFS) Network Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS Compatible Integration ONVIF (Profile S, Profile G, Profile T), API, SDK User/Host Up to 32 users. 2 user levels: administrator and common user Security Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF Client EZStation EZLive Ezview Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Pan & Tilt Pan Range 360° (endless) Pan Speed 0.1°/s ~ 200°/s Pr
