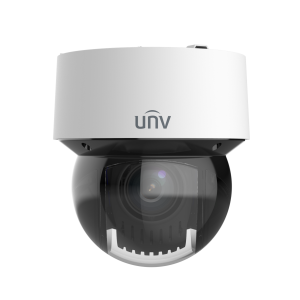

UNV IPC6612SR-X25-VG 2MP 25x Lighthunter Network PTZ Dome Camera

-High quality image with 2MP,1/2.8’’ CMOS sensor

-1920*1080@30fps in the main stream

-Ultra 265, H.265, H.264, MJPEG

-25X optical zoom allows for closer viewing of subjects

-Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection

-LightHunter technology ensures ultra-high image quality in low illumination environment

-Up to 120 dB Optical WDR (Wide Dynamic Range)

-DC12V or PoE+(IEEE 802.3at) power supply

-Audio 1 in and 1 out, Alarm 2 in and 1 out

-Micro SD, up to 256GB

-Smart IR, up to 150m (492 ft) IR distance

-IP66 ingress protection

Camera Sensor 1/2.8", 2.0 megapixel, progressive scan, CMOS Min. Illumination Colour: 0.001 Lux (F1.5, AGC ON) 0 Lux with IR Day/Night IR-cut filter with auto switch (ICR) Shutter Auto, 1 ~ 1/100000s WDR 120dB S/N >52dB Lens Lens type 5~ 125mm, AF automatic focusing and motorized zoom lens Optical Zoom 25 Iris Autol; F1.5 ~ F3.0 Field of View (H) 54.37° ~ 2.68° Field of View (V) 32.23° ~ 1.51° Field of View (D) 66.88° ~ 3.16° DORI DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m) 5 85.3(280.0ft) 34.1(112.0ft) 17.1(56.0ft) 8.5(28.0ft) 125 1706.9 (5600.1ft) 682.8(2240.0ft) 341.4(1120.0ft) 170.7(560.0ft) Illuminator IR Range Up to 150m (492 ft) IR range Wavelength 850nm IR On/Off Control Auto/Manual Video Video Compression Ultra 265, H.265, H.264, MJPEG Frame Rate Main Stream: 2MP(1920*1080),Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; Third Stream: D1 (720*576), Max 30fps; Video Bit Rate 128 Kbps~16 Mbps U-code Support ROI Up to 8 areas Video stream Triple streams OSD Up to 8 OSDs Privacy Mask 24 areas, up to 4 areas per scene Image White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 Digital noise reduction 2D/3D DNR Smart IR Support Flip Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise HLC Support BLC Support Defog Digital Defog Intelligent Smart intrusion Prevention Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection Events Basic Detection Motion detection, Audio detection, Tampering Alarm Auto Tracking Support General Function Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication Audio Audio Compression G.711U,G.711A Audio Bitrate 64 Kbps Two-way Audio Support Suppression Support Sampling Rate 8 kHz Storage Edge Storage Micro SD, up to 256 GB Network Storage ANR,NAS(NFS) Network Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS Compatible Integration ONVIF (Profile S, Profile G, Profile T), API,SDK User/Host Up to 32 users. 3 user levels: administrator, operator and common user Security Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HT
