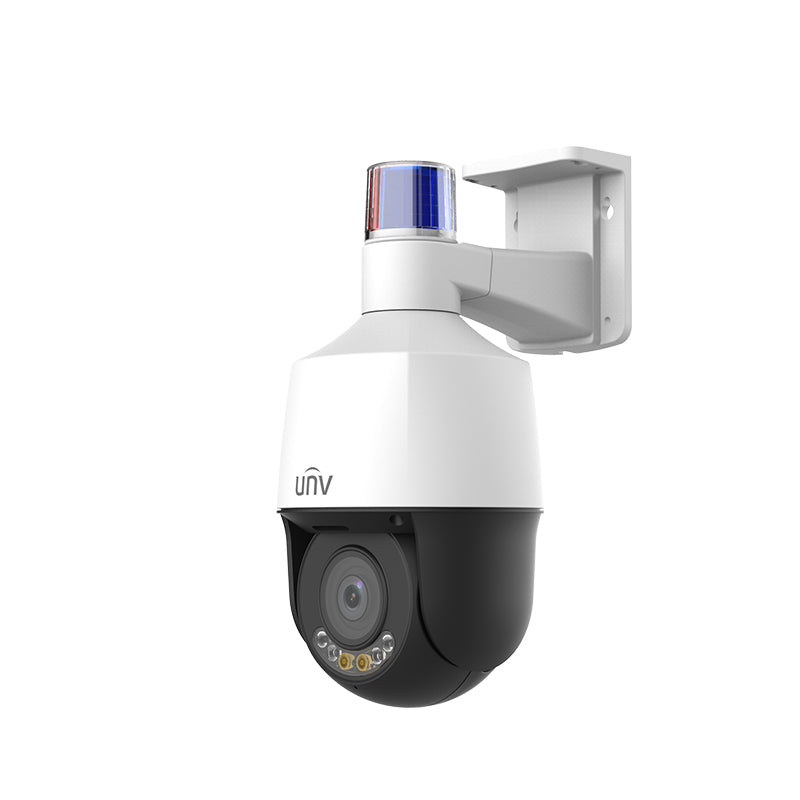

UNV IPC6325LFW-AX5C-VG 5MP Network Tri-Guard Dual-light Active Deterrence Mini 5X Zoom PTZ Camera

- High quality image with 5MP, 1/2.8" CMOS sensor

- Ultra 265, H.265, H.264, MJPEG

- Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection

- LightHunter technology ensures ultra-high image quality in low illumination environment

- Up to 120 dB WDR (Wide Dynamic Range)

- Built-in Mic & Speaker

- Smart IR, Up to 50 m (164 ft) IR distance and 15m (49 ft) warm light distance

- Micro SD, up to 512GB

- IP66 protection

- DC12V or PoE (IEEE 802.3at) power supply

Camera Max Resolution 5 MP Sensor 1/2.7" CMOS Min. Illumination Colour: 0.005 Lux (F1.2, AGC ON) 0 Lux with IR Day/Night IR-cut filter with auto switch (ICR) Shutter Auto/Manual, 1 to 1/100000 s WDR 120 dB S/N >56 dB Lens Focal Length 2.7 to 13.5 mm Optical Zoom 5X Iris F1.2 Field of View (H) 106.9°~30.6° Field of View (V) 56°~17.7° Field of View (D) 131.5°-36.1° DORI DORI Distance (Detect) 70.9 m ~ 247.5 m (232.5 ft ~ 812 ft) DORI Distance (Observe) 28.4 m ~ 99 m (93 ft ~ 324.8 ft) DORI Distance (Recognize) 14.2 m ~ 49.5 m (46.5 ft ~ 162.4 ft) DORI Distance (Identify) 7.1 m ~ 24.8 m (23.3 ft ~ 81.2 ft) Illuminator Illumination Distance (Warm Light) 15 m (49.3 ft) Light On/Off Control Auto/Manual Illumination Distance (IR) 50 m (164.0 ft) Wavelength 850 nm Video Video Compression Ultra 265, H.265, H.264, MJPEG Frame Rate Main Stream: 5MP (2880*1620), Max 30fps Sub Stream: 720P (1280*720), Max 30fps Third Stream: D1 (720*576), Max 30fps Video Bit Rate 128 Kbps to 16 Mbps U-code Support ROI Support Video Stream Triple Streams Privacy Mask Up to 4 areas OSD Up to 8 OSDs Events Basic Detection Motion Detection, Tampering Alarm, Audio Detection, Object Removed, Object Left Behind, Scene Change, Defocus Detection General Function Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication Audio Audio Compression G.711U, G.711A Audio Bitrate 128 Kbps Two-way Audio Support Suppression Support Sampling Rate 16KHZ Storage Edge Storage Micro SD, up to 512 GB Network Storage ANR, NAS (NFS) Intelligent Exception Detection Object Removed, Object Left Behind, Scene Change, Defocus Detection Auto Tracking Support, target filtering: human only Smart Intrusion Prevention Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) People Counting Support People Flow Counting and Crowd Density Monitoring Network Protocols TLS1.3, SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS Compatible Integration ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK Security Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF Clien
