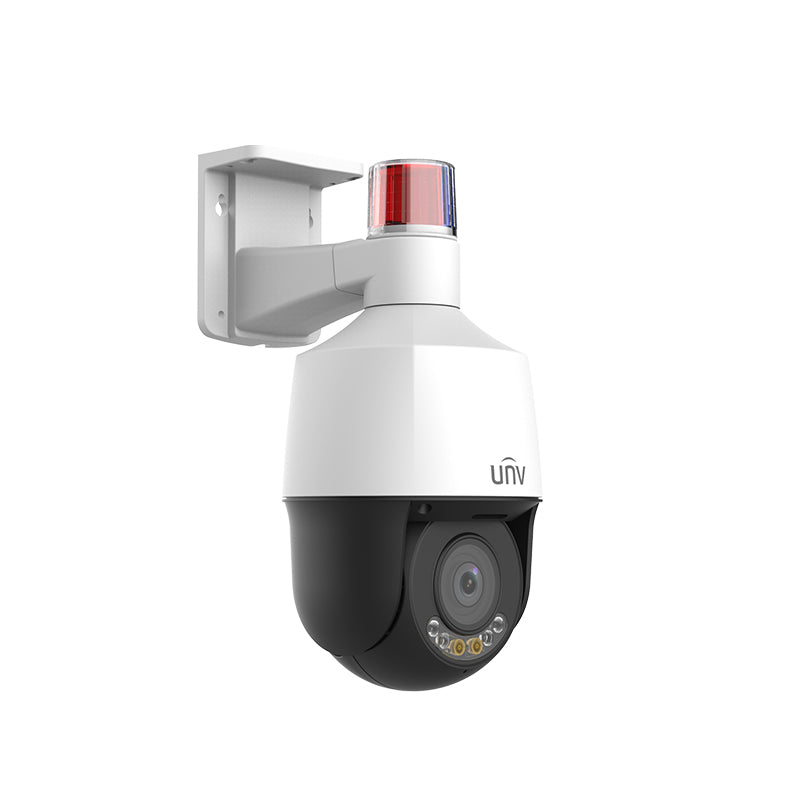

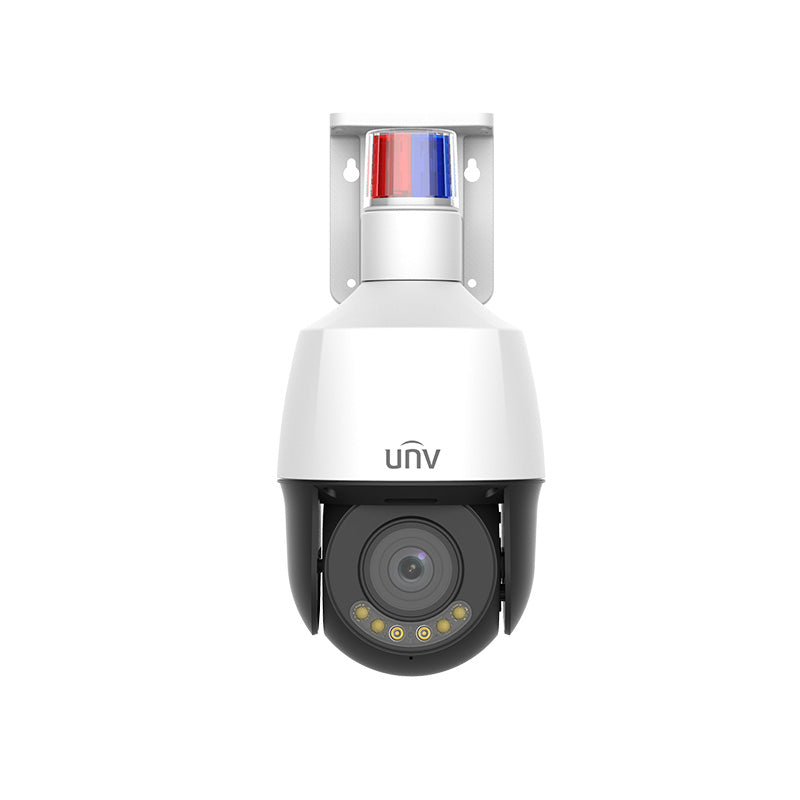

UNV IPC6324LWH-AX5C-VG2 4MP 5X Wise-ISP Tri-Guard Warm light Network PTZ Camera

- High quality image with 4 MP, 1/1.8" CMOS sensor- Supports ColorHunter with Wise-ISP technology, deeply optimizing color, detail, and smear effects in extremely low-light scenes

- Ultra 265, H.265, H.264, MJPEG

- 2688 × 1520@30 fps in the main stream, 16:9 aspect ratio

- Smart intrusion prevention, supports false alarm filtering, cross line detection, intrusion detection

- Up to 120 dB WDR (wide dynamic range)

- Built-in mic and speaker

- 40 m (131.2 ft) warm light distanc

- MicroSD, up to 512 GB

- IP66 protection

- DC 12 V, PoE (IEEE 802.3at) power supply

Model IPC6324LWH-AX5C-VG2 Camera Sensor 1/1.8" CMOS Min. Illumination Color: 0.0005 Lux (F1.2, AGC ON) Day/Night IR-cut filter with auto switch (ICR) Shutter Auto/Manual, 1 to 1/100000 s WDR 120 dB S/N >56 dB Lens Focal Length 2.7 to 13.5 mm Optical Zoom 5X Field of View (H) 113.69° to 50.29° Field of View (V) 59.46° to 28.45° Field of View (D) 156.23° to 59.34° DORI DORI Distance (Lens) 2.7 to 13.5 mm DORI Distance (Detect) 98.6 m to 209.9 m (323.3 ft. to 688.7 ft) DORI Distance (Observe) 39.4 m to 84.0 m (129.3 ft. to 275.5 ft) DORI Distance (Recognize) 19.7 m to 42.0 m (64.7 ft. to 137.7 ft) DORI Distance (Identify) 9.9 m to 21.0 m (32.3 ft. to 68.9 ft) Illuminator Illumination Distance (Warm Light) 40 m Light On/Off Control Auto/Manual Video Video Compression Ultra 265, H.265, H.264, MJPEG Video Bit Rate 128 Kbps to 6144 Kbps U-code Support ROI Support Video Stream Triple streams Privacy Mask Up to 4 areas OSD Up to 8 OSDs Frame Rate-Main Stream 4 MP (2560 × 1440)@25 fps (Default) 4 MP (2688 × 1520), max. 30 fps; 4 MP (2560 × 1440), max. 30 fps Events Basic Detection Motion detection, Audio detection, Tampering alarm General Function Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication Motion Detection Support Tampering Detection Support Audio Detection Support UMD (Ultra Motion Detection) Support Audio Audio Compression G.711U, G.711A Audio Bitrate 128 Kbps Two-way Audio Support Suppression Support Sampling Rate 8 kHz, 16 kHz Storage Edge Storage MicroSD, up to 512 GB Intelligent Auto Tracking Support, target filtering: human only Smart Intrusion Prevention Support false alarm filtering: cross Line detection, intrusion detection (based on human body and vehicle detection) Network Protocols TLS1.3, SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS Compatible Integration ONVIF (Profile S,Profile G,Profile T), API Security Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF Client EZStation, EZLive, EZView Web Browser Plug-in required live view: IE 10 and above,Chrome 45 and above,Firefox 52 and above,Edge 79 and above Image White Balance Auto, Outdoor, Fine tune, Sodium lamp, Loc
