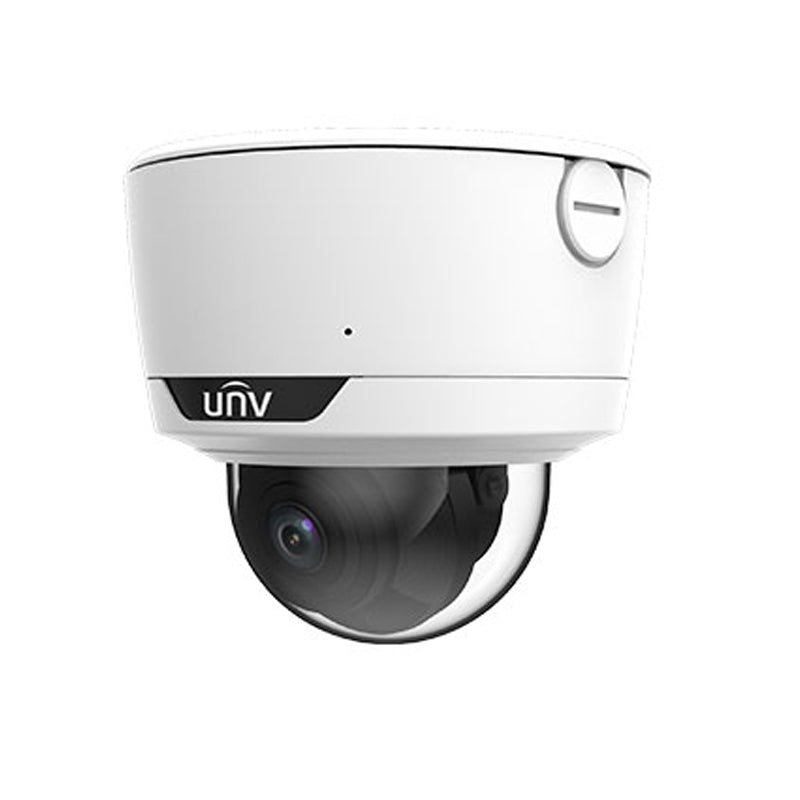

UNV IPC3738SE-ADZK-I0 AI 8MP 4K Network LightHunter IR 2.8-12mm Motorized Lens Built-in Heater Dome Camera

-High quality image with 8MP,1/1.8’’ CMOS sensor

-3840*2160@30fps in the main stream

-Ultra 265, H.265, H.264, MJPEG

-Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection

-People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios

-LightHunter technology ensures ultra-high image quality in low illumination environment

-Up to 120 dB Optical WDR (Wide Dynamic Range)

-Built-in heater, support normal start-up at low temperature

-DC12V or PoE (IEEE 802.3af) power supply

-Wide voltage range of ±25% in DC

-Audio 1 in and 1 out, Alarm 2 in and 1 out

Camera Sensor 1/1.8", 8.0 megapixel, progressive scan, CMOS Min. Illumination Colour:0.0008 lux (F1.2, AGC ON) 0 lux with IR Day/Night IR-cut filter with auto switch (ICR) Shutter Auto/Manual, 1 ~ 1/100000s Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° WDR 120dB S/N >56dB Lens Lens type 2.8~12mm@F1.2, AF automatic focusing and motorized zoom lens Iris Fixed Field of View (H) 48.0°~101.1° Field of View (V) 23.9°~57.2° Field of View (D) 4.12°~74.38° DORI DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m) 2.8 98.6(323.3ft) 39.4(129.3ft) 19.7(64.7ft) 9.9(32.3ft) 12 241.0(790.6ft) 96.4(316.2ft) 48.2(158.1ft) 24.1(79.1ft) Illuminator IR Range Up to 40m (131 ft) IR range Wavelength 850nm IR On/Off Control Auto/Manual Video Video Compression Ultra 265, H.265, H.264, MJPEG Frame Rate Main Stream: 8MP (3840*2160), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; Third Stream: D1 (720*576), Max 30fps; Video Bit Rate 128 Kbps~16 Mbps ROI Up to 8 areas Video stream Triple streams OSD Up to 8 OSDs Privacy Mask Up to 4 areas per scene Image White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 Digital noise reduction 2D/3D DNR Smart IR Support Flip Normal/Flip Vertical/Flip Horizontal/180° HLC Support BLC Support Defog Digital Defog Intelligent Smart intrusion prevention Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection People counting Support people flow counting and crowd density monitoring Events Basic Detection Motion detection, Audio detection, Tampering alarm General Function Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication Audio Audio Compression G.711U, G.711A Audio Bitrate 64 Kbps Two-way Audio Support Suppression Support Sampling Rate 8KHz Storage Edge Storage Micro SD, up to 256 GB Network Storage ANR,NAS(NFS) Network Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS Compatible Integration ONVIF (Profile S, Profile G, Profile T), API, SDK User/Host Up to 32 users. 3 user levels: administrator, operator and common user Security Password protection, strong password, HTTPS
