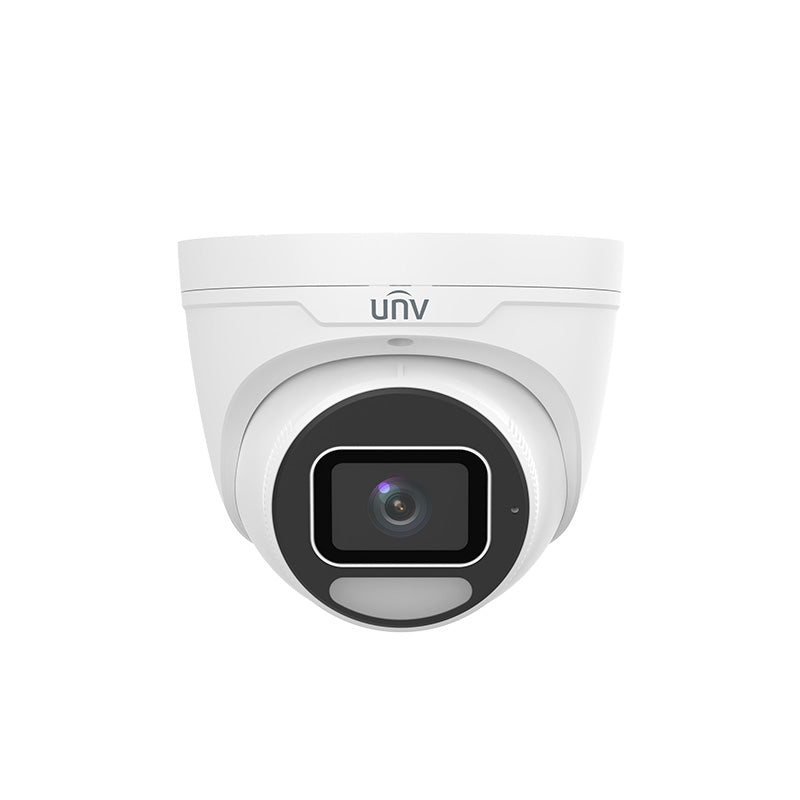

UNV IPC3638SE-ADF28K-WP-I1 8MP WDR OwlView Plus 2.8mm Wise ISP Eyeball Network Camera

- High quality image with 8MP, 1/1.2" CMOS sensor

- 8MP (3840 × 2160)@30/25 fps; 5.3MP (3072 × 1728)@30/25 fps; 3.6MP (2560 × 1440)@30/25 fps; 2MP (1920 × 1080)@30/25 fps; 720P (1280 × 720), Max 30/25 fps

- Ultra 265, H.265, H.264, MJPEG

- Colorhunter with Wise-ISP technology ensures 24-hour full-color images

- Intelligent perimeter protection, include cross line, intrusion, enter area, leave area detection

- Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle

- Intelligent People Flow Counting and Crowd Density Monitoring

- Smart intrusion prevention with Color retrieval Auto Scene Match (ASM)

- 130 dB true WDR technology enables clear image in strong light scen

- Support 9:16 Corridor Mode

- Alarm: 1 in/1 out, Audio: 1 in/1 out, Built-in Mic

- White Light, up to 30 m warm light distance

- Supports up to 512 GB Micro SD Card

- IK10 vandal resistant and IP67 protection

Model IPC3638SE-ADF28K-WP-I1 IPC3638SE-ADF40K-WP-I1 Camera Max Resolution 8 MP Sensor 1/1.2" CMOS Min. Illumination Color: 0.0003 Lux (F1.0, AGC ON) Shutter Auto/Manual, 1 to 1/100000 s Adjustment Angle Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° S/N >56 dB WDR 130 dB Lens Focal Length 2.8 mm 4.0 mm Iris Type Fixed Iris F1.0 Field of View (H) 105.0° 88.3° Field of View (V) 56.1° 48.3° Field of View (D) 121.0° 102.5° Lens Type Fixed DORI DORI Distance (Lens) 2.8 mm 4 mm DORI Distance (Detect) 43.4 m (142.4 ft.) 62.1 m (203.7 ft.) DORI Distance (Observe) 17.4 m (57.1 ft.) 24.8 m (81.4 ft.) DORI Distance (Recognize) 8.7 m (28.5 ft.) 12.4 m (40.7 ft.) DORI Distance (Identify) 4.3 m (14.1 ft.) 6.2 m (20.3 ft.) Illuminator Supplemental Light Warm light Illumination Distance (Warm Light) 30 m (98.4 ft) Light On/Off Control Auto/Manual Video Video Compression Ultra 265, H.265, H.264, MJPEG H.264 Code Profile Baseline profile, Main profile, High profile Frame Rate-Main Stream 8 MP (3840 × 2160), max. 30 fps; 5.3 MP (3072 × 1728), max. 30 fps; 3.6 MP (2560 × 1440), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps Frame Rate-Sub Stream 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps Frame Rate-Third Stream D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps Video Bit Rate 128 Kbps to 16 Mbps U-code Support OSD Up to 8 OSDs Privacy Mask Up to 4 areas ROI Support Video Stream Triple streams Image White Balance Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 Digital Noise Reduction 2D/3D DNR Smart IR Support Auto Scene Match (ASM) Support Flip Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise Dewarping N/A HLC Support BLC Support Defog Digital defog Intelligent Smart Intrusion
