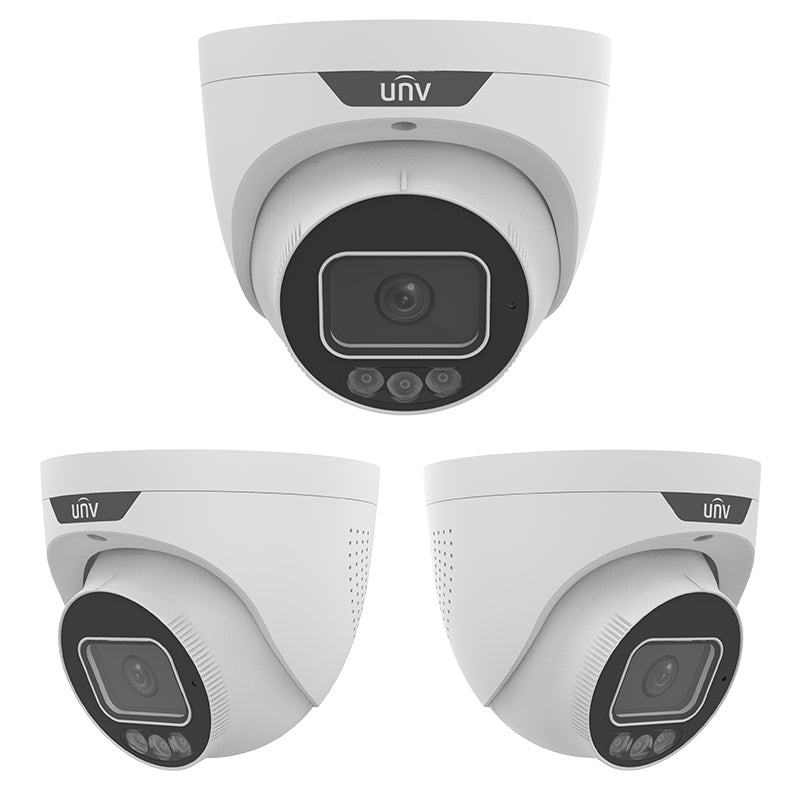

UNV IPC3635SS-ADF28KMC-I1 (BK) 5MP AI Tri-Guard 2.0 HD Intelligent Light and Audible Warning Fixed Eyeball Network Camera

-High quality image with 5MP, 1/2.7"CMOS sensor -5MP (2880*1620)@ 30/25(default)fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps -Ultra 265, H.265, H.264, MJPEG -Intelligent perimeter protection, include cross line, intrusion, enter area, leave area detection -Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle -Intelligent People Flow Counting and Crowd Density Monitoring -Auto Scene Match (ASM)（Only WDR） -130dB true WDR technology enables clear image in strong light scene -Support red & blue warning light -Support 9:16 Corridor Mode -Alarm:1 in/1 out, Audio: 1 in/1 out, Built-in Mic and Speaker -Smart IR, up to 30m (98.4 ft) IR distance -Supports 256 G Micro SD card -IP67 protection

IPC3635SS-ADF28KMC-I1 IPC3635SS-ADF40KMC-I1 Camera Sensor 1/2.7", 5.0 megapixel, progressive scan, CMOS Minimum Illumination Colour: 0.001 Lux (F1.0, AGC ON) 0 lux with IR on Day/Night IR-cut filter with auto switch (ICR) Shutter Auto/Manual, 1 ~ 1/100000s Adjustment angle Pan: 0° ~ 360° Tilt: 0° ~ 80° Rotate: 0° ~ 360° WDR 130dB S/N >56dB Lens Lens 2.8mm@F1.0 4.0mm@F1.0 Iris Fixed Field of View (H) 109° 97.5° Field of View (V) 57° 55° Field of View (D) 132.5° 118.5° DORI DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m) 2.8 63.0 25.2 12.6 6.3 4.0 90.0 36.0 18.0 9.0 Illuminator IR Range Up to 30m (98.4 ft) Warm Light Range Up to 30m (98.4 ft) Wavelength 850nm IR On/Off Control Auto/Manual Video Video Compression Ultra 265, H.265, H.264, MJPEG H.264 code profile Baseline profile, Main profile, High profile Frame Rate Main Stream:5MP (2880*1620), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; Sub Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Video Bit Rate 128 Kbps~16 Mbps U-code Support OSD Up to 8 OSDs Privacy Mask Up to 4 areas ROI Up to 8 areas Video Stream Triple streams Image Auto Scene Match (ASM) Support（Only WDR） White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 Digital Noise Reduction 2D/3D DNR Smart IR Support Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise Dewarping N/A HLC Support BLC Support Defog Digital Defog Intelligent Smart intrusion prevention Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection Statistical Analysis People counting, support people flow counting and crowd density monitoring Events Basic Detection Motion detection, Ultra motion detection, Tampering alarm, Audio detection General Function Watermark, IP address filtering, tampering alarm
