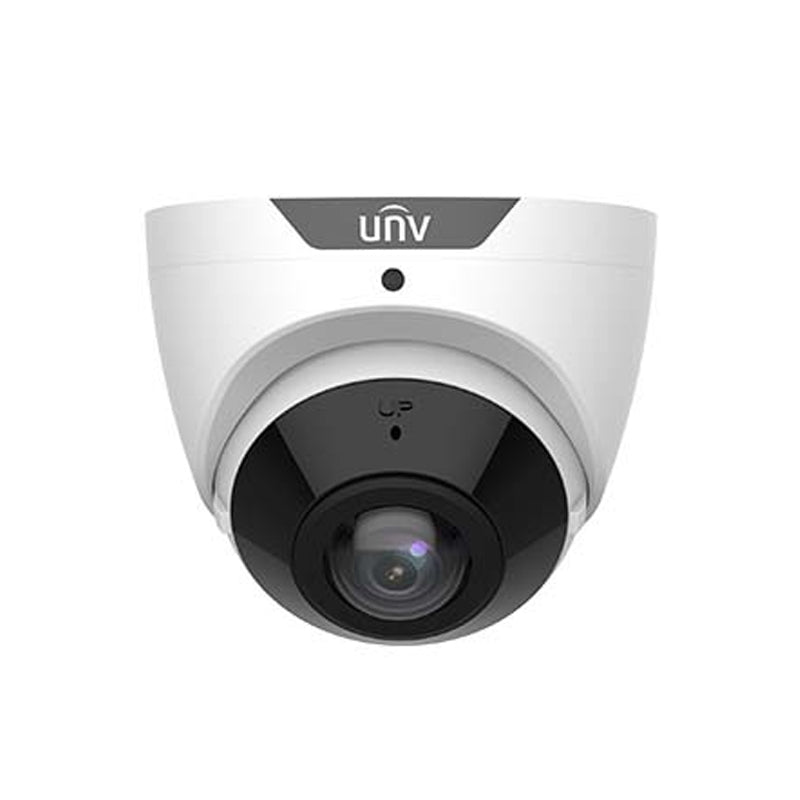

UNV IPC3608SB-ADF16KM-I0 8MP AI Wide Angle Intelligent IR Fixed Eyeball IP Camera

-High quality image with 8MP, 1/2.7"CMOS• sensor -8MP (3840*2160) @30/25fps; 5MP (3072*1728)@30/25fps; 4MP(2560*1440) @30/25fps; 2MP (1920*1080) @30/25fps; -Wide Angle technology realize the horizontal viewing angle of 180° -The dewarp level can be configured in the range of 1-9 -Ultra 265, H.265, H.264, MJPEG -Smart intrusion prevention, include cross line, intrusion, enter area, leave area detection -Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle -120dB true WDR technology enables clear image in strong light scene -Auto Scene Match (ASM)（Only WDR） -Built-in Mic -Smart IR, up to 20m (66ft) IR distance -IP67 protection -IK10 vandal resistant

Camera Sensor 1/2.7", 8.0 megapixel, progressive scan, CMOS Minimum Illumination Colour: 0.01lux (F2.0, AGC ON) 0 lux with IR on Day/Night IR-cut filter with auto switch (ICR) Shutter Auto/Manual, 1 ~ 1/100000s Adjustment angle Pan: 0° ~ 360° Tilt: 0° ~ 75° Rotate: 0° ~ 360° WDR 120dB S/N >52dB Lens Lens 1.68mm@F2.0 Iris Fixed Field of View (H) 180° Field of View (V) 100° Field of View (O) 180° DORI DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m) 1.68 37.8(124.0ft) 15.1(49.6ft) 7.6(24.8ft) 3.8(12.4ft) Illuminator IR Range Up to 20m (66ft) IR range Wavelength 850nm IR On/Off Control Auto/Manual Video Video Compression Ultra 265, H.265, H.264, MJPEG H.264 code profile Baseline profile, Main profile, High profile Frame Rate Main Stream: 8MP (3840*2160), Max 30fps;5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Video Bit Rate 128 Kbps~16Mbps U-code Support OSD Up to 8 OSDs Privacy Mask Up to 4 areas ROI Up to 8 areas Video Stream Triple streams Image Auto Scene Match (ASM) Support（Only WDR） White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 Digital Noise Reduction 2D/3D DNR Smart IR Support Flip Normal/ Flip Vertical/ Flip Horizontals/180° Dewarping Support HLC Support BLC Support Defog Digital Defog Intelligent Smart intrusion prevention Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection Attribute Collection SIP with color retrieval Events Basic Detection Motion detection, Ultra motion detection, Tampering alarm, Audio detection General Function Watermark, IP address filtering, Tampering alarm, Access policy, ARP protection, RTSP authentication, User authentication Audio Audio Compression G.711U, G.711A Audio Bitrate 64 Kbps Two-way audio N/A Suppression Support Sampling Rate 8KHZ Storage Edge Storage Micro SD, up to 256GB Network Storage ANR, NAS(NFS) Network Protocols IPv4,IPv6, I
