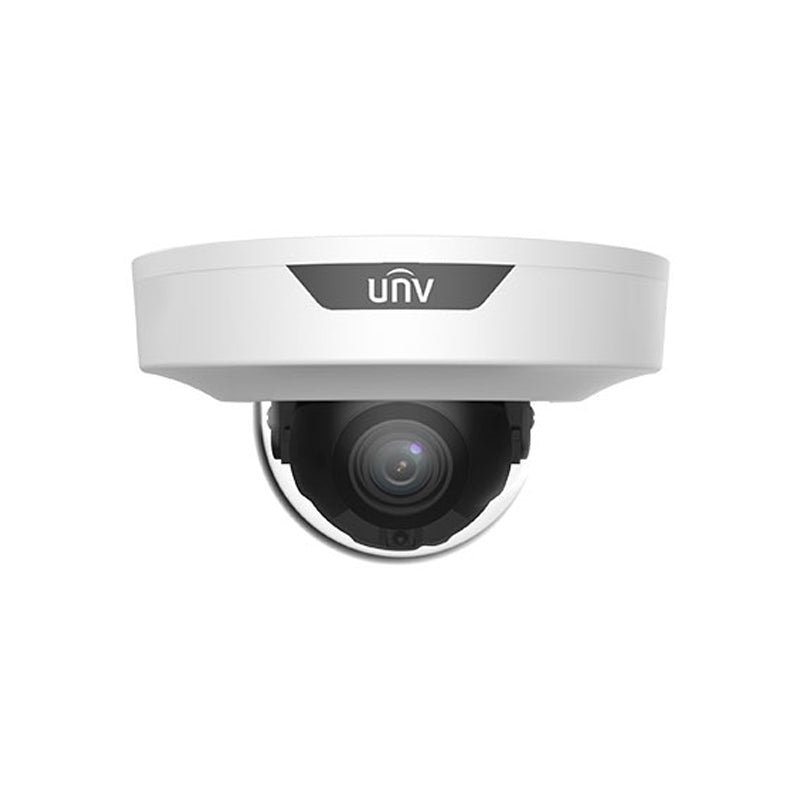

UNV IPC354SB-ADNF28K-I0 AI 4MP Network IR 2.8mm Len Fixed Harness Free Mini Dome Camera

-High quality image with 4MP, 1/2.7"CMOS sensor

-4MP (2688*1520)@ 30/25fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;

-Ultra 265, H.265, H.264, MJPEG

-Smart intrusion prevention, include cross line, intrusion, enter area, leave area detectio

-Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle

-Intelligent People Flow Counting and Crowd Density Monitoring

-120dB true WDR technology enables clear image in strong light scen

-Support 9:16 Corridor Mode

-Built-in Mic

-Smart IR, up to 30m (98 ft) IR distance

-Supports 256 G Micro SD card

-Cable-free

-Support PoE power supply

Camera Sensor 1/2.7", 4.0 megapixel, progressive scan, CMOS Minimum Illumination Colour: 0.002 lux (F1.6, AGC ON) 0 lux with IR Day/Night IR-cut filter with auto switch (ICR) Shutter Auto/Manual, 1 ~ 1/100000s Angle Adjustment Pan: 0° ~ 348° Tilt: -66° ~ 66° Rotate: 0° ~ 346° WDR 120dB S/N >52dB Lens Lens type 2.8mm@F1.6， Iris Fixed Field of View (H) 101.1° Field of View (V) 55.3° Field of View (D) 111.1° DORI DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m) 2.8 63.0 25.2 12.6 6.3 Illuminator IR Range Up to 30m (98ft) IR range Wavelength 850nm IR On/Off Control Auto/Manual Video Video Compression Ultra 265, H.265, H.264, MJPEG H.264 code profile Baseline profile, Main Profile Frame Rate Main Stream: 4MP (2688*1520), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps;1080P(1920*1080),Max30fps Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Video Bit Rate 128 Kbps~16 Mbps U-code Support OSD Up to 8 OSDs Privacy Mask Up to 4 areas ROI Up to 8 areas Video Stream Triple streams Image White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 Digital noise reduction 2D/3D DNR Smart IR Support Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise Dewarping N/A HLC Supported BLC Supported Defog Digital Defog Intelligent Smart intrusion prevention Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection Statistical Analysis People counting, support people flow counting and crowd density monitoring Events Basic Detection Motion detection, tampering alarm, audio detection General Function Watermark, IP address filtering, tampering alarm, access policy, ARP protection, RTSP authentication, user authentication Audio Audio Compression G.711U, G.711A Audio Bitrate 64 Kbps Two-way audio Supported Suppression Supported Sampling Rate 8KHZ Storage Edge Storage Micro SD, up to 256GB Network Storage ANR, NAS(NFS) Network Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, N
