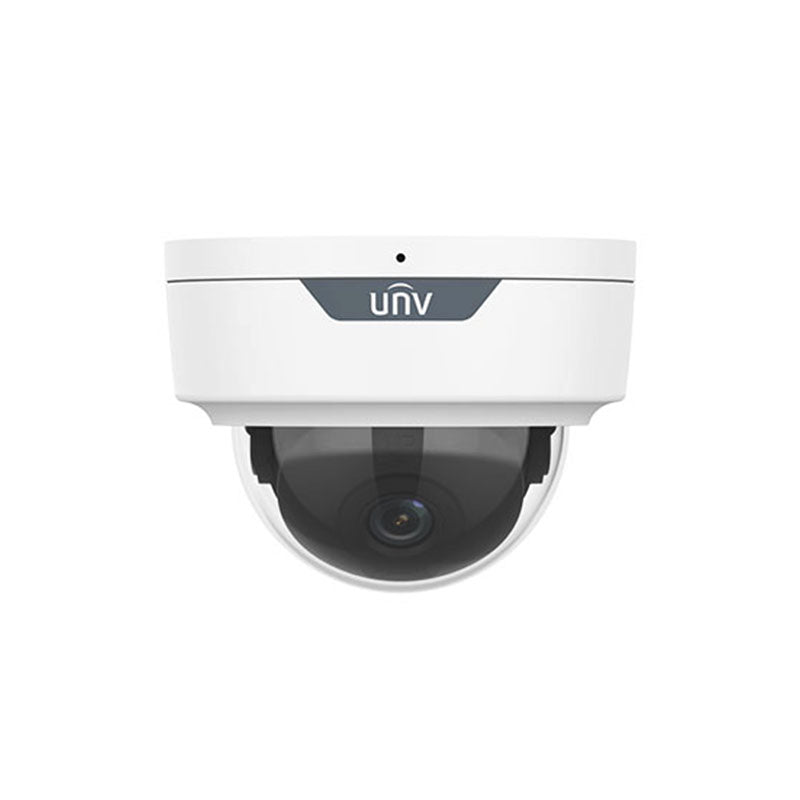

UNV IPC324SR-ADF28(40)KM-H 4MP 2.8mm(4.0mm) Built-in Mic, 1/3"CMOS sensor, IP67 protection, IR Fixed Dome Network Camera

-High quality image with 4MP, 1/3"CMOS sensor

-4MP (2688*1520)@ 30/20fps; 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;

-Ultra 265, H.265, H.264, MJPEG

-Easystar technology ensures high image quality in low illumination environment

-120dB true WDR technology enables clear image in strong light scene

-Support 9:16 Corridor Mode

-Built‑in Mic

-Smart IR, up to 30m (98ft) IR distance

-Supports 512 G Micro SD card

-IK10 vandal resistant

-IP67 protection

-Support PoE power supply

-3‑Axis

Camera Description Max Resolution 4MP Sensor 1/3.0" CMOS Min. Illumination Colour: 0.003 lux ( F1.6, AGC ON) 0 Lux with IR on Day/Night IR‑cut filter with auto switch (ICR) Shutter Auto/Manual, 1 ~ 1/100000s Adjustment Angle Pan: 8° ~ 360°, Tilt: 0° ~ 68°, Rotate: 10° ~ 360° S/N >52dB WDR 120dB Lens Description Focal Length IPC324SR-ADF28KM-H:2.8 mm IPC324SR-ADF40KM-H:4.0 mm Iris Type Fixed Iris F1.6 Field of View (H) IPC324SR-ADF28KM-H:97.0° IPC324SR-ADF40KM-H:79.0° Field of View (V) IPC324SR-ADF28KM-H:52.2° IPC324SR-ADF40KM-H:42.3° Field of View (D) IPC324SR-ADF28KM-H:107.5° IPC324SR-ADF40KM-H:85.1° DORI Description DORI Distance(Lens) IPC324SR-ADF28KM-H:2.8mm IPC324SR-ADF40KM-H:4.0mm DORI Distance(Detect) IPC324SR-ADF28KM-H:63.0m(206.7t) IPC324SR-ADF40KM-H:90.0m(295.3ft) DORI Distance(Observe) IPC324SR-ADF28KM-H:25.2m(82.7ft) IPC324SR-ADF40KM-H:36.0m(118.1ft) DORI Distance(Recognize) IPC324SR-ADF28KM-H:12.6m(41.3ft) IPC324SR-ADF40KM-H:18.0m(59.1ft) DORI Distance(Identify) IPC324SR-ADF28KM-H:6.3m(20.7ft) IPC324SR-ADF40KM-H:9.0m(29.5ft) Illuminator Description Supplemental Light IR Illumination Distance(IR) 30 m (98.4 ft) Wavelength 850 nm IR On/Off Control Auto/Manual Video Description Video Compression Ultra 265; H.265; H.264; MJPEG H.264 Code Profile Baseline profile, Main profile, High profile Frame Rate Main Stream: 4MP (2688*1520), Max 30fps;4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; Video Bit Rate 128 Kbps ~ 6144 Kbps U-code Support OSD Up to 4 OSDs Privacy Mask Up to 4 areas ROI Up to 8 areas Video Stream Dual Streams Image Description White Balance Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2 Digital Noise Reduction 2D/3D DNR Smart IR Support Flip Normal; Flip Vertical; Flip Horizontal; 180°; 90°Clockwise; 90°Anti‑clockwise Dewarping N/A HLC Support BLC Support Defog Digital Defog Events Description Basic Detection Cross Line (based on Human Body Detection); Intrusion (based on Human Body Detection); Motion Detection; Ultra Motion Detection; Tampering Alarm; Audio Detection General Function Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication Audio Description Audio Compression G.711U; G.711A Audio Bitrate 64 Kbps Two-way Audio N/A Suppression Support Sampling Rate 8KHZ Storage Description Edge Storag
