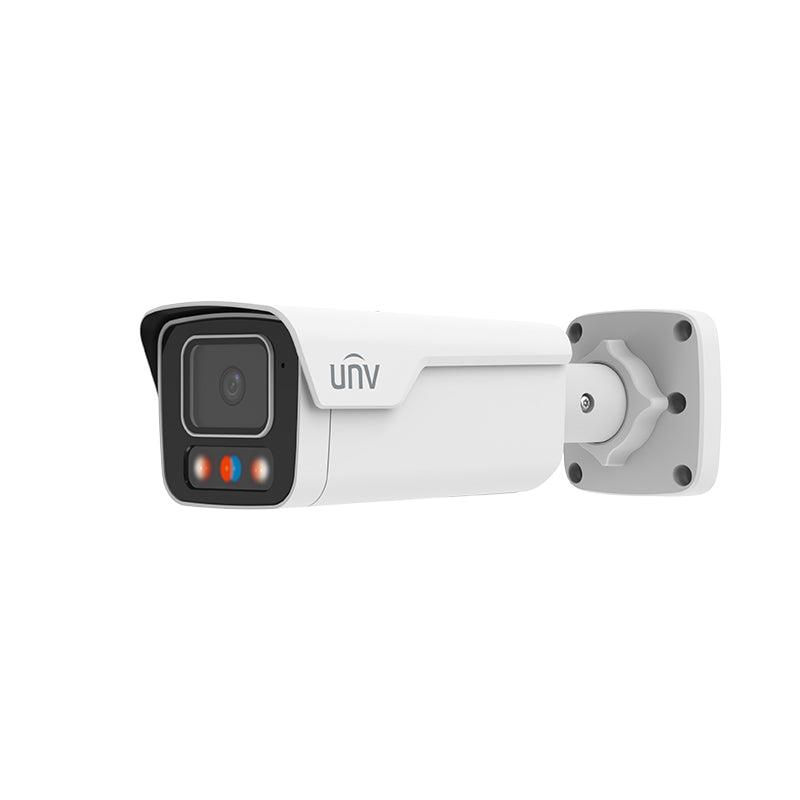

UNV IPC2B18SS-ADF28KMC-I1 4K Tri-Guard 2.0 Colorhunter with Wise ISP Bullet Camera

- High quality image with 8MP, 1/2.8"CMOS sensor

- 8MP (3840*2160)@ 30/25(default)fps; 5MP (3072*1728)@ 30/25fps; 4MP (2560*1440) @30/25fps; 2MP (1920*1080) @30/25fps

- Ultra 265, H.265, H.264, MJPEG

- Intelligent perimeter protection, include cross line, intrusion, enter area, leave area detection

- Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle

- Intelligent People Flow Counting and Crowd Density Monitoring

- Smart intrusion prevention with Color retrieval

- Auto Scene Match (ASM)（Only WDR）

- 130dB true WDR technology enables clear image in strong light scene

- Support red & blue warning light

- Support 9:16 Corridor Mode

- Alarm:1 in/1 out, Audio: 1 in/1 out, Built-in Mic and Speaker

- Smart IR, up to 40m (131 ft) IR distance

- Supports 512 G Micro SD card

- IP67 protection

Model IPC2B18SS-ADF28KMC-I1 IPC2B18SS-ADF40KMC-I1 Camera Max Resolution 8 MP Sensor 1/2.8" CMOS Min. Illumination Colour: 0.001 lux ( F1.0, AGC ON) 0 Lux with light Day/Night IR-cut filter with auto switch (ICR) Shutter Auto/Manual, 1 ~ 1/100000s Adjustment Angle Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360° S/N >56 dB WDR 130 dB Lens Focal Length 2.8 mm 4.0 mm Iris Type Fixed Iris F1.0 Field of View (H) 106.5° 92° Field of View (V) 57.9° 51° Field of View (D) 132° 106° DORI DORI Distance (Lens) 2.8mm 4.0mm DORI Distance (Detect) 86.9m(285.1ft) 124.1m(407.2ft) DORI Distance (Observe) 34.8m(114.2ft) 49.7m(163.1ft) DORI Distance (Recognize) 17.4m(57.1ft) 24.8m(81.4ft) DORI Distance (Identify) 8.7m(28.5ft) 12.4m(40.7ft) Illuminator Supplemental Light Dual light Illumination Distance (IR) IR 40 m, Warm Light 40 m Illumination Distance (Warm Light) IR 40 m, Warm Light 40 m IR On/Off Control Auto/Manual Wavelength 850 nm Light On/Off Control Auto/Manual Video Video Compression Ultra 265, H.265, H.264, MJPEG H.264 Code Profile Baseline profile, Main profile, High profile Frame Rate Main Stream:8MP (3840*2160), Max 30fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps Video Bit Rate 128 Kbps to 16 Mbps U-code Support OSD Up to 8 OSDs Privacy Mask Up to 4 areas ROI Support Video Stream Triple Streams Image White Balance Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 Digital Noise Reduction 2D/3D DNR Smart IR Support Auto Scene Match (ASM) Support (Only WDR) Flip Normal, Vertical, Horizontal, 180°, 90° Clockwise, 90° Anti-clockwise Dewarping N/A HLC Support BLC Support Defog Digital Defog Intelligent Smart Intrusion Prevention Cross line detection, intrusion detection, enter area detection, leave area de
