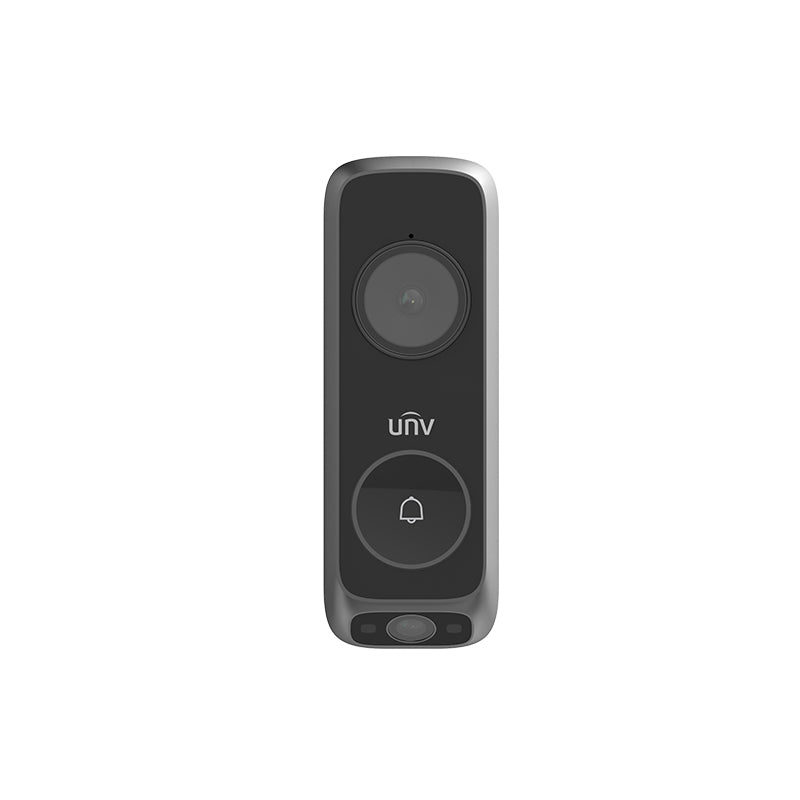

UNV ED-525B-WB 3 MP+2 MP DualLens Video Dual-Band Wi-Fi Smart Doorbell with Package Detection

The UNV ED-525B-WB video doorbell is equipped with two highdefinition ultrawideangle lenses to provide a broad view of your front yard. The device supports motion detection, package detection, and human body detection, meeting your daily home security needs. The doorbell can also call the UNVLink app, allowing you to answer visitor calls anytime, anywhere.

- Supports mechanical chime and wireless chime.

- Supports connection to a Uniview NVR for live view, playback, and alarm search.

- Supports reporting motion detection alarms, human body detection alarms, and package detection alarms to UNVLink and NVR.

- 3 MP + 2 MP dual cameras: The main camera for observing visitors, and the sub camera for monitoring the ground in front of the door, providing a wider view.

- Supports noise suppression.

- Supports true HDR and WDR, capturing clearer images in backlit scenes.

- Supports calling the UNVLink app, allows you to answer visitor calls anytime, anywhere using the app.

- Supports Sub1GHz wireless chime.

- Supports dualband WiFi (2.4 GHz and 5 GHz) and WiFi 6, faster video streaming and realtime monitoring.

- Supports network connection through Bluetooth, quick and simple.

- Builtin 8 GB eMMC storage, no extra storage costs necessary.

Model

ED525BWB

Camera

Resolution  main camera

3MP

Resolution  sub camera

2MP

FOV  main camera

Horizontal: 116°

Vertical: 82.5°  Diagonal: 131°

FOV  sub camera

Horizontal: 96.8°

Vertical: 52.6°  Diagonal: 109.9°

Power kit

power kit

240 mAH rechargeable lithium battery (for mechanical chime)

Charge temperature

0 °C to 45 °C

Alarm Event

Motion detection alarm

Support

UMD alarm

Supports human body detection alarm

Package detection alarm

Support

WiFi

Operating frequency band

2.4 GHz and 5G Hz

BLE function

Compatible, integrated BLE, supports network connection via Bluetooth

Antenna type

Builtin omnidirectional antenna

WLAN

802.11 b/g/n/ax

Encryption

WPAPSK/WPA2PSK/WPA3personal

Bluetooth

Support, integrated in WiFi chip

SUB1G

SUB1G

Supported, for chime connection

Chimes

Max. 3 wireless chimes or 1 mechanical chime

Interface

Reset button

1 micro switch for both pairing and reset

Builtin Mic

Support

Builtin speaker

Support

Interface protocol

UNV private protocol

Network protocol

TCP/IP, IPv4, HTTP, RTP, RTSP, NTP

Illuminator

Illumination scheme

IR + white light

Illumination distance

IR: 5 meters

White light: 2 meters

Min. Illumination

0.02 lux

General

Dimensions

55.8 mm × 156.5 mm × 27.9 mm

Weight

Net weight: 142g

Gross weight: 295g

Power consumption

10W

Installation method

With bracket installation, the power cable is installed on the bracket, and the doorbell is con
