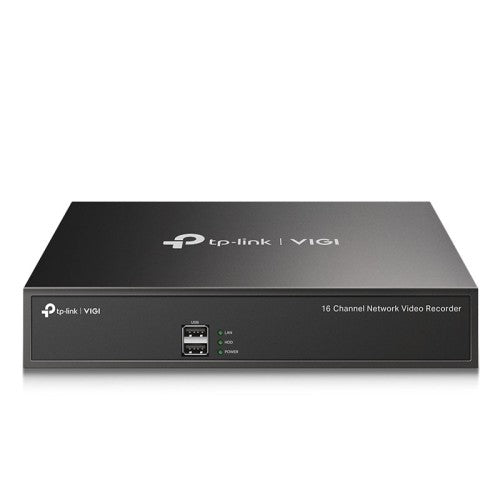

TPLINK VIGI NVR1016H 16 Channel Non-POE Network Video Recorder

24/7 Continuous Recording: Stores up to 10 TB of footage from connected cameras to secure your data for quick, convenient access. 16-Channel Real-Time Live View: Sharp image definition up to 8MP and a 16-channel display ensures you capture every detail, from every angle. Quick Lookup and Playback: Find the target footage easily by date, event types, and tags. Replay with variable playback speeds to quickly review footage. Remote Monitoring: Dedicated VIGI app is developed for remote monitoring, providing ease and convenience. H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality. ONVIF Ensure Compatibility*: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility. 1 HDD Interface (up to 10 TB)†: Stores up to 10 TB (720 days△ of video) on a SATA hard drive, keeping your data storage secured locally. Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.

Video and Audio

IP Video Input 16-Channel Incoming Bandwidth 80 Mbps Outgoing Bandwidth 60 Mbps HDMI Output Resolution 1 Channel, Resolution: 3840 ×2160/30Hz, 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz VGA Output Resolution 1 Channel, Resolution: 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz Video Output Mode HDMI/VGA Simultaneous Output Multi-View Display 1/4/6/8/9/16

DECODING

Audio Compression G.711A/G.711U/G.726 Decoding Format H.265+/H.265/ H.264+/H.264 Video Compression H.265+/H.265/ H.264+/H.264 Record Resolution 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF Live View/Playback Resolution 8 MP/5 MP/ 4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF Synchronous Playback 16-Channel Capability 2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP

Record Management

Record Mode • Manual Recording • Scheduling Recording • Motion Detection Recording Playback Mode • Instant Playback • Regular Playback • Tag Playback • Event Playback Backup Mode • Regular Backup • Video Clip Backup Playback Function • Play • Pause • Stop • Fast Forward • Fast Backward • Play By Frame • Full Screen • Video Clip • Export Clip • Digital Zoom • Lock Recording • Audio On/Off

NETWORK

Protocol TCP/IP, DHCP, DNS, NTP, UPnP Mobile Phone Access Android, iOS Incoming Bandwith 80 Mbps Outgoing Bandwidth 60 Mbps Web Browser Chrome (57+), Firefox (52+), Edge (91+) Interoperability ONVIF, CGI

External Interface

Network Interface 1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface USB Interface 2× USB 2.0 Audio Interface 1, Audio In; 1, Audio Out Alarm In/Out N/A Serial Interface N/A Power 1× DC Jack Reset Button 1 Speaker N/A eSATA N/A HDMI 1 VGA 1

HARD DISK

SATA 1 SATA Interface Capacity Up to 10 TB

Alarm

General Alarm • Motion Detection •
