- Gigabit Internet Access: One PON port and one gigabit LAN port provide fast transfer speeds.
- XPON Support: EPON + GPON dual mode offers greater flexibility for fiber internet access.
- Ease of Use: Quick and hassle-free installation with easy setup.
- Remote Management: Supports the OMCI (ONU Management Control Interface) protocol for centralized configuration and management.
| HARDWARE FEATURES | |
|---|---|
| External Power Supply | 9VDC/0.6A |

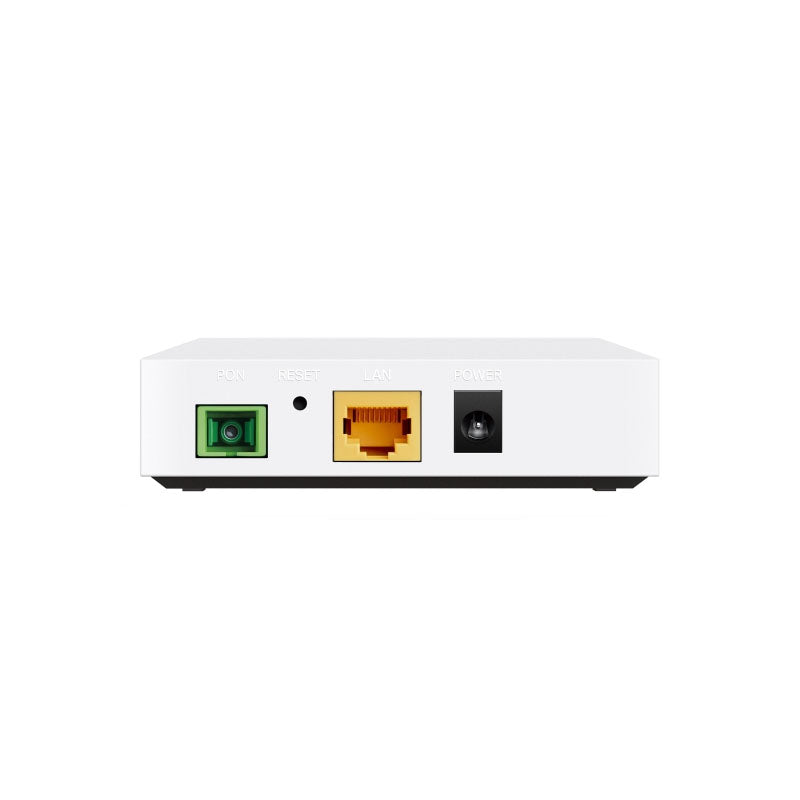

| Interface | 1× PON Port 1× GbE LAN Port |
| Button | Reset Button |
| Dimensions ( W x D x H ) | 3.7 × 3.0 × 1.2 in (95.0 × 75.0 × 29.3 mm) |
| IEEE Standards | IEEE 802.3, 802.3u, 802.1p, 802.1Q |
| Data Rates | Downstream Speeds: 2.488 Gbps (GPON), 1.25 Gbps (EPON)* Upstream Speeds: 1.244 Gbps (GPON), 1.25 Gbps (EPON)* |
| Optical Module | Class B+ |
| Transmitter | DFB Laser |
| Receiver | Super-TIA |
| Distance | 0–20 Km Max |
| GPON Standards | ITU-T G.988, G.984.1, G.984.2, G.984.3, G.984.4 |
| Wave Length | Upstream: 1310 nm Downstream: 1490 nm |
| SOFTWARE FEATURES | |
|---|---|
| Management Features | Local management: WebGUI, Telnet Remote management: OMCI |
| Security | AES Encryption, Packet Filter based on VLAN |
| Advanced Features | Upstream and Downstream FEC Dynamic Bandwidth Allocation(DBA) support NSR/SR Up to 16 T-CONTs and 256 GEM Ports Optical power detection Dying Gasp Terminal Silent mechanism |
| VLAN | 802.1Q tag VLAN, VLAN transparent mode/VLAN translation mode/VLAN trunk mode, Authentication based on SN and Password, VLAN Auto Detect |
| IGMP | IGMP v1/v2/v3 |
| OTHERS | |
|---|---|
| Package Content | XPON Terminal XZ000-G6 Power Adapter Quick Installation Guide |
| Environment | Operating Temperature: 0℃–40℃ (32℉–104℉) Storage Temperature: -40℃–60℃ (-40℉–140℉) Operating Humidity: 10%–90% non-condensing Storage Humidity: 5%–90% non-condensing |
| Certifications | CE, RoHS |
