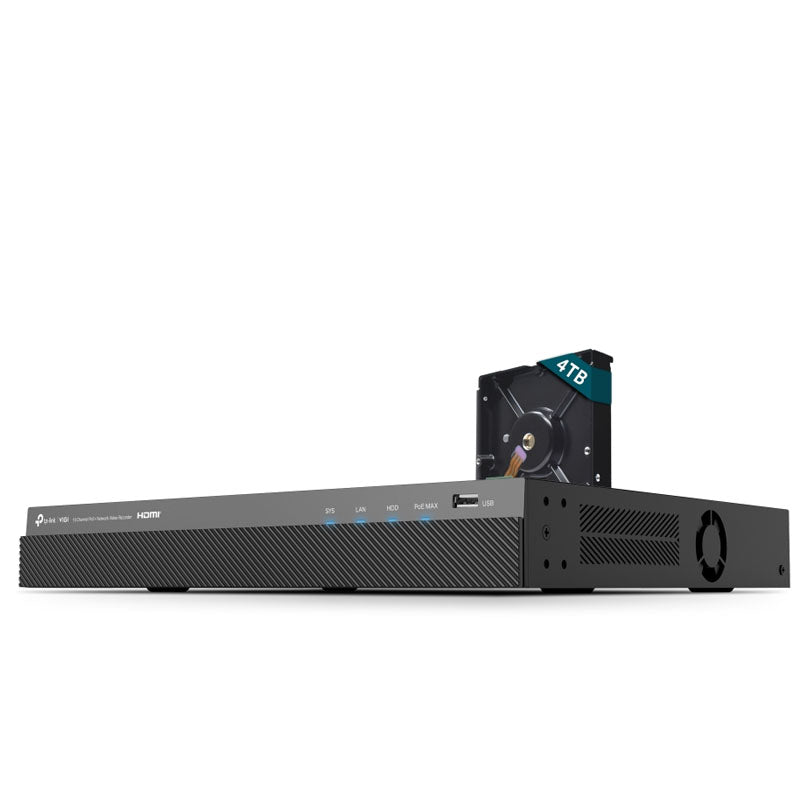

TP-Link VIGI NVR2016H-16MP-4TB 16 Channel PoE+ Network Video Recorder

Video and Audio IP Video Input 16-Channel Incoming Bandwidth 80 Mbps Outgoing Bandwidth 60 Mbps HDMI Output Resolution 1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz VGA Output Resolution 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz Video Output Mode HDMI/VGA Simultaneous Output Multi-View Display 1/4/6/8/9/16 DECODING Audio Compression G.711A/G.711U/G.726 Video Compression H.265+/H.265/ H.264+/H.264 Record Resolution 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF Synchronous Playback 16-Channel† Capability • 25fps: 2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP

• 30fps: 4-ch @ 3MP, 2-ch @ 5MP Record Management Record Mode • Manual Recording • Scheduling Recording • Motion Detection Recording Playback Mode • Instant Playback • Regular Playback • Tag Playback • Event Playback Backup Mode • Regular Backup • Video Clip Backup Playback Function • Play • Pause • Stop • Fast Forward • Fast Backward • Play By Frame • Full Screen • Video Clip • Export Clip • Digital Zoom • Lock Recording • Audio On/Off NETWORK Protocol UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP Mobile Phone Access Android, iOS Web Browser Chrome (57+), Firefox (52+), Edge (91+) Interoperability ONVIF Profile S/T, CGI External Interface Network Interface 1, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface USB Interface 1 Front USB 2.0 Port, 1 Rear USB 2.0 Port Audio Interface 1-ch RCA Input; 1-ch RCA Output Alarm In/Out N/A Serial Interface N/A Power 1× DC Jack Reset Button 1 Speaker N/A eSATA 1 HDMI 1 VGA 1 HARD DISK SATA 2 SATA Interfaces Capacity • Up to 16 TB Capacity for Each HDD • 1 × 4TB HDD Preinstalled PoE Standard 802.3at/af Compliant Interface 1-16, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface PoE Budget 140 W△ Available for All PoE+ Ports, 30 W Max per Port Alarm General Alarm • Motion Detection • Video Tampering • Scene Change Detection • Line-Crossing Detection • Intrusion Detection • Region Entering Detection • Region Exiting Detection • Loitering Detection • Object Abandoned/Removal Detection • Vehicle Detection • Human Detection • Abnormal Sound Detection • Smart Frame Note: The alarm function requires the use of a camera. Anomaly Alarm • Video Loss • Offline and IP Conflict • Disk Exception • Login Exception • Fan Exception Note: The alarm function requires the use of a camera. Alarm Linkage • Recording • White Light Alarm • Buzzer • Log • Audible Alarm Note: The alarm function requires the use of a camera. GENERAL Storage Temperature -40–70 °C Storage Humidity 10%~90% RH Non-Condensing Package Content • VIGI Network Video Recorder • Power Adapter • Power Cables • HDD Power Cables • HDD Data Cables • Mounting Accessories • Mouse • Quick Installation Guide Working Temperature • NVR: -10–55 °C • Power Adapter: 0–40 °C Working Humidity 10%~90% RH Non-Condensi
