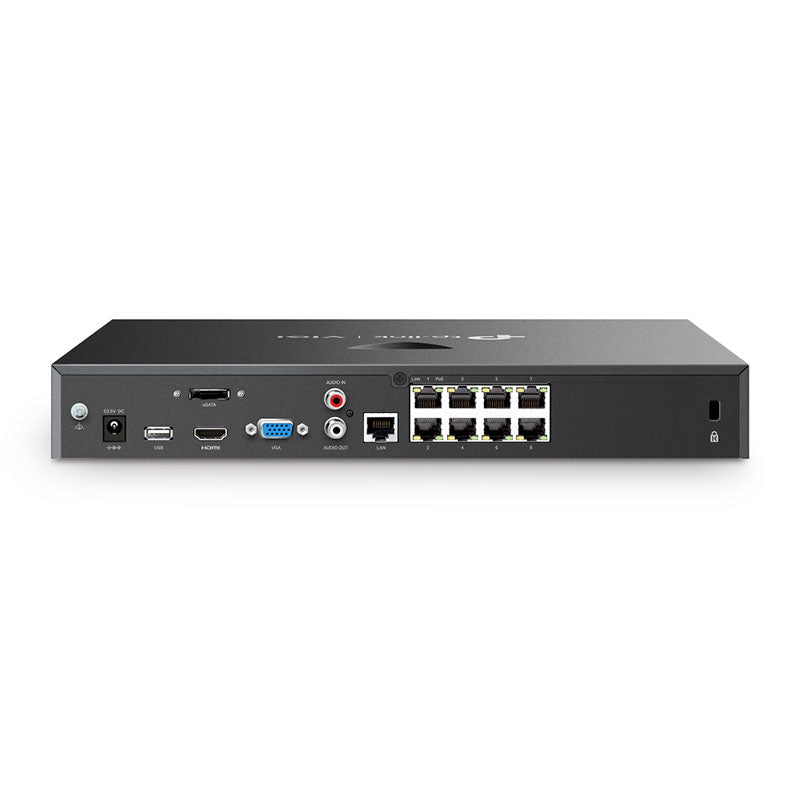

TP-Link VIGI NVR2008H-8MP 8 Channel 4K PoE+ Network Video Recorder

8-Channel Live View and 4K HDMI Video Output 8× 10/100 Mbps PoE+ Ports with 90 W PoE Budget*1 Up to 8-ch @ 4MP / 4-ch @ 8MP Decoding Capability 8-Channel Synchronous Playback*2 160 Mbps Incoming Bandwidth and 160 Mbps Outgoing Bandwidth 2× SATA Interfaces and 1 Up to 16 TB*3 H.265+ Compression Technology HDMI and VGA Independent / Simultaneous Output Remote Monitoring

Intelligent Analytics AI by NVR • Motion Detection • Line Crossing Detection • Intrusion Detection Note: Enhanced with Human & Vehicle Classification for more accurate alerts

Number of Channels • Up to 4-ch Simultaneous Output AI by Camera • People & Vehicle Attributes Analytics • Motion Detection • Intrusion Detection • Line-Crossing Detection • Region Entering Detection • Region Exiting Detection • Object Abandoned Detection • Object Removal Detection • Loitering Detection • People Detection • Vehicle Detection • Abnormal Sound Detection • Scene Change Detection Note: Enhanced with Human & Vehicle Classification for more accurate alerts Video and Audio IP Video Input 8-Channel Incoming Bandwidth 160 Mbps Outgoing Bandwidth 160 Mbps HDMI Output Resolution 1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz VGA Output Resolution 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz Video Output Mode HDMI and VGA Independent / Simultaneous Output Multi-View Display 1/4/6/8/9 DECODING Audio Compression G.711A/G.711U/G.726 Video Compression H.265+/H.265/ H.264+/H.264 Record Resolution 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF Synchronous Playback 8-Channel*2 Capability • 30fps: 4-ch @ 8MP, 6-ch @ 5MP, 8-ch @ 4MP Record Management Record Mode • Manual Recording • Scheduling Recording • Motion Detection Recording Playback Mode • Instant Playback • Regular Playback • Tag Playback • Event Playback Backup Mode • Regular Backup • Video Clip Backup Playback Function • Play • Pause • Stop • Fast Forward • Fast Backward • Play By Frame • Full Screen • Video Clip • Export Clip • Digital Zoom • Lock Recording • Audio On/Off NETWORK Protocol UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP, FTP/SFTP, IPv6, SNMP Mobile Phone Access Android, iOS Web Browser Chrome (57+), Firefox (52+), Edge (91+), Safari (11+) Interoperability ONVIF Profile G/S/T, CGI External Interface Network Interface 1, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface USB Interface 1 Front USB 2.0 Port, 1 Rear USB 3.0 Port Audio Interface 1-ch RCA Input; 1-ch RCA Output Alarm In/Out 6/4 Serial Interface N/A Power 1× DC Jack Reset Button 1 Speaker N/A eSATA 1 HDMI 1 VGA 1 HARD DISK SATA 2 SATA Interfaces Capacity Up to 16 TB Capacity for Each HDD*3 PoE Standard 802.3at/af Compliant Interface 8, RJ-45 10/100 Mbps PoE+ Ports PoE Budget 90 W*1 Available for All PoE+ Ports, 30 W Max per Port Alarm General Alarm • Motion Det
