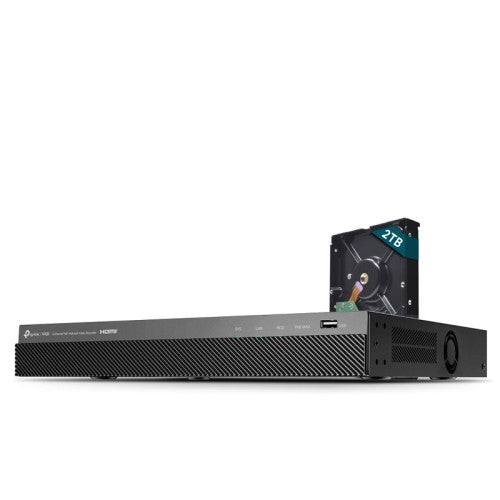

TP-LINK VIGI NVR2008H-8MP-2TB 8 Channel PoE+ Network Video Recorder

8-Channel Live View and 4K HDMI Video Output 8× 10/100 Mbps PoE+ Ports with 93 W PoE Budget△ Up to 8-ch @ 2MP (25fps) / 4-ch @ 4MP (25fps) Decoding Capability 8-Channel Synchronous Playback† 80 Mbps Incoming Bandwidth and 60 Mbps Outgoing Bandwidth 2× SATA Interfaces and 1 Up to 16 TB (1× 2TB HDD Preinstalled) H.265+ Compression Technology HDMI and VGA Simultaneous Output Remote Monitoring Video and Audio IP Video Input 8-Channel Incoming Bandwidth 80 Mbps Outgoing Bandwidth 60 Mbps HDMI Output Resolution 1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz VGA Output Resolution 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz Video Output Mode HDMI/VGA Simultaneous Output Multi-View Display 1/4/6/8 DECODING Audio Compression G.711A/G.711U/G.726 Video Compression H.265+/H.265/ H.264+/H.264 Record Resolution 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF Synchronous Playback 8-Channel† Capability • 25fps: 2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP

• 30fps: 4-ch @ 3MP, 2-ch @ 5MP Record Management Record Mode • Manual Recording • Scheduling Recording • Motion Detection Recording Playback Mode • Instant Playback • Regular Playback • Tag Playback • Event Playback Backup Mode • Regular Backup • Video Clip Backup Playback Function • Play • Pause • Stop • Fast Forward • Fast Backward • Play By Frame • Full Screen • Video Clip • Export Clip • Digital Zoom • Lock Recording • Audio On/Off NETWORK Protocol UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP Mobile Phone Access Android, iOS Web Browser Chrome (57+), Firefox (52+), Edge (91+) Interoperability ONVIF Profile S/T, CGI External Interface Network Interface 1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface USB Interface 1 Front USB 2.0 Port, 1 Rear USB 2.0 Port Audio Interface 1-ch RCA Input; 1-ch RCA Output Alarm In/Out N/A Serial Interface N/A Power 1× DC Jack Reset Button 1 Speaker N/A eSATA 1 HDMI 1 VGA 1 HARD DISK SATA 2 SATA Interfaces Capacity • Up to 16 TB Capacity for Each HDD • 1 × 2TB HDD Preinstalled PoE Standard 802.3at/af Compliant Interface 1-8, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface PoE Budget 93 W△ Available for All PoE+ Ports, 30 W Max per Port Alarm General Alarm • Motion Detection • Video Tampering • Scene Change Detection • Line-Crossing Detection • Intrusion Detection • Region Entering Detection • Region Exiting Detection • Loitering Detection • Object Abandoned/Removal Detection • Vehicle Detection • Human Detection • Abnormal Sound Detection • Smart Frame Note: The alarm function requires the use of a camera.​ Anomaly Alarm • Video Loss • Offline and IP Conflict • Disk Exception • Login Exception • Fan Exception Note: The alarm function requires the use of a camera.​ Alarm Linkage • Recording • White Light Alarm • Buzzer • Log • Audible Alarm Note: The alarm function requ
