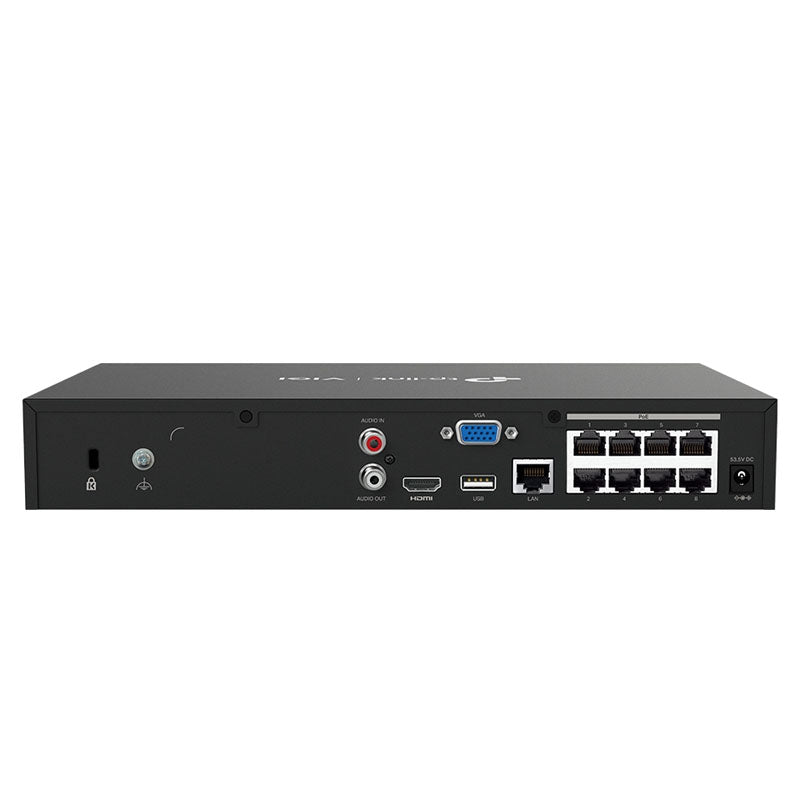

TP-Link VIGI NVR1008H-8P 8 Channel PoE+ Network Video Recorder

4K HDMI Video Output & 16MP Decoding Capacity:  Sharp image definition up to 8MP and an 8-channel display ensures you capture every detail, from every angle‡. Simplified Deployment with PoE+: Easily connect and power your PoE camera with one RJ45 cable transmitting both data and power. No power adapter needed. 8-Channel Simultaneous Playback*: Replay the feed from up to 8 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage. H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality. ONVIF Ensures Compatibility△: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility. Plug & Play: Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before. 24/7 Continuous Recording: Stores up to 10 TB of footage from connected cameras to secure your data for quick, convenient access. Remote Monitoring: The dedicated VIGI app, web UI, and VIGI Security Manager enable remote monitoring, providing ease and convenience. Flexible Installation: Choose the suitable installation method by simply housing your NVR on a rack, or placing it on or under a desk for greater convenience. Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.

DECODING Decoding Format H.265+/H.265/ H.264+/H.264 Live View/Playback Resolution 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/ DCIF/2CIF/CIF/QCIF Synchronous Playback 8 Channel Capability • 25fps: 2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP

• 30fps: 4-ch @ 3MP, 2-ch @ 5MP NETWORK Protocol TCP/IP, DHCP, DNS, NTP, UPnP Incoming Bandwith 80 Mbps Outgoing Bandwidth 60 Mbps HARD DISK SATA 1 SATA Interface Capacity Up to 10 TB INTERFACES Network Interface 1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface USB Interface 2× USB 2.0 GENERAL Operating Temperature -10–55 °C Package Contents • VIGI Network Video Recorder • Power Adapter • HDD Screws • Mouse • Mounting Brackets & Rubber Feet • Quick Installation Guide Dimensions( W X D X H ) 294 × 180 × 44 mm PoE Standard: 802.3af/at PoE Ports: Ports 1-8 PoE Budget: 53 W External Power Supply 53.5V DC/1.31 A Power Consumption 2.38 W (without disk) 12.94 W (with disk) VIDEO/IMAGE Video Input 8-Channel IP Video Input, up to 8 MP Resolution Recording Resolution 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF HDMI Output Resolution 1 Channel, Resolution: 3840x2160/30Hz,1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1024x768/60Hz, 1280x720/60Hz VGA Output Resolution 1 Channel, Resolution: 1920x1080/60Hz,1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz,
