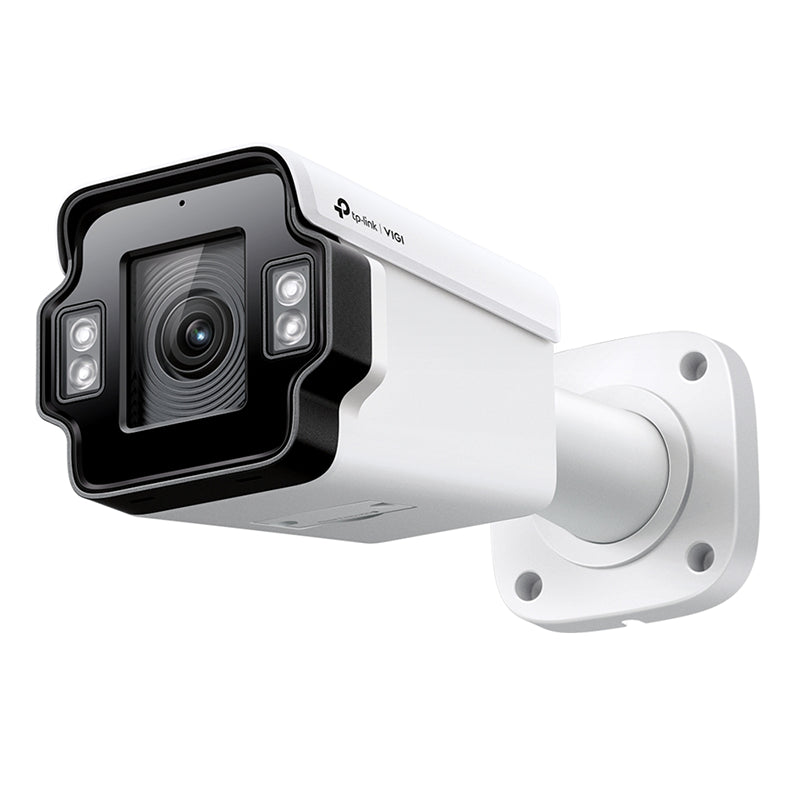

TP-Link VIGI INSIGHT S345ZI 2.7MM~13.5MM 4MP Outdoor IR Motorized Varifocal Bullet Network Camera

5X Optical Zoom for Easy Installation and Monitoring 4MP Super-High Definition and IR Range Up to 60m (197ft) Human & Vehicle Classification Smart Detection Smart Video Enhancement Technology Audio and Alarm Interface Available IP67 Weatherproof and IK10 Vandal Proof H.265+ Compression Technology CAMERA Image Sensor 1/2.9” Progressive Scan CMOS Shutter Speed 1/3 to 1/10000 s Slow Shutter Yes Minimum Illumination 0.005 Lux; 0 Lux with IR Light Day/Night Mechanism IR Cut Filter Day/Night Switch Unified/ Scheduled/ Auto LENS Type Motorized Varifocal Lens Focal Length 2.7-13.5 mm (5X Optical Zoom) Aperture F1.6 FOV 2.7-13.5 mm: • Horizontal FOV: 29.6°-102.0° • Vertical FOV: 16.8°-53.8° • Diagonal FOV: 34.1°-122.8° Lens Mount Φ14 DORI Distance 2.7-13.5 mm: • Detect: 66-207 m (217-579 ft) • Observe: 28-86 m (92-282 ft) • Recognize: 13-41 m (43-135 ft) • Identify: 7-21 m (23-69 ft) Angle Adjustment (Manual) Range Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360° ILLUMINATOR IR LED • Quantity: 4 • Range: 60m (197ft) • Wavelength: 850nm Illuminator On/Off Control Auto/Scheduled/Always on/Always off VIDEO Max. Resolution 2688 x 1520 Main Stream • Frame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

• Resolution: 2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080

Note: • If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. Sub-Stream • Frame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

• Resolution: 1280x720, 848x480, 704x576, 640x480, 640x360, 352x288, 320x240

• Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. Bit Rate Control CBR, VBR Video Compression • Main Stream: H.265+/H.265/H.264+/H.264 • Sub-Stream: H.265/H.264 H.264 Type High Profile H.264+ Main Stream Supported H.265 Type Main Profile H.265+ Main Stream Supported Video Bit Rate • Main Stream: 256 Kbps to 6 Mbps • Sub-Stream: 512 Kbps to 1024 Kbps Image Image Settings • Mirror • Brightness • Contrast • Saturation • Sharpness • Exposure • WDR • White Balance • Prevent Overexposure to Infrared Light • HLC Adjustable by Client Software Image Enhancement BLC/3D DNR/HLC/SmartIR Wide Dynamic Range 120 dB SNR ≥ 52 dB Image Parameters Switch Yes Privacy Mask Up to 4 Masks ROI 1 Region OSD Setting Yes AUDIO Audio Communication One-Way Audio Audio Input Yes Audio Output Yes Audio Compression Yes Audio Sampling Rate 8KHz Environment Noise Filtering Yes Audio Bit Rate 64 Kbps(G.711 alaw) NETWORK Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP ONVIF Yes API Open Network Video Interface (Profile S/T/G) Simultaneous Live View 3 Main Streams & 3 Sub-Streams Client VIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS Web Browser • Google Chrome® 57 and above • Firefox® 52 and above • Safari® 11 and above • Microsoft® Edge 91 and above Cl
