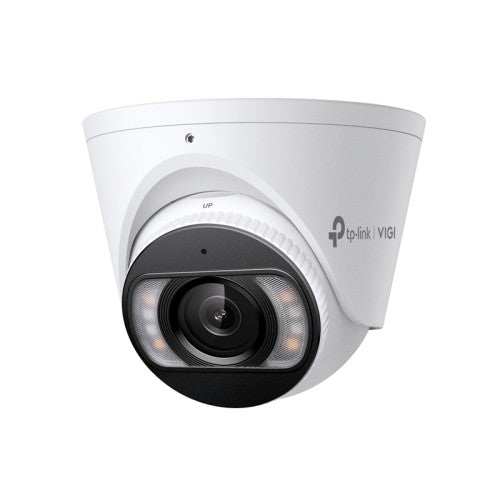

TP-Link VIGI C485 4K/8MP Full-Color 2.8mm AI Turret Network Camera with Two-Way Audio

-4K (8MP) Ultra HD and 24h Full-Color

-People & Vehicle Analytics

-Human & Vehicle Classification

-Smart Detection

-Smart Video Enhancement Technology

-Active Defense and Two-Way Audio

-IP67 Waterproof

-H.265+ Compression Technology

CAMERA Image Sensor 1/2.7” Progressive Scan CMOS Shutter Speed 1/3 to 1/10000 s Slow Shutter Yes Minimum Illumination 0.005 Lux; 0 Lux with IR/White light Day/Night Mechanism IR Cut Filter Day/Night Switch Unified/ Scheduled/ Auto LENS Type Fixed Focal Lens Focal Length 2.8 Aperture F1.6 FOV • 2.8 mm: Horizontal FOV: 111.4°, Vertical FOV: 58.8°, Diagonal FOV: 134° Lens Mount M12*P 0.5 DORI Distance • 2.8 mm Detect: 64 m (210 ft) Observe: 27 m (89 ft) Recognize: 13 m (43 ft) Identify: 6 m (20 ft) ANGLE ADJUSTMENT (MANUAL) Range Pan: 0° to 360°, Tilt: 0° to 85°, Rotation: 0° to 360° ILLUMINATOR IR LED • Quantity: 4 • Range: 30m • Wavelength: 850nm White LED • Quantity: 4 • Range: 30m Illuminator On/Off Control Auto/Scheduled/Always on/Always off VIDEO Max. Resolution 3840 X 2160 Main Stream • Frame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

• Resolution: 2880x1620,2688x1520, 2304x1296, 2048x1280, 1920x1080, 1280x720

Note: • If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. Sub-Stream Frame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution: 3840x2160, 2560x1440, 2304x1296, 2048x1280,1280x720

Note: • If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. Bit Rate Control CBR, VBR Video Compression • Main Stream: H.265+/H.265/H.264+/H.264 • Sub-Stream: H.265/H.264 H.264 Type High Profile H.264+ Main Stream Supported H.265 Type Main Profile* H.265+ Main Stream Supported* Video Bit Rate • Main Stream: 256 Kbps to 6 Mbps • Sub-Stream: 64 Kbps to 512 Kbps IMAGE Image Settings • Mirror • Brightness • Contrast • Saturation • Sharpness • Exposure • WDR • White Balance • Prevent Overexposure to Infrared Light • HLC Adjustable by Client Software Image Enhancement BLC/3D DNR/HLC/SmartIR Wide Dynamic Range 120 dB

Note: When People & Vehicle Analytics is enabled, only DWDR is supported. SNR ≥ 52 dB Image Parameters Switch Yes Privacy Mask Up to 4 Masks ROI 1 Region OSD Setting Yes AUDIO Audio Communication Two-Way Audio Audio Input Yes Audio Output Yes Audio Compression Yes Audio Sampling Rate 8KHz Environment Noise Filtering Yes Audio Bit Rate 64 Kbps(G.711 alaw) NETWORK Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS ONVIF Yes API Open Network Video Interface (Profile S) Simultaneous Live View 3 Main Streams & 3 Sub-Streams Client VIGI App, VIGI Security Manager, Web UI, VIGI VMS Web Browser • Google Chrome® 57 and above • Firefox® 52 and above • Safari® 11 and above • Microsoft® Edge 91 and above Cloud Yes Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication ALA
