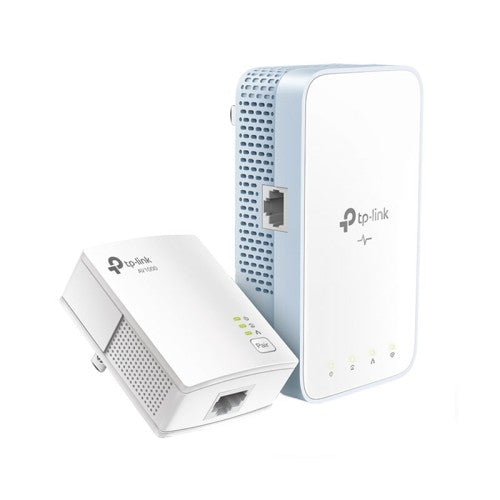

TP-Link TL-WPA7517 KIT AV1000 Gigabit Powerline ac Wi-Fi Kit

HARDWARE FEATURES Transmission Speeds Powerline: Up to 1000 Mbps Ethernet: 10/100/1000 Mbps Standards and Protocols HomePlug AV2, HomePlug AV, IEEE 1901, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.11b/g/n (2.4GHz), IEEE 802.11a/n/ac (5GHz) Compatibility Compatible with all HomePlug AV & AV2 standard powerline adapters Plug Type US Interface TL-WPA7517: 1 Ethernet Port TL-PA7017: 1 Ethernet Port Button Pair, Reset, Wi-Fi Clone, LED On/Off Power Consumption TL-WPA7517: Maximum: 11W, Typical: 6.5W TL-PA7017: Maximum: 2.9W, Typical: 2.6W LED Indicator Power, Powerline, Ethernet, Wi-Fi (2.4GHz), Wi-Fi (5GHz) Dimensions ( W x D x H ) TL-WPA7517: 2.7 × 1.4 × 4.9 in. (69.5 × 35 × 124.1 mm) TL-PA7017: 2.0 × 1.1 × 2.6 in. (52 × 28.5 × 65 mm) Range Up to 300 meters / 1000 feet range over the existing household power circuit WIRELESS FEATURES Wireless Standards • TL-WPA7517: IEEE 802.11a/n/ac/ax 5 GHz, IEEE 802.11b/g/n/ax 2.4 GHz • TL-PA7017: N/A Frequency • TL-WPA7517: 2.4 GHz and 5 GHz • TL-PA7017: N/A Signal Rate • TL-WPA7517: 300 Mbps at 2.4 GHz, 433 Mbps at 5 GHz • TL-PA7017: N/A Wireless Security WPA-PSK / WPA2-PSK, WEP Encrptions SOFTWARE FEATURES Mesh Technology EasyMesh-Compatible Without replacing your existing devices or buying a whole new WiFi ecosystem, EasyMesh helps you create a more flexible network that covers your entire home with EasyMesh-compatible products.

Management tpPLC: Scan the QR code to download TP-Link tpPLC App. Or download new tpPLC Utility on PCs: www.tp-link.com. Modulation Technology OFDM (PLC) Encryption Powerline: 128-bit AES Encryption Wireless: WPA-PSK / WPA2-PSK, WEP Encrptions SOFTWARE OneMesh™ OneMesh™ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. PHYSICAL Dimensions (W×D×H) • TL-WPA7517: 2.7 × 1.4 × 4.9 in (69.5 × 35 × 124.1 mm) • TL-PA7017: 2.0 × 1.1 × 2.6 in (52 × 28.5 × 65 mm) Package Contents • AV1000 Powerline Wi-Fi Kit: TL-WPA7517 & TL-PA7017 • 2× Ethernet Cables • 1× Quick Installation Guide OTHERS Certification CE, RoHS Package Contents AV1000 Powerline Wi-Fi Kit: TL-WPA7517 & TL-PA7017 Ethernet Cable × 2 Quick Installation Guide System Requirements Windows 10/8.1/8/7/Vista/XP, Mac OS, Linux Environment Operating Temperature: 0°C~40°C (32°F~104°F) Operating Humidity: 10%~90% non-condensing
