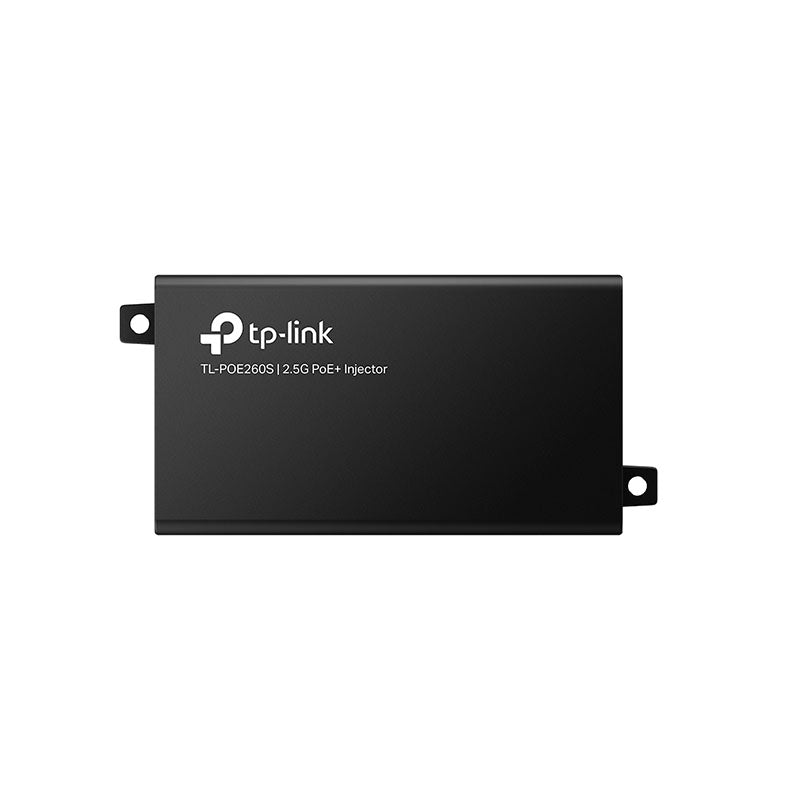

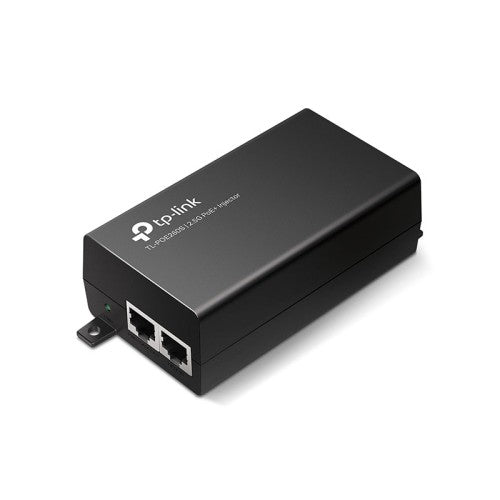

TP-Link TL-POE260S 2.5G PoE+ Injector

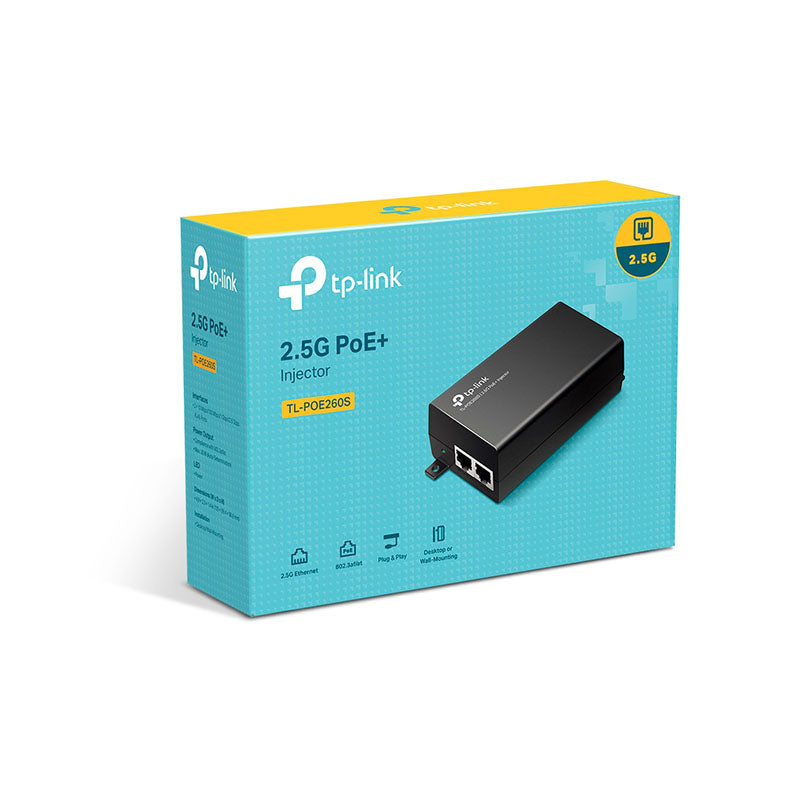

NETWORK Standards and Protocols IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3bz, IEEE802.3af, IEEE802.3at GENERAL Certification FCC, CE, RoHS Environment Operating Temperature: 0°C to 40°C (32°F to 104°F) Storage Temperature: -40°C to 70°C (-40°F to 158°F) Operating Humidity: 10% to 90%RH non-condensing Storage Humidity: 5% to 90%RH non-condensing PACKAGE CONTENTS Package Contents • 2.5Gbps PoE+ Injector TL-POE260S • Installation Guide • Power Cord • RJ45 Cable • Wall Mounting Kits HARDWARE FEATURES Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) • 1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m) • 2.5GBASE-T: UTP category 5e or above cable(maximum 100 m) Ports • 1 10 Mbps /100 Mbps /1Gbps / 2.5Gbps RJ45 data-in port • 1 10 Mbps /100 Mbps /1Gbps / 2.5Gbps RJ45 power+data-out port • 1 AC socket Power Consumption Input: 100-240 V, 50/60 Hz Output: Auto-determine the necessary power requirements (max. 30 W) Basic Function • Auto-Sensing Algorithm enables providing power with 802.3af/at PD • Auto-determine the necessary power requirements • Wall-mounting and desktop installation supported • Plug-and-Play LED Indicator ON: Supplying power normally OFF: No power supply Dimensions ( W x D x H ) 4.9*2.3*1.4 in (125*59.4*36.8 mm)
