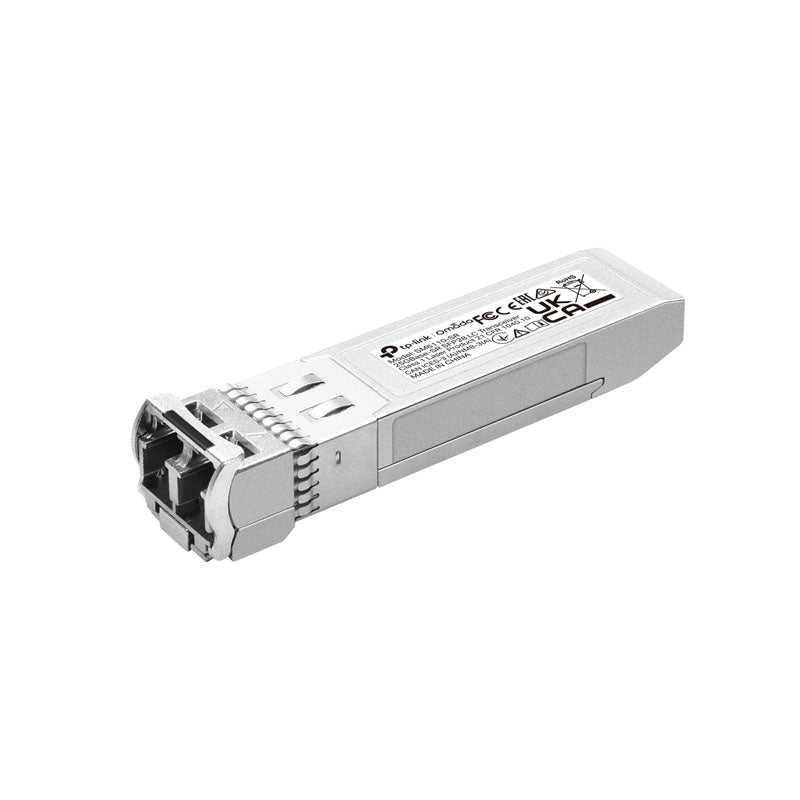

TP-Link SM6110-SR Omada 25GBase-SR SFP28 LC Transceiver

Multi-mode SFP+/SFP28 LC Transceiver Hot-Pluggable with maximum flexibility Supports Digital Diagnostic Monitoring (DDM) Low Power Consumption no more than 1 W Compatible with 10G/25G Small Form Pluggable Multi-Source Agreement (SFP+/SFP28 MSA) Compatible with switches with 25G ports like SX6632YF; and 10G ports like SG3428X and SG3452X. Transceiver Standards and Protocols • IEEE 802.3ae, 802.3by • SFF-8402, SFF-8431, SFF-8432, SFF-8472 • eCPRI, CPRI • TCP/IP Wave Length 850nm Power Supply 3.3V Fiber Type 50/125um or 62.5/125um Multi-mode Max. Cable Length 70m (OM3) @25.78Gbps, 100m (OM4) @25.78Gbps, 300m (OM3) @10.31Gbps Connector Duplex LC/UPC Regulatory Compliance CE, FCC, RoHS Environment • Operating Temperature: 0°C to 70°C (32–158 ℉) • Storage Temperature: -40°C to 85°C (-40°F to 185°F) • Operating Humidity: 10% to 90% RH non-condensing • Storage Humidity: 5% to 90% RH non-condensing HARDWARE FEATURES DDM Yes SFP-MSA Yes Hot Swappable Yes Dimensions ( W x D x H ) 2.24*0.55*0.53 in (57*14*13.45 mm) Package Content Package Content • SM6110-SR • Installation Guide SFP28 Cable Data Rate Dual Rate 25.78 Gbps and 10.31 Gbps
