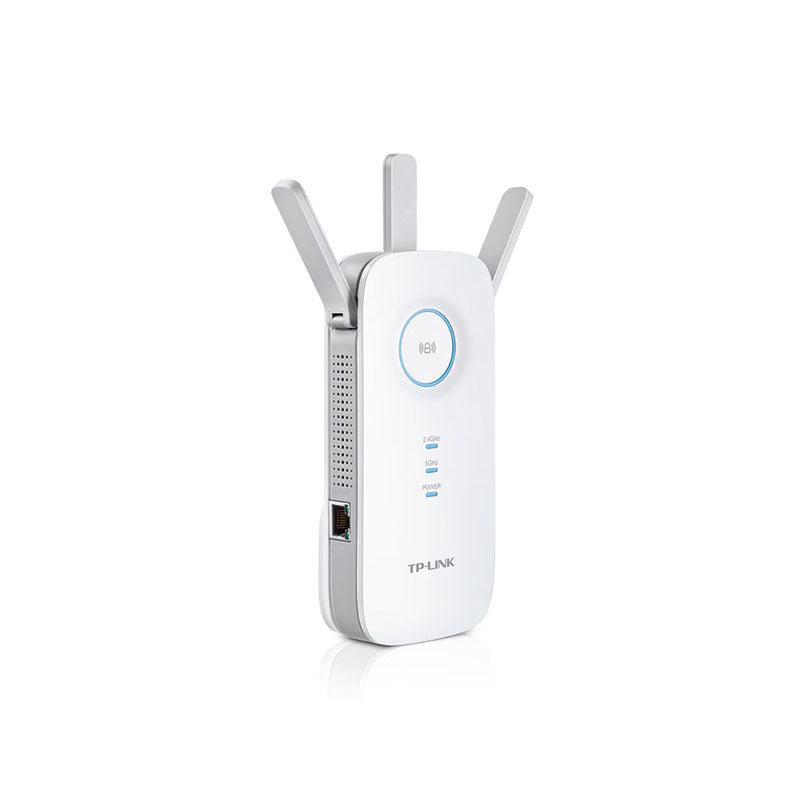

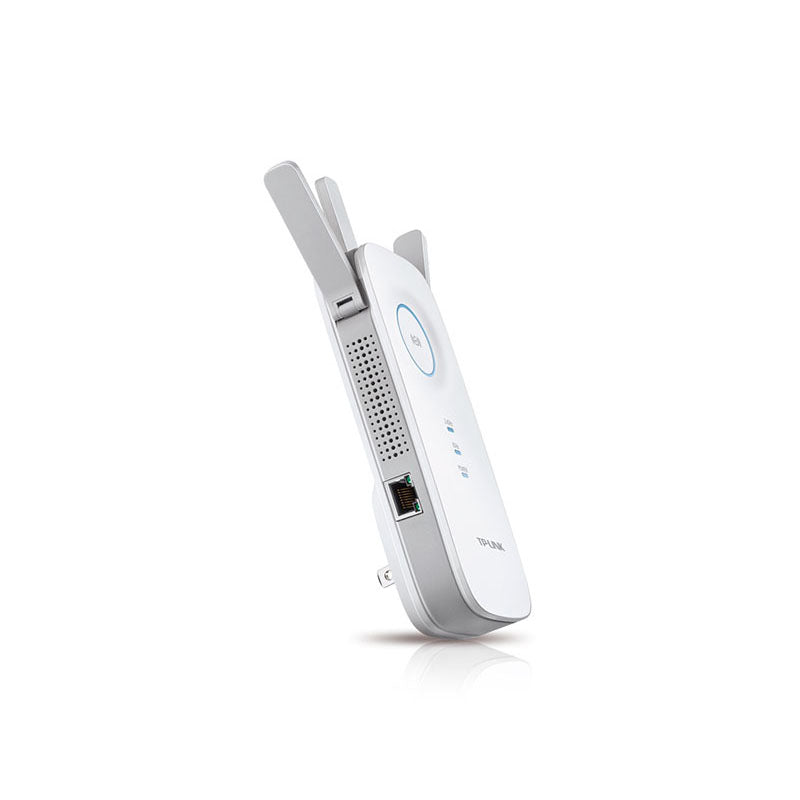

TP-Link RE450 AC1750 Dual Band Wireless Wall Plugged Range Extender

WIRELESS Working Modes Range Extender/Access Point HARDWARE FEATURES Standards and Protocols IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b Plug Type EU, UK, US Interface 1 * 10/100/1000M Ethernet Port (RJ45) Ports 1 Gigabit Ethernet Port Button RE (Range Extender) Button, Reset Button, LED Button, Power Button Input Power 100-240V~50/60Hz Power Consumption 9W（max power consumption） Dimensions ( W x D x H ) 6.4x 3.0 x 2.6 in. (163 x 76.4 x 66.5mm) Antenna 3* external WIRELESS FEATURES Wireless Standards IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz Frequency 2.4GHz & 5GHz(11ac) Signal Rate 5GHz:Up to 1300Mbps 2.4GHz:Up to 450Mpbs Working Modes Range Extender/Access Point Reception Sensitivity 5GHz： 11a 6Mbps:-93dBm@10% PER 11a 54Mbps: -76dBm@10% PER 11ac HT20 mcs8: -68dBm@10% PER 11ac HT40 mcs9: -64dBm@10% PER 11ac HT80 mcs9: -61dBm@10% PER 2.4GHz 11g 54M: -77dBm@10% PER 11n HT20 mcs7: -73dBm@10% PER 11n HT40 mcs7: -70dBm@10% PER Wireless Modes Range Extender Wireless Functions Wireless Statistic Concurrent Mode boost both 2.4G/5G WiFi band High Speed Mode for great speed for HD Gaming and video Access Control LED Control Domain Login Function Wireless Security 64/128-bit WEP WPA-PSK / WPA2-PSK Transmission Power <20dBm(2.4GHz) <23dBm(5GHz) OTHERS Certification CE, FCC, RoHS Package Contents AC1750 Wi-Fi Range Extender RE450 RJ-45 Ethernet Cable Quick Installation Guide Box Dimensions (W X D X H) 7.9 x 4.9 x 3.4in. (202x 125 x 86mm) System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux. Environment Operating Temperature: 0°C~30°C (32°F~86°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
