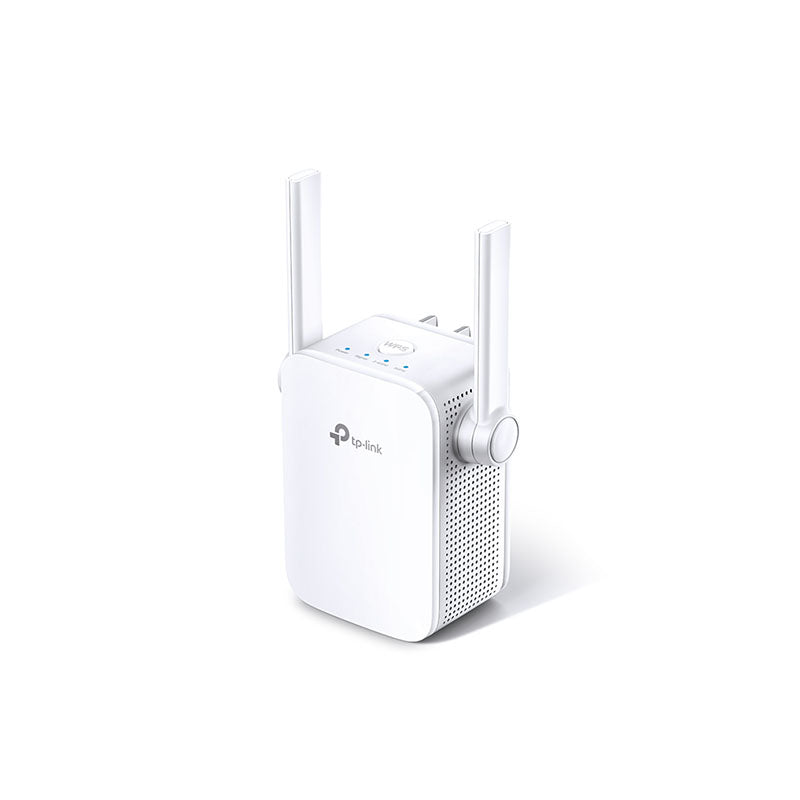

TP-Link RE305 AC1200 Wi-Fi Range Extender_Refurbished

WIRELESS Working Modes Range Extender/Access Point HARDWARE FEATURES Standards and Protocols IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11a, IEEE 802.11b Plug Type EU, UK, US Interface 1 * 10/100M Ethernet Port (RJ45) Ports 1 x 10/100Mbps Ethernet Port (RJ45) Button WPS Button, Reset Button Input Power 100-240V~50/60Hz Power Consumption 7.3W（max power consumption） Dimensions ( W x D x H ) 3.1*3.0*3.0 in. (80*78*77mm) Antenna 2* external WIRELESS FEATURES Wireless Standards IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz Frequency 2.4GHz & 5GHz(11ac) Signal Rate 5GHz:Up to 867Mbps 2.4GHz:Up to 300Mpbs Reception Sensitivity 5GHz： 11a 6Mbps:-91dBm@10% PER 11a 54Mbps: -74dBm@10% PER 11ac HT20 mcs8: -68dBm@10% PER 11ac HT40 mcs9: -63dBm@10% PER 11ac HT80 mcs9: -59dBm@10% PER 2.4GHz 11g 54M: -79dBm@10% PER 11n HT20 mcs7: -77dBm@10% PER 11n HT40 mcs7: -74dBm@10% PER Wireless Modes Range Extender/Access Point Wireless Statistic Concurrent Mode boost both 2.4G/5G Wi-Fi band Wireless Functions Wireless Statistic Concurrent Mode boost both 2.4G/5G Wi-Fi band Access Control LED Control Domain Login Function Wireless Security 64/128-bit WEP WPA-PSK / WPA2-PSK Transmission Power <17dBm(2.4GHz) <17dBm(5GHz) OTHERS Certification CE, FCC, RoHS Package Contents AC1200 Wi-Fi Range Extender RE305 Quick Installation Guide Box Dimensions (W X D X H) 6.15*4*3.7in. (156.5*101.5*95mm) System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux. Environment Operating Temperature: 0°C~40°C (32°F~104°F)  Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
