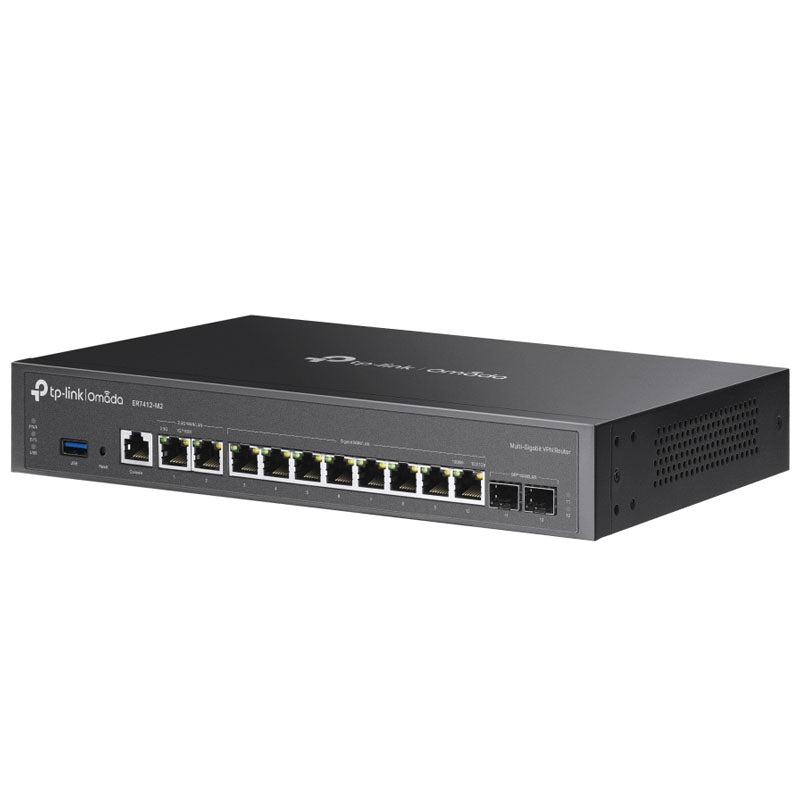

TP-Link ER7412-M2 Omada Multi-Gigabit VPN Router

Quad-core @2.0GHz CPU 2× 2.5G RJ45 WAN/LAN ports  10× Gigabit WAN/LAN Ports (2× SFP, 8× RJ45) 1× USB 3.0 Port (Supports USB storage, and LTE backup with LTE dongle) Load Balancing on up to 11 WAN ports△ increases the utilization rate of multi-line broadband High-security SSL/ IPSec / GRE§ / WireGuard / PPTP / L2TP VPN & OpenVPN Centralized cloud management via the web or the Omada app* DoS/DDoS protection, IP/MAC/URL filtering, DPI, and IPS/IDS for enhanced security

SECURITY Access Control • Source/Destination IP-Based ACL • Stateful ACL • IPv4/IPv6 ACL • Location Based ACL Filtering • WEB Group Filtering§ • URL Filtering • Web Security§ ARP Inspection • Sending GARP Packets§ • ARP Scanning§ • IP-MAC Binding§ Attack Defense • TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN HARDWARE FEATURES Standards and Protocols • IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE802.1q • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP Interface • 1× 2.5G RJ45 WAN/LAN Port • 1× 2.5G RJ45 WAN/LAN Port • 2× Gigabit SFP WAN/LAN Ports • 8× Gigabit RJ45 WAN/LAN Ports

• 1× RJ45 Console Port • 1× USB 3.0 Port (Supports USB storage, and LTE backup with LTE dongle) Network Media • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) • 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) • 2500BASE-T: UTP category 5e, 6 cable (Max 100 m) Button Reset Button Power Supply 100–240 VAC, 50/60 Hz Flash 128MB NAND DRAM 1 GB DDR4 Dimensions ( W x D x H ) 11.6×7.1×1.7 in (294×180×44 mm) Protection 4 kV surge protection Enclosure Steel Mounting • Desktop • Rackmountable Max. Power Consumption 18.5W (With USB 3.0 connected) PERFORMANCE IPS Throughput 523Mbps DPI Throughput 2.2Gbps GRE • Unencrypted: 1153.0 Mbps • Encrypted: 559.2 Mbps WireGuard VPN 771.6 Mbps Concurrent Session 1,000,000 New Sessions /Second 7,000 NAT (Static IP) 2345.71 Mbps / 2351.22 Mbps NAT(DHCP) 2353.41 Mbps / 2353.40 Mbps NAT(PPPoE) 2336.52 Mbps / 2336.08 Mbps NAT (L2TP) 1937.53 Mbps / 1761.82 Mbps NAT (PPTP) 1757.54 Mbps / 2011.33 Mbps IPsec VPN Throughput • ESP-SHA1-AES256: 1125.60 Mbps • ESP-SHA256-AES256: 1133.1 Mbps • ESP-SHA384-AES256: 1126.6 Mbps • ESP-SHA512-AES256: 1132.8 Mbps OpenVPN UDP: 266.2 Mbps L2TP VPN Throughput • Unencrypted: 2724.5 Mbps • Encrypted: 1018.4Mbps PPTP VPN Throughput • Unencrypted: 3035 Mbps • Encrypted: 534.6 Mbps SSL VPN Throughput 263.1 Mbps 66 Byte Packet Forwarding Rate 1833 Mbps / 1835 Mbps 1,518 Byte Packet forwarding rate 2461 Mbps / 2461 Mbps BASIC FUNCTIONS WAN Connection Type • Static IP/Dynamic IP • PPPoE (supports MRU Configuration) • PPTP • L2TP • Mobile Broadband: 4G/3G modem for backup via USB port MAC Clone Modify WAN/LAN MAC Address† DHCP • DHCP Server • DHCPv6 PD Server (only in Standalone Mode) • DHCP Options Customization
