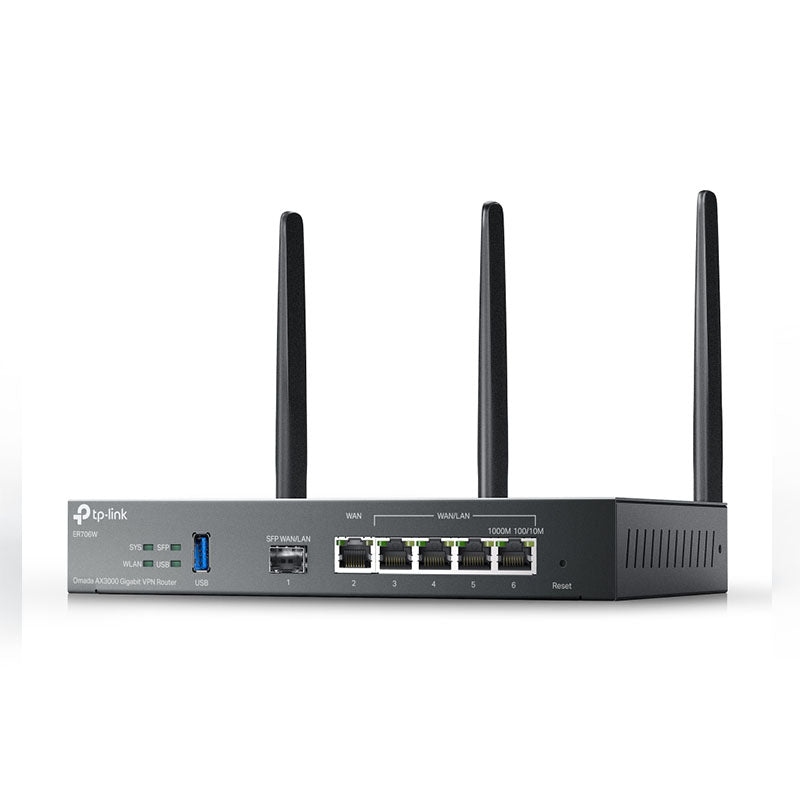

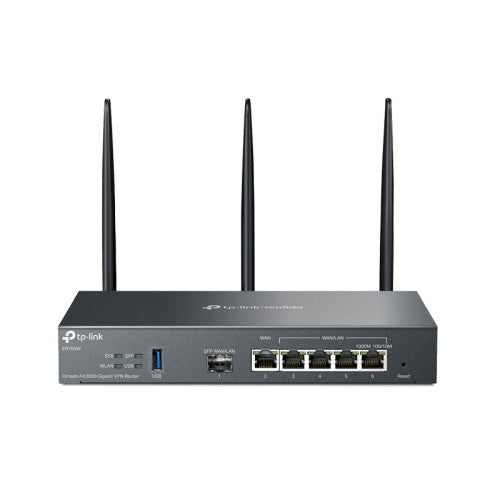

TP-Link ER706W Omada AX3000 Gigabit VPN Router

SECURITY Access Control Source/Destination IP Based Access Control Filtering • Web Group Filtering† • URL Filtering • Web Security† ARP Inspection • Sending GARP Packets • ARP Scanning† • IP-MAC Binding Attack Defense • TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN HARDWARE FEATURES Interface • 1 Gigabit SFP WAN/LAN Port • 1 Gigabit WAN Port • 4 Gigabit LAN/WAN Ports • 1 USB3.0 (supports USB LTE dongle and USB Storage) Button Reset Button Power Supply 12VDC / 2A Power Adapter Wi-Fi Frequency & Signal Rate • 2.4 GHz: 574 Mbps • 5 GHz: 2402 Mbps (HE160) Flash 128 MB NAND DRAM 512 MB DDR4 Dimensions ( W x D x H ) 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) (Antenna dimensions are not included) Antenna • 2.4 GHz: 2x 3 dBi dual-band detachable antennas • 5 GHz: 3x 4.5 dBi dual-band detachable antennas Mounting Desktop/Wall-mounting Max Power Consumption • EU: 16.8W (with USB 3.0 connected), 11.8W (without USB 3.0 connected) • US: 22.7W (with USB 3.0 connected) 18.2W (without USB 3.0 connected) PERFORMANCE GRE • Unencrypted: 624.2Mbps • Encrypted: 301.5Mbps WireGuard VPN 393.5Mbps Concurrent Session 150,000 New Sessions /Second 5,100 NAT (Static IP) 937.2 Mbps / 936.1Mbps NAT(DHCP) 945.8 Mbps / 940.6Mbps NAT(PPPoE) 942.9 Mbps / 942.9Mbps NAT (L2TP) 837.4 Mbps / 881.5Mbps NAT (PPTP) 803.0 Mbps / 910.5 Mbps IPsec VPN Throughput • ESP-SHA1-AES256: 646.9Mbps • ESP-SHA256-AES256: 642.8Mbps • ESP-SHA384-AES256: 648.9Mbps • ESP-SHA512-AES256: 658.4 Mbps OpenVPN 129.3Mbps L2TP VPN Throughput • Unencrypted: 1034.0 Mbps • Encrypted: 570.0 Mbps PPTP VPN Throughput • Unencrypted: 1165.0 Mbps • Encrypted: 209.0 Mbps SSL VPN Throughput 126.7Mbps 66 Byte Packet forwarding rate 1,453,489 pps / 1,453,488 pps 1,518 Byte Packet forwarding rate 81,274 pps / 91,275 pps WIRELESS FEATURES Advanced Functions • Seamless Roaming • Mesh (with EAP that supports Mesh) • OFDMA • Beamforming • MU-MIMO • Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise Guest Network Support BASIC FUNCTIONS WAN Connection Type • Static IP • Dynamic IP • PPPoE (supports MRU Configuration) • PPTP • L2TP MAC Clone Modify WAN Address DHCP • DHCP Server • DHCPv6 PD Server (only in Standalone Mode) • DHCP Options Customization • DHCP Address Reservation • Multi-IP Interfaces • Multi-Net DHCP IPv6 StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode VLAN 802.1Q VLAN IPTV IGMP v2/v3 Proxy, Custom Mode, Bridge Mode ADVANCED FUNCTIONS ACL IP/Port/Protocol/Domain Name Filtering Advanced Routing • Static Routing • Policy Routing • RIP† • OSPF† Bandwidth Control IP-Based Bandwidth Control Load Balance • Intelligent Load Balance • Application Optimized Routing • Link Backup(Timing, Failover) • Online Detection NAT • One-to-One NAT • Multi-Net NAT • Port Forwarding • Port Triggering† • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP Session Limit IP-Based Session Limit VPN SSL VPN 50 Tunnels IPsec VPN • 100 IPSec VPN Tunnels • LAN-t
