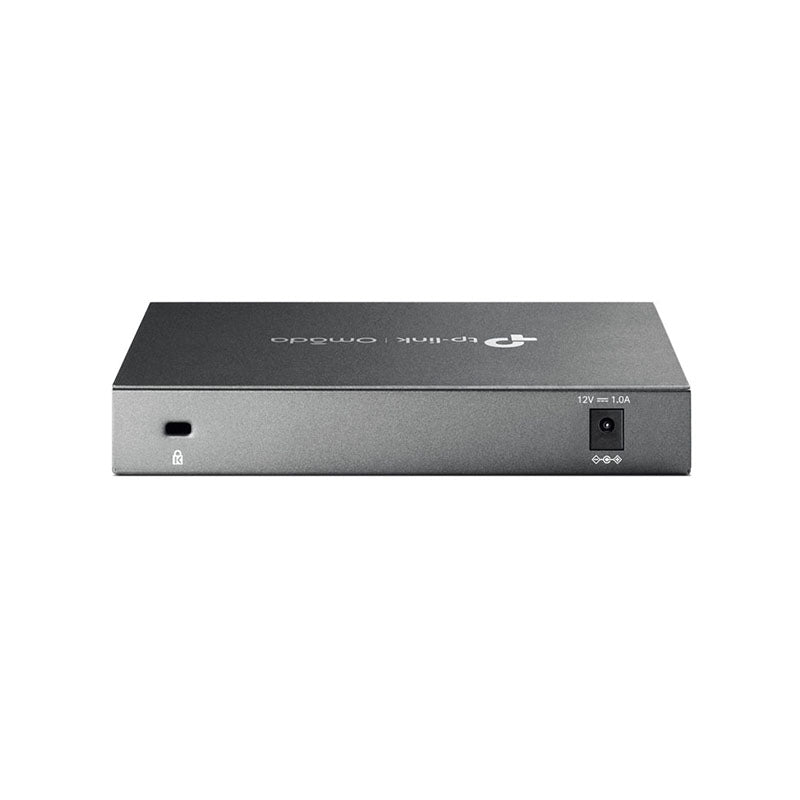

TP-Link ER605 Omada SDN SafeStream Gigabit Multi-WAN VPN Router

SECURITY Access Control Source/Destination IP Based Access Control Filtering • WEB Group Filtering§ • URL Filtering • Web Security§ ARP Inspection • Sending GARP Packets§ • ARP Scanning§ • IP-MAC Binding§ Attack Defense • TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN HARDWARE FEATURES Standards and Protocols • IEEE 802.3, 802.3u, 802.3ab, IEEE 802.3x, IEEE 802.1q • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP Interface • 1 Fixed Gigabit WAN Port • 2 Fixed Gigabit LAN Ports • 2 Changeable Gigabit WAN/LAN Ports • 1 USB 2.0 Port (Connecting 4G/3G Modem as WAN Backup‡) Network Media • 10BASE-T: UTP category 3, 4, 5 cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) • 100BASE-TX: UTP category 5, 5e cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m) Fan Quantity Fanless Button Reset Button Power Supply External 12V/1A DC Adapter PoE Budget - Flash 128 MB NAND DRAM 256 MB DDR LED PWR, SYS, WAN (Link/Act), LAN (Link/Act), USB Dimensions ( W x D x H ) 6.2 × 4.0 × 1.0 in (158 × 101 × 25mm) Protection 4 kV surge protection Enclosure Steel Mounting Desktop/Wall-mount Max Power Consumption 7.94 W PERFORMANCE Concurrent Session 150,000 New Sessions /Second 2,600 NAT (Static IP) • Upload: 945.77 Mbps • Download: 945.56 Mbps • Bi-Directional: 1808.29 Mbps NAT(DHCP) • Upload: 945.93 Mbps • Download: 945.43 Mbps • Bi-Directional: 1808.11 Mbps NAT(PPPoE) • Upload: 940.44Mbps • Download: 940.52 Mbps • Bi-Directional: 1804.27 Mbps NAT (L2TP) • Upload: 845.64 Mbps • Download: 802.65 Mbps • Bi-Directional: 931.96 Mbps NAT (PPTP) • Upload: 771.66 Mbps • Download: 874.81 Mbps • Bi-Directional: 999.54 Mbps 64 Byte Packet Forwarding Rate • Upload/Download: 1,402,238 pps • Bi-Directional: 1,681,548 pps IPsec VPN Throughput • ESP-MD5-AES256: 171.26 Mbps • ESP-SHA1-AES256: 224.86 Mbps • ESP-SHA2-AES256: 248.04 Mbps OpenVPN • 21.70 Mbps L2TP VPN Throughput • Unencrypted: 864.65 Mbps • Encrypted: 47.11 Mbps PPTP VPN Throughput • Unencrypted: 703.20 Mbps • Encrypted: 76.65 Mbps SSL VPN Throughput - 66 Byte Packet forwarding rate • Upload/Download: 954.50 Mbps • Bi-Directional: 1130.00 Mbps 1,518 Byte Packet forwarding rate • Upload/Download: 997.50 Mbps • Bi-Directional: 1965.00 Mbps BASIC FUNCTIONS WAN Connection Type • Static/Dynamic IP • PPPoE • PPTP • L2TP • Mobile Broadband: 4G/3G modem for backup via USB port‡ MAC Clone Modify WAN/LAN MAC Address† DHCP • DHCP Server/Client • DHCP Address Reservation • Multi-net DHCP* • Multi-IP Interfaces* IPv6 StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough VLAN 802.1Q VLAN IPTV IGMP v2/v3 Proxy, Custom Mode, Bridge Mode ADVANCED FUNCTIONS ACL IP/Port/Protocol/Domain Name Filtering Advanced Routing • Static Routing • Policy Routing Bandwidth Control IP-based Bandwidth Control Load Balance • Intelligent Load Balance • Application Optimized Routing • Link Backup (Timing§, Failover) • Online Det
