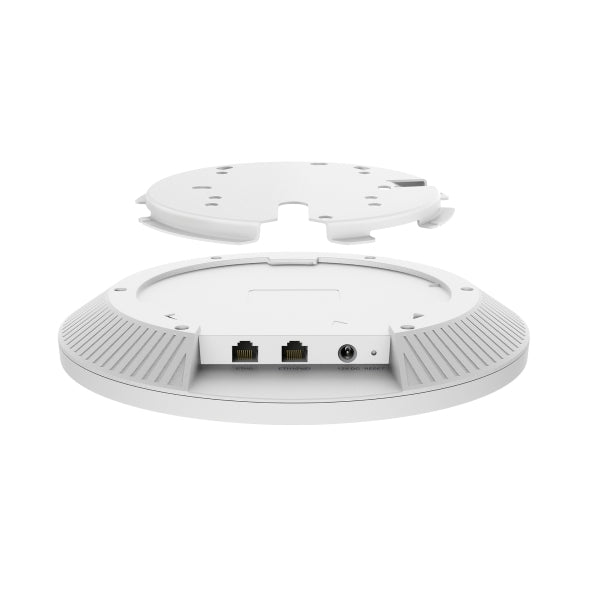

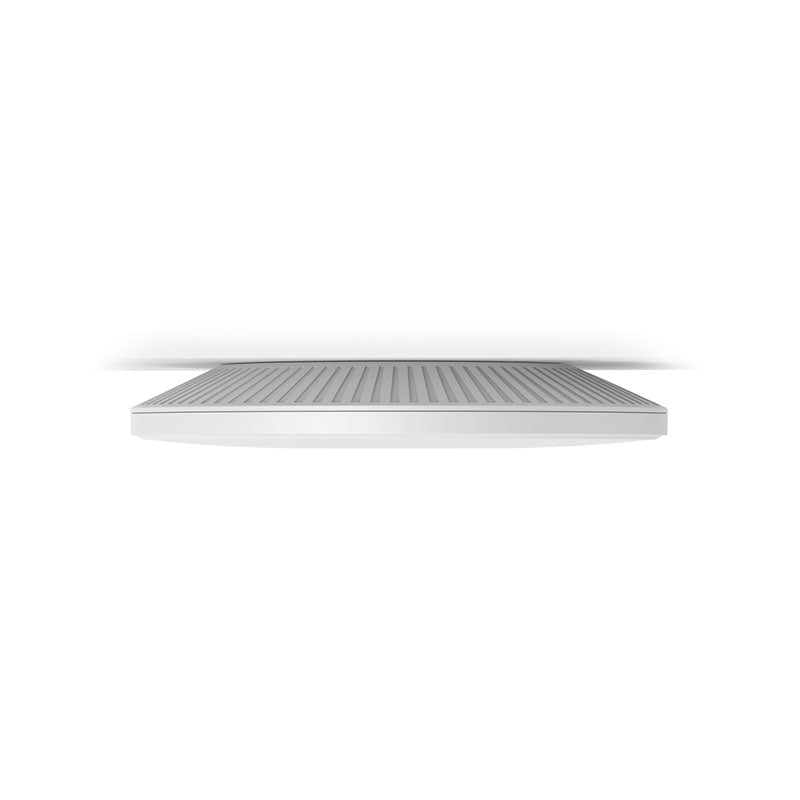

GENERAL Weight Net Weight:1384.6g HARDWARE FEATURES Interface 2× 10G Ethernet Ports Button Reset Power Supply • 802.3bt PoE++ • 12V DC
Note：Power adapter is not included. Power Consumption 39W Dimensions ( W x D x H ) 11.0 x 11.0 x 1.8 in (280 x 280 x 46.5 mm) Antenna Type Internal Omni • 2.4 GHz: 4× 4 dBi • 5 GHz: 4× 5.5 dBi • 6 GHz: 4× 5 dBi Bluetooth Yes Mounting Ceiling / Wall Mounting (Kits Included) WIRELESS FEATURES Coverage 200㎡ (2150 ft²) § Concurrent Clients 760+** Wireless Standards IEEE 802.11 a/b/g/n/ac/ax/be Frequency 6 GHz, 5 GHz, and 2.4 GHz Signal Rate • 6 GHz: Up to 11520 Mbps • 5 GHz: Up to 8640 Mbps • 2.4 GHz: Up to 1376 Mbps Wireless Functions • MLO • 4K-QAM • 4x4 MU-MIMO DL/UL • HE320 (320 MHz Bandwidth)‡ • Mesh§ • AI Roaming△ • Automatic Channel Selection and Power Adjustment* • BSS Coloring • UL/DL OFDMA • Load Balance • Band Steering • Beamforming • Airtime Fairness • Multiple SSIDS • Wireless Statistics • Wireless Schedule • Reboot Schedule • RADIUS Accounting • MAC Authentication • Static IP/Dynamic IP Wireless Security • PPSK • VLAN • Access Control • Rogue AP Detection • Captive Portal Authentication△ • Maximum number of MAC Filter: 4,000 • Wireless Isolation between Clients • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, OWE Transmission Power • FCC: <28 dBm (2.4 GHz) <28 dBm (5G band 1&band 4) <24 dBm (5G band 2&band 3) <28 dBm (6 GHz) MANAGEMENT Omada App Yes Restore & Backup Yes Firmware update via Web Yes NTP Yes Centralized Management • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller Cloud Access Yes. Require the use of OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller. Email Alerts Yes LED ON/OFF Control Yes Management MAC Access Control Yes SNMP v1, v2c, v3 SSH Yes Web-based Management Yes OTHERS Certification CE, FCC, RoHS, IC Package Contents • EAP783 • Installation Guide • Ceiling/Wall Mounting Kits Environment • Operating Temperature: 0 °C–40 °C (32 °F–104 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing
Related Products
SKU: TL-EAP610GP-DESKTOP
AVAILABILITY: Out of Stock
PRODUCT TYPE: Network Access Points
HARDWARE FEATURES Interface • 1x GPON Port • 1x FXS Port • 4x Gigabit RJ45 Ports (One Supporting 802.3af PoE Out) GPON Interface • Port Type: SC-APC • Standards and Protocols: ITU-984.x, G.988, Class B+ • Data Rate: 2.488 Gbps...
SKU: TL-EAP773
AVAILABILITY: In stock (5 items)
PRODUCT TYPE: Network Access Points
Some frequency bands of TP-Link's Wi-Fi 7 products fall within the weather radar bands and therefore cannot be used. For certain models, although the packaging indicates "BE11000," the actual usable specification is "BE9300 in Canada Based on Current Policy(If change...
SKU: TL-EAP673
AVAILABILITY: In stock (5 items)
PRODUCT TYPE: Network Access Points
HARDWARE FEATURES Interface 1× 2.5 Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE) Button Reset Power Supply • 802.3at PoE • 12 V / 2 A DC (Power adapter not included) Power Consumption • EU: 20.8 W • US: 22.3 W...
SKU: TL-EAP235-WALL-OV
AVAILABILITY: Out of Stock
PRODUCT TYPE: Network Access Points
HARDWARE FEATURES Interface • Uplink: 1× 10/100/1000 Mbps Ethernet Port • Downlink: 3× 10/100/1000 Mbps Ethernet Ports (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input and the maximum output is 13 W.) Physical Security Lock...
SKU: TL-HX220-1PACK
AVAILABILITY: In stock (5 items)
PRODUCT TYPE: Network Access Points
HARDWARE FEATURES Interface 3 × Gigabit Ports*Per Unit 1 Port supports WAN/LAN auto-sensing Button Reset Button WPS Button External Power Supply 12 VDC/1.0 A Dimensions ( W x D x H ) 3.9 x 3.9 x 3.5 in (100 x...
