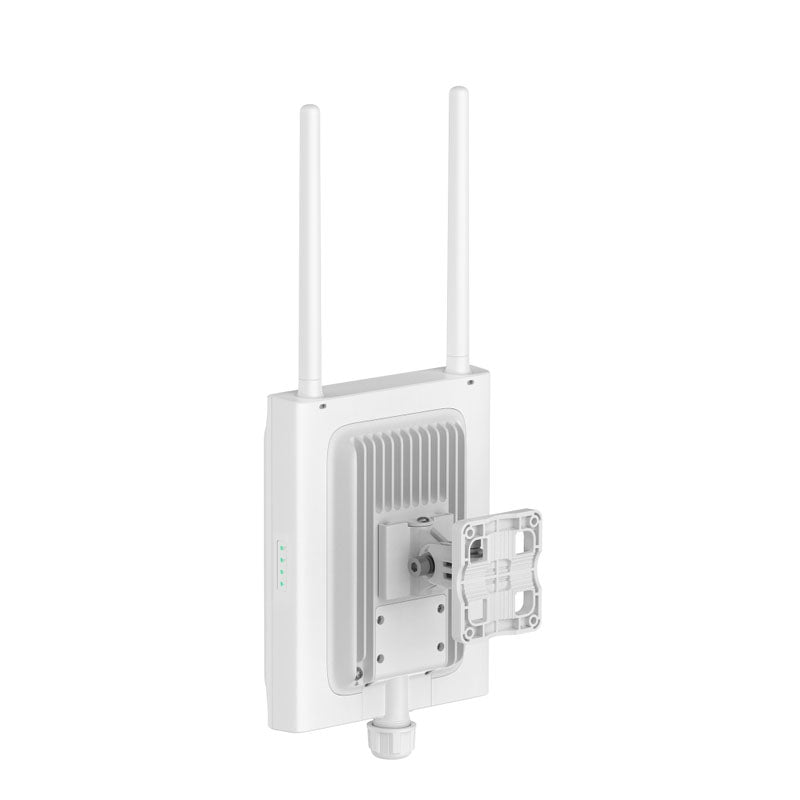

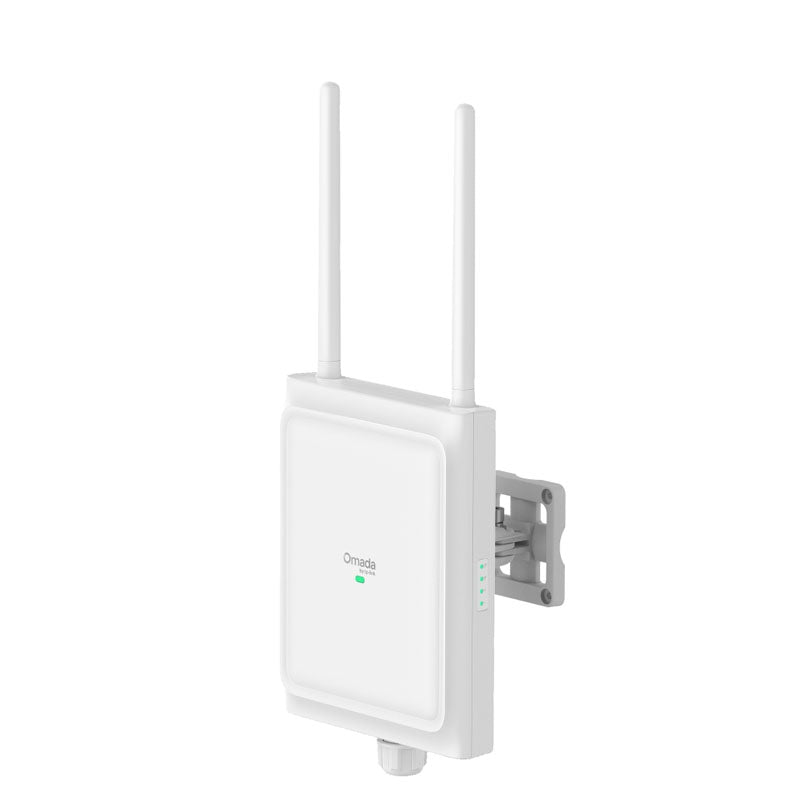

TPLINK EAP775-Outdoor Omada BE11000 Indoor/Outdoor WiFi 7 Access Point with Directional/Omnidirectional Antennas

Tri-Band 6-Stream Outdoor Wi-Fi 7: Delivers high-speed outdoor connectivity up to 11.0 Gbps.† 6 GHz Band Unlocked by AFC: AFC enables 6 GHz band outdoor uses.* Plug & Play Automatic Antenna Detection: Automatically detects antenna changes and switches between directional and omnidirectional modes. Customizable Directional and Omnidirectional Antennas: Individually adjust antenna modes for specific frequency bands via software to meet the precise requirements of complex, speciallized scenarios.** True Tri-Band Coverage: 3,229 ft2 (300 m2) omnidirectional and 5,500 ft2 (510 m2) directional recommended coverage.§ 1× 2.5G PoE Port: Flexible PoE deployment reduces costs by delivering power and data over a single Ethernet cable. Outdoor-Ready Durability: Features an IP68-rated weatherproof enclosure, anti-UV coating, and 6kV lightning protection. Quick and Easy Setup: Features wall/pole mounting with Omada SDN for one-click setup. Advanced Features: Centralized management, mesh, and seamless roaming.Δ HARDWARE FEATURES Interface 1 x 10M/100M/1000M/2.5Gbps Ethernet Port (RJ45) Button Reset Power Supply 802.3at PoE Max. Power Consumption 20.4W (for PoE+) Dimensions ( W x D x H ) 8.78 x 6.89 x 2.20 in (223 × 175 × 56 mm) Antenna 2.4 GHz: • 2 × 4.5 dBi (peak gain), external omnidirectional antennas • 2 × 8.7 dBi (peak gain), internal directional antennas (antenna beamwidth 90°×75°)

5 GHz: • 2 × 5.3 dBi (peak gain), external omnidirectional antennas • 2 × 10.5 dBi (peak gain), internal directional antennas (antenna beamwidth 90°×45°)

6 GHz: • 2 × 7.0 dBi (peak gain), internal omnidirectional antennas • 2 × 12.0 dBi (peak gain), internal directional antennas (antenna beamwidth 90°×30°)

*Note: The gains above are the single-antenna peak gains. Bluetooth BLE 5.2 Weatherproof Enclosure IP68 Mounting Pole/Wall Mounting (Kits included) Management Features Omada App Yes Centralized Management • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller Cloud Access Yes. Require the use of an Omada controller. Email Alerts Yes Management MAC Access Control Yes SNMP v1, v2c, v3 System Logging Local/Remote Syslog Yes SSH Yes Web-based Management Yes L3 Management Yes Multi-site Management Yes Management VLAN Yes Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller WIRELESS FEATURES Wireless Standards IEEE 802.11a/g/b/n/ac/ax/be Frequency 2.4 GHz, 5 GHz, 6 GHz Signal Rate 688 Mbps (2.4 GHz) + 4324 Mbps (5 GHz) + 5765 Mbps (6 GHz) Wireless Functions • 4k-QAM • OFDMA • Multiple SSIDs: 24 (8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS (WMM) • MLO • Omada Mesh△ • Seamless Roaming(802.11k/v/r)△ • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client • Static IP/Dynamic lP Wireless Security • Captive Portal Authentication△
