TP-Link EAP720 BE5000 Ceiling Mount Wi-Fi 7 Access Point

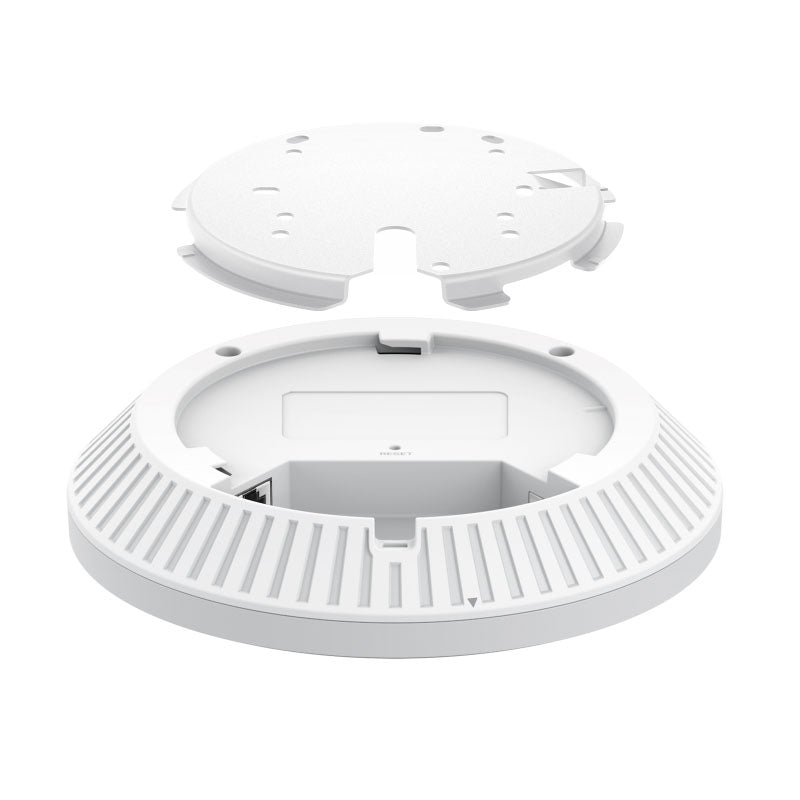

Dual-Band 4-Stream Wi-Fi 7: Up to 5.0 Gbps (4324 Mbps on 5 GHz + 688 Mbps on 2.4 GHz).† 1× 2.5G Port: Ensures fast connectivity throughout the network. Low Latency and Interference: Multi-Link Operation, Multi-Rus, and 4K -QAM ensure high performance of your network.‡ Flexible Deployment and Easy Setup: Supports both 802.3at PoE and DC Power supply for flexible installation (power adapter included). Omada SDN for one-click setup. Advanced Features: Supports centralized management, Mesh, and Seamless Roaming.△ More Connections and Wider Coverage: Supports 250+ concurrent clients* and covers up to 1500 ft² (140 ㎡) **for reliable and extensive wireless connectivity. HARDWARE FEATURES Interface 1× 2.5G Ethernet Port Button Reset Power Supply 802.3at PoE or 12V/1.5A DC (Power Adapter Included) Max. Power Consumption • 17.83 W (For PoE); • 13.99 W (For DC) Dimensions ( W x D x H ) 6.3 × 6.3 × 1.4 in (160 × 160 × 36.7 mm) Antenna • 2.4 GHz: 2× 4.0 dBi • 5 GHz: 2× 5.0 dBi Mounting Ceiling / Wall / Junction Box Mounting (Kits Included) WIRELESS FEATURES Coverage 1500 ft² (140㎡)* Concurrent Clients 250+** Wireless Standards IEEE 802.11 a/b/g/n/ac/ax/be Frequency 2.4 GHz and 5 GHz Signal Rate 688 Mbps (2.4 GHz) + 4324 Mbps (5 GHz) Wireless Functions • MLO‡ • 4K-QAM‡ • Seamless Roaming • 240 MHz Bandwidth‡ • Mesh△ • OFDMA‡ • Load Balance • Band Steering • Beamforming • Airtime Fairness • Multiple SSIDS:16(8 on each band) • Wireless Schedule • Reboot Schedule • QoS(WMM) • Rate Limit • Static IP/Dynamic IP • RADIUS Accounting • MAC Authentication Wireless Security • Captive Portal Authentication△ • Access Control • Maximum number of MAC Filter: 4,000 • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise Transmission Power < 25 dBm (2.4 GHz) < 25 dBm (5 GHz, UNII-1&UNII-4) < 24 dBm (5 GHz, UNII-2&UNII-3) Management Features Omada App Yes Centralized Management • Omada Central (Cloud-Based) • Omada Hardware Controller • Omada Software Controller Cloud Access Yes. Require the use of Omada Controller. Email Alerts Yes LED ON/OFF Control Yes Management MAC Access Control Yes SNMP v1, v2c, v3 System Logging Local/Remote Syslog Yes Web-based Management Yes OTHERS Certification CE, FCC, RoHS, IC Package Content • Omada Wi-Fi 7 Ceiling Mount Access Point EAP720 • Installation Guide • Ceiling/Wall/Juntion Box Mounting Kit • Power Adapter Environment • Operating Temperature: 0 °C–40 °C (32 °F–104 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing;
