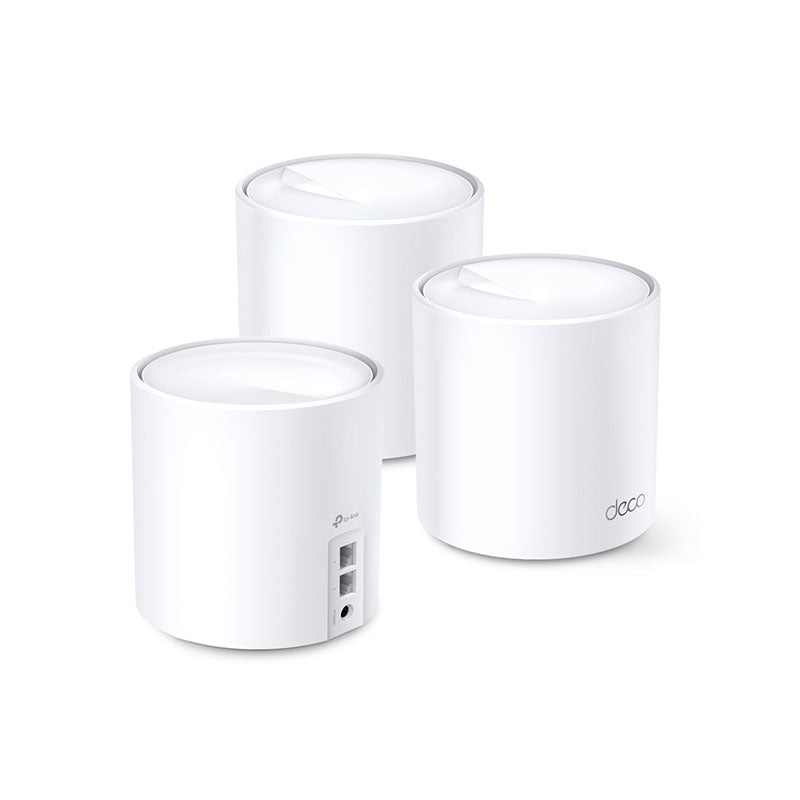

TP-Link Deco X60 AX3000 Whole Home Mesh Wi-Fi System, Wi-Fi 6 speeds up to 3,000 Mbps—2,402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz (3-pack)

SECURITY Network Security SPI Firewall Access Control

HomeShield Security Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner Guest Network 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network VPN Server • OpenVPN Server • PPTP VPN Server • L2TP/IPSec VPN Server VPN Client • OpenVPN Client • PPTP VPN Client • L2TP/IPSec VPN Client WiFi Encryption WPA-Personal WPA2-Personal WPA3-Personal WIRELESS Standards Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz WiFi Speeds AX3000 5 GHz: 2402 Mbps (802.11ax) 2.4 GHz: 574 Mbps (802.11ax) WiFi Range 4-7+ Bedroom Houses (3-pack) TP-Link Mesh Technology Optional Ethernet backhaul work together to link Deco units to provide seamless coverage

4× Antennas (Internal) Multiple antennas form a signal-boosting array to cover more directions and large areas WiFi Capacity High Dual-Band Distribute devices to different bands for optimal performance

MU-MIMO Simultaneously communicates with multiple MU-MIMO clients

OFDMA Simultaneously communicates with multiple WiFi 6 clients

6 Streams More than enough bandwidth for connected devices Working Modes Router Mode Access Point Mode HARDWARE Ethernet Ports 2× Gigabit Ports

*Per Deco Unit Supports WAN/LAN auto-sensing Buttons Reset Button SOFTWARE Protocols IPv4 IPv6 Service Kits HomeShield Parental Controls HomeShield Parental Controls Custom Profiles Professional Content Filter Library Family Time Bedtime Off Time Time Rewards Family Online Time Ranking Pause the Internet Weekly and Monthly Reports WAN Types Dynamic IP Static IP PPPoE PPTP L2TP Quality of Service HomeShield QoS QoS by Device Cloud Service OTA Firmware Upgrade TP-Link ID DDNS NAT Forwarding Port Forwarding UPnP IPTV IGMP Proxy IGMP Snooping Bridge Tag VLAN DHCP Address Reservation DHCP Client List Server DDNS TP-Link Management Deco App TEST DATA WiFi Transmission Power CE: <20 dBm (2.4 GHz) <23 dBm (5 GHz) FCC: <30 dBm (2.4 GHz) <30 dBm (5 GHz) PHYSICAL Dimensions (W×D×H) 4.33 × 4.33 × 4.49 in (110 × 110 × 114 mm) Package Contents Deco X60 (3-pack) 3 Deco X60 Units 1 RJ45 Ethernet Cable 3 Power Adapters 1 Quick Installation Guide

Deco X60 (2-pack) 2 Deco X60 Units 1 RJ45 Ethernet Cable 2 Power Adapters 1 Quick Installation Guide

Deco X60 (1-pack) 1 Deco X60 Unit 1 RJ45 Ethernet Cable 1 Power Adapter 1 Quick Installation Guide OTHERS System Requirements Android 5.0 or later iOS 9.0 or later *Note: The minimum system requirements will be updated alongside updates to the app, subject to official website information. Certifications CE, FCC, IC, RoHS, RCM, JPA, JRF, VCCI Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~60℃ (-40℉ ~140℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
