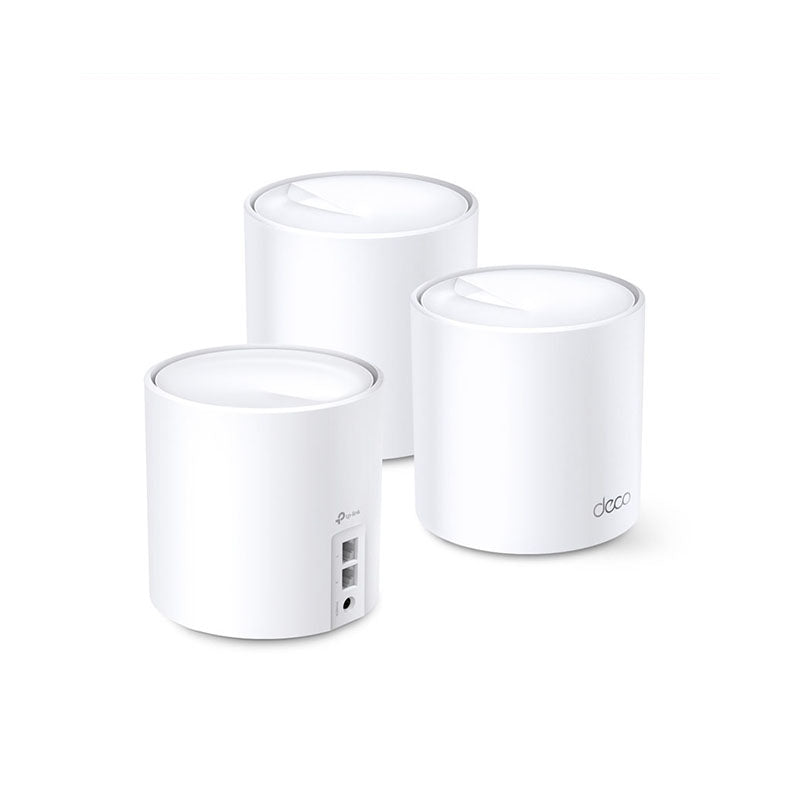

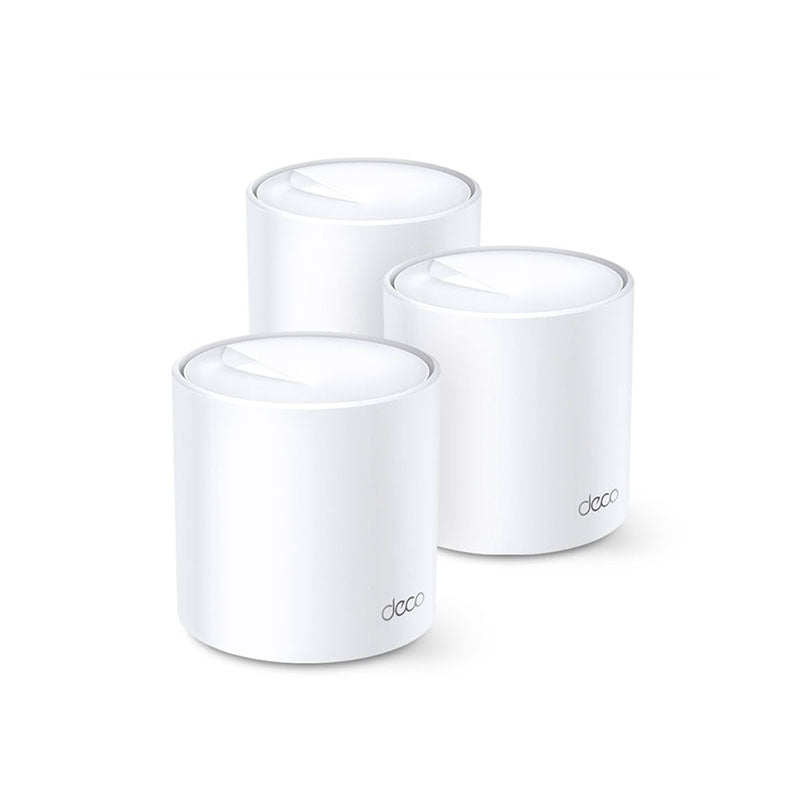

TP-Link Deco X20 AX1800 Whole Home Mesh Wi-Fi System, Wi-Fi 6 speeds up to 1,800 Mbps—1,201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz (3-pack)

SECURITY Network Security SPI Firewall Access Control

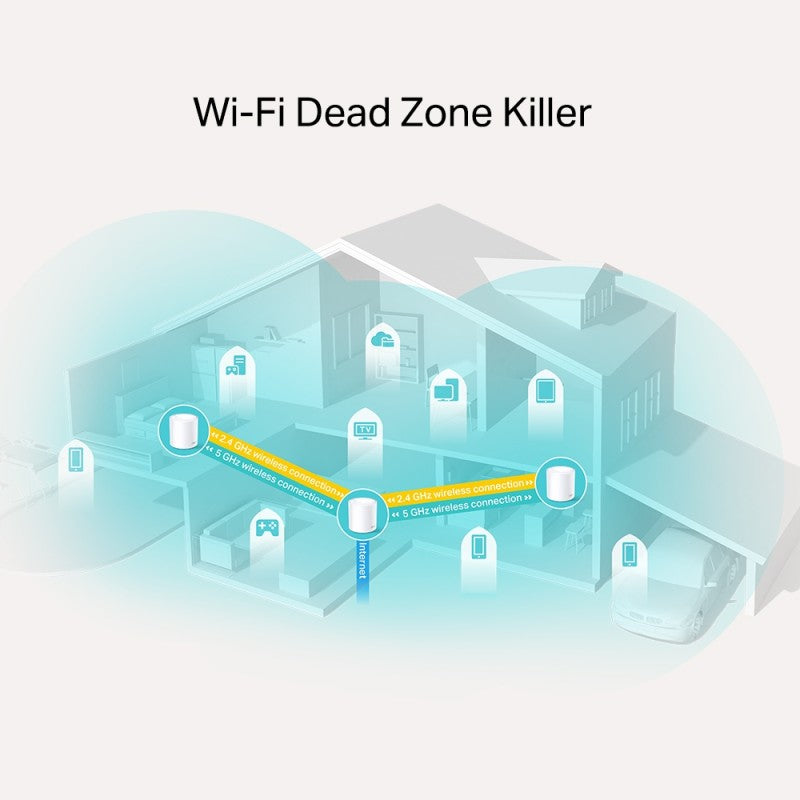

HomeCare™ Antivirus Malicious Site Checker Port Intrusion Prevention Infected Device Isolation Notification and Log Guest Network 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network WiFi Encryption WPA-Personal WPA2-Personal WPA3-Personal WIRELESS Standards Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz WiFi Speeds AX1800 5 GHz: 1201 Mbps (802.11ax) 2.4 GHz: 574 Mbps (802.11ax) WiFi Range 4-6 Bedroom Houses (3-pack) TP-Link Mesh Technology Optional Ethernet backhaul work together to link Deco units to provide seamless coverage

2× Antennas (Internal) Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming Concentrates wireless signal strength towards clients to expand WiFi range WiFi Capacity High Dual-Band Distribute devices to different bands for optimal performance

MU-MIMO Simultaneously communicates with multiple MU-MIMO clients

OFDMA Simultaneously communicates with multiple WiFi 6 clients

4 Streams More than enough bandwidth for connected devices Working Modes Router Mode Access Point Mode HARDWARE Ethernet Ports 2× Gigabit Ports

*Per Deco Unit Supports WAN/LAN auto-sensing Buttons Reset Button SOFTWARE Protocols IPv4 IPv6 Service Kits HomeCare™ Parental Controls HomeCare™ Parental Controls Custom Profiles Content Filtering URL FIltering Time Limit Time Schedule (Bed Time) Log Insight Usage Monitor Monthly Reports WAN Types Dynamic IP Static IP PPPoE PPTP L2TP Quality of Service HomeCare™ QoS QoS by Device QoS by Application Cloud Service OTA Firmware Upgrade TP-Link ID DDNS NAT Forwarding Port Forwarding UPnP IPTV IGMP Proxy IGMP Snooping Bridge Tag VLAN DHCP Address Reservation DHCP Client List Server DDNS TP-Link Management Deco App TEST DATA WiFi Transmission Power CE: <20 dBm (2.4 GHz) <23 dBm (5 GHz) FCC: <30 dBm (2.4 GHz) <30 dBm (5 GHz) PHYSICAL Dimensions (W×D×H) 4.33 × 4.33 × 4.49 in (110 × 110 × 114 mm) Package Contents Deco X20 (3-pack) 3 Deco X20 Units 1 RJ45 Ethernet Cable 3 Power Adapters 1 Quick Installation Guide

Deco X20 (2-pack) 2 Deco X20 Units 1 RJ45 Ethernet Cable 2 Power Adapters 1 Quick Installation Guide

Deco X20 (1-pack) 1 Deco X20 Unit 1 RJ45 Ethernet Cable 1 Power Adapter 1 Quick Installation Guide OTHERS System Requirements Android 5.0 or later iOS 9.0 or later *Note: The minimum system requirements will be updated alongside updates to the app, subject to official website information. Certifications CE, FCC, IC, RoHS, RCM, JPA, JRF, VCCI Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
