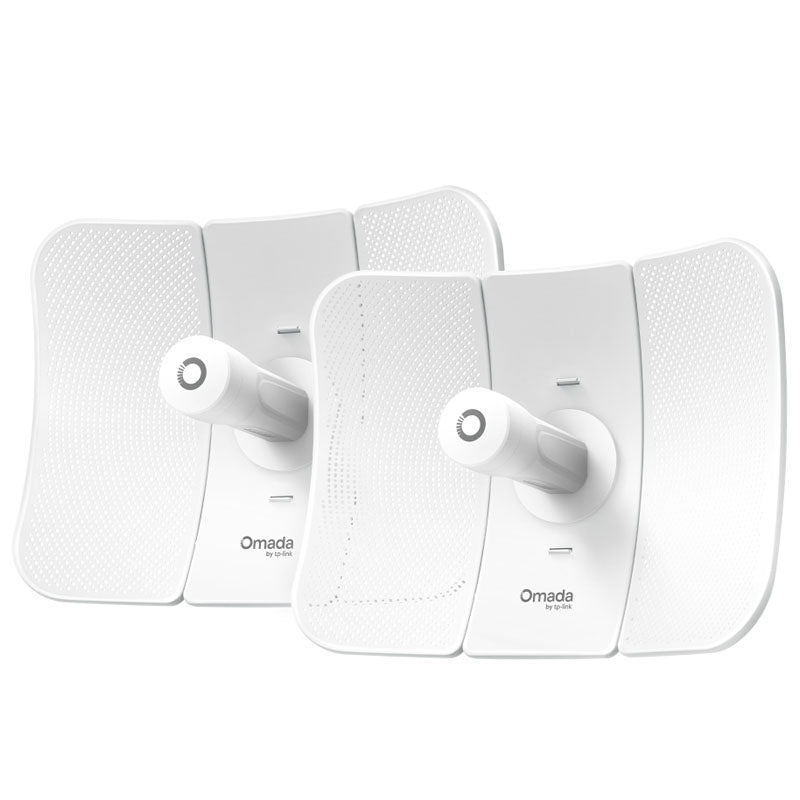

TP-Link Beam Bridge 5 UR KIT Omada 5GHz 867Mbps Ultra-Range Indoor/Outdoor Wireless Bridge

Business-Grade up to 9.3 mi (15 km) Ultra-Range Wireless Transmission: With 23dBi high-gain directional antennas.*  Plug-and-Play with Preconfigured Kit: Preconfigured for instant PtP auto-pairing, the bridges deliver instant connectivity right out of the box. App-Guided Alignment: Visualized app-guided alignment for long-distance setups and instant speed testing for installation verification. Simple PoE Deployment and Power Supply: 1× Gigabit PoE port supports both 802.3af PoE and Passive PoE for simplified wiring and lower deployment costs. Designed for Outdoor Durability & Reliability: IP65 weatherproof enclosure, 6 kV lightning protection and operating range of -40 °C to +70 °C.** Remote Monitoring & Management: Standalone mode or Omada SDN mode for remote centralized management via Web UI or App† HARDWARE FEATURES Interface 1 x 10M/100M/1000Mbps Gigabit Ethernet Port (RJ45); PoE In Button 1 × Reset Button 1 × System Mode Selection Button DIP Switch Role Switch Power Supply 802.3af PoE (1,2pins; 3,6pins) 24V or 48V Passive PoE (+4,5pins; -7,8pins) (Passive PoE Adapter Included) Max. Power Consumption 15.8W Dimensions ( W x D x H ) 14.4 × 11.0 × 8.1 in (366 × 280 × 207 mm) Antenna External 2×2 Dual-Polarized Directional MIMO Antennas 5 GHz: 23 dBi Antenna Beamwidth Horizontal: 9°, Vertical: 7° Weatherproof Enclosure IP65 Bandwidth 5 GHz: 20 MHz/40 MHz/80 MHz Mounting Pole Mounting (Kits Included) WIRELESS FEATURES PtP Yes Transmission Distance 15 km (9.3 mi) Wireless Standards IEEE 802.11 a/n/ac Frequency 5 GHz Signal Rate 5 GHz: Up to 867 Mbps Wireless Functions • MU-MIMO: 5G 2x2 MU-MIMO DL • Maximum number of associated STAs: 8 • Speed Test • Channel Optimization • Antenna Alignment • ACS (Automatic Channel Selection) • Rate Limit • Guest Network Wireless Security • VLAN • Rogue AP Detection • Maximum number of MAC Filter: 4,000 • Wireless Encryption Transmission Power • CE: <23 dBm (5 GHz, U-NII-1/2A, ERIP) <30 dBm (5 GHz, U-NII-1/2C, ERIP)

• FCC: <27 dBm (5 GHz, U-NII-1) <27 dBm (5 GHz, U-NII-3) Management Features Omada App Yes Restore & Backup Yes Firmware update via Web Yes NTP Yes Centralized Management • Omada Central (Cloud-Based) • Omada Hardware Controller • Omada Software Controller Cloud Access Yes. Require the use of an Omada Controller. Email Alerts Yes LED ON/OFF Control Yes SNMP Yes SSH Yes Web-based Management Yes Zero-Touch Provisioning Yes OTHERS Certification CE, FCC, RoHS Package Content • Beam Bridge 5 UR KIT • Installation Guide • Mounting Kit • Passive PoE Adapter • Power Cord Lightning Protection Ethernet Ports: ±6 kV Environment • Operating Temperature: -40 °C–70 °C (-40 °F–158 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing Weight 1.1 kg (2.43 lb)
