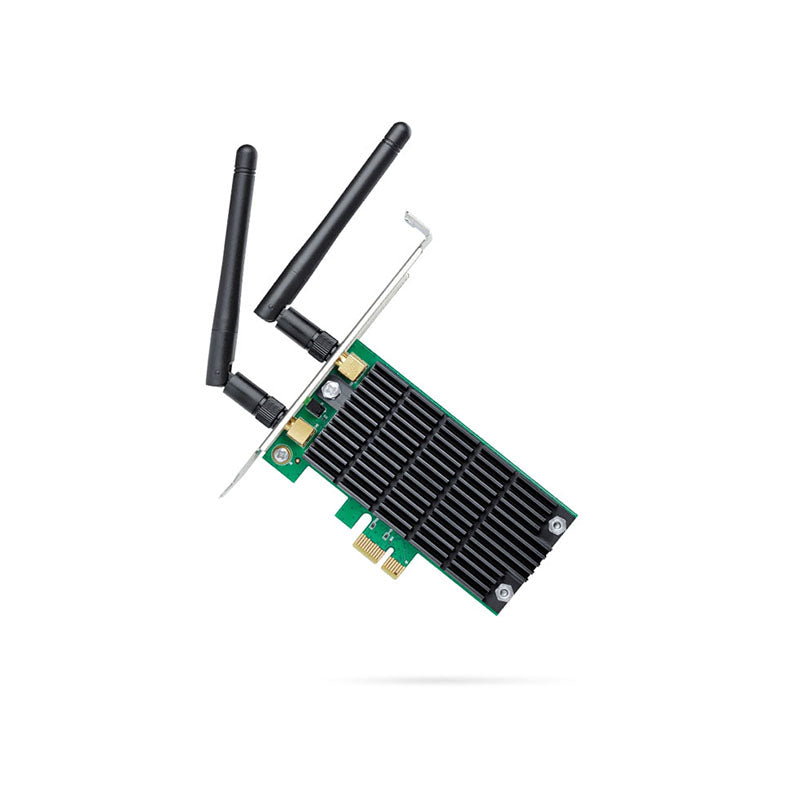

TP-Link Archer T4E AC1200 Wireless Dual Band PCI Express Adapter

HARDWARE FEATURES Interface PCI Express Dimensions ( W x D x H ) 4.8 x 4.5 x 0.85 in (120.8*115.2*21.5 mm) Antenna Type 2 Dual Band Detachable Antennas WIRELESS FEATURES Wireless Standards IEEE 802.11ac/n/a 5 GHz IEEE 802.11n/g/b 2.4 GHz Signal Rate 5 GHz 11ac: Up to 867 Mbps(dynamic) 11n: Up to 300 Mbps(dynamic) 11a: Up to 54 Mbps(dynamic)

2.4 GHz 11n: Up to 300 Mbps(dynamic) 11g: Up to 54 Mbps(dynamic) 11b: Up to 11 Mbps(dynamic) Reception Sensitivity 5 GHz : 11ac HT80: -59.5 dBm 11ac HT40: -63 dBm 11ac HT20: -68 dBm 11n HT40: -70 dBm 11n HT20: -73 dBm 11a 54Mbps: -76 dBm 11a 6Mbps: -92 dBm

2.4GHz : 11n HT40: -67.5 dBm 11n HT20: -70 dBm 11g 54Mbps: -72 dBm 11b 11Mbps: -86.5 dBm Transmit Power 5 GHz : 24 dBm(FCC) / 23dBm(CE) (EIRP) 2.4 GHz : 25 dBm(FCC) / 20dBm(CE) (EIRP) Wireless Modes Infrastructure mode Wireless Security Support 64/128 bit WEP, WPA/WAP2, WPA-PSK/WPA2-PSK, 802.1x Modulation Technology DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM OTHERS Certification CE, FCC, RoHS Package Contents AC1200 Wireless Dual Band PCI Express Adapter Archer T4E Low-Profile Bracket Quick Installation Guide Resource CD System Requirements Windows 10/8.1/8/7/XP (32/64bit) Environment Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
