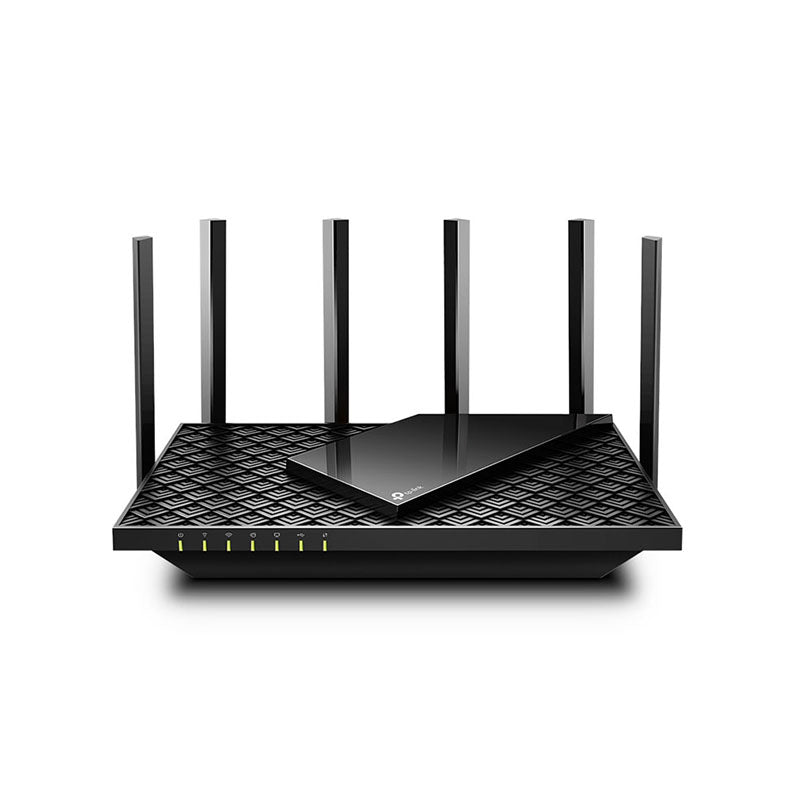

TP-Link Archer AX73 AX5400 Dual-Band Gigabit Wi-Fi 6 Router, 5 GHz: 4804 Mbps and 2.4 GHz: 574 Mbps.

SECURITY Network Security SPI Firewall Access Control IP & MAC Binding Application Layer Gateway

HomeShield Security Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner Guest Network 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network VPN Server OpenVPN PPTP VPN Client • Open VPN Client • PPTP VPN Client • L2TP VPN Client WiFi Encryption WPA WPA2 WPA3 WPA/WPA2-Enterprise (802.1x) WIRELESS Standards Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz WiFi Speeds AX5400 5 GHz: 4804 Mbps (802.11ax, HE160) 2.4 GHz: 574 Mbps (802.11ax) WiFi Range 3 Bedroom Houses 6× Fixed High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming Concentrates wireless signal strength towards clients to expand WiFi range

High-Power FEM Improves transmission power to strengthen signal coverage

4T4R Multiple streams in the same band strengthen the fault tolerance in transmission WiFi Capacity High Dual-Band Allocate devices to different bands for optimal performance

4×4 MU-MIMO Simultaneously communicates with multiple MU-MIMO clients

OFDMA Simultaneously communicates with multiple Wi-Fi 6 clients

Airtime Fairness Improves network efficiency by limiting excessive occupation

DFS Access an extra band to reduce congestion

6 Streams Connect your devices to more bandwidth Working Modes Router Mode Access Point Mode HARDWARE Processor 1.5 GHz Triple-Core CPU Ethernet Ports 1× Gigabit WAN Port 4× Gigabit LAN Ports

Static Link Aggregation (LAG) available with 2× LAN ports USB Support 1× USB 3.0 Port

Supported Partition Formats: NTFS, exFAT, HFS+, FAT32

Supported Functions: Apple Time Machine FTP Server Media Server Samba Server Buttons Wi-Fi On/Off Button Power On/Off Button LED On/Off Button WPS Button Reset Button Power 12 V ⎓ 2.5 A SOFTWARE Protocols IPv4 IPv6 Service Kits HomeShield OneMesh™ OneMesh™ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. Parental Controls HomeShield Parental Controls Custom Profiles Professional Content Filter Library Family Time Bedtime Off Time Time Rewards Family Online Time Ranking Pause the Internet Weekly and Monthly Reports WAN Types Dynamic IP Static IP PPPoE PPTP L2TP Quality of Service QoS by Device Cloud Service Auto Firmware Upgrade TP-Link ID DDNS NAT Forwarding Port Forwarding Port Triggering DMZ UPnP Virtual Server IPTV IGMP Proxy IGMP Snooping Bridge Tag VLAN DHCP Address Reservation DHCP Client List Server DDNS TP-Link NO-IP DynDNS Management Tether App Webpage OTHER System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access) Certifications FCC, CE, RoHS Environment Operat
