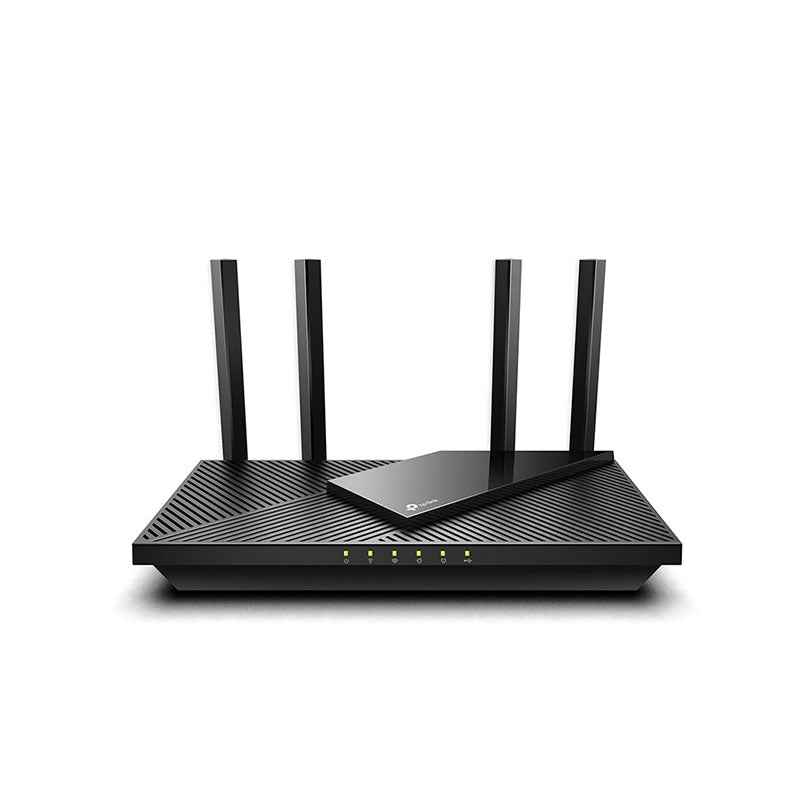

TP-Link Archer AX55 AX3000 Dual Band Gigabit Wi-Fi 6 Router, 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz band

WIRELESS Standards Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz WiFi Speeds AX3000 5 GHz: 2402 Mbps (802.11ax, HE160) 2.4 GHz: 574 Mbps (802.11ax) WiFi Range 3 Bedroom Houses 4× Fixed High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming Concentrates wireless signal strength towards clients to expand WiFi range

High-Power FEM Improves transmission power to strengthen signal coverage WiFi Capacity High Dual-Band Allocate devices to different bands for optimal performance

OFDMA Simultaneously communicates with multiple Wi-Fi 6 clients

Airtime Fairness Improves network efficiency by limiting excessive occupation

DFS Access an extra band to reduce congestion

4 Streams Connect your devices to more bandwidth Working Modes Router Mode Access Point Mode SECURITY Network Security SPI Firewall Access Control IP & MAC Binding Application Layer Gateway

HomeShield Security Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner Guest Network 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network VPN Server OpenVPN PPTP VPN Client • Open VPN Client • PPTP VPN Client • L2TP VPN Client WiFi Encryption WPA WPA2 WPA3 WPA/WPA2-Enterprise (802.1x) HARDWARE Processor Dual-Core CPU Ethernet Ports 1× Gigabit WAN Port 4× Gigabit LAN Ports USB Support 1× USB 3.0 Port

Supported Partition Formats: NTFS, exFAT, HFS+, FAT32

Supported Functions: Apple Time Machine FTP Server Media Server Samba Server Buttons Wi-Fi/WPS Button Power On/Off Button Reset Button Power 12 V ⎓ 2 A SOFTWARE Protocols IPv4 IPv6 Service Kits HomeShield OneMesh™ OneMesh™ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. EasyMesh Mesh networking creates smooth, fast, stable roaming. Archer AX55 can flexibly build an EasyMesh network with EasyMesh-Compatible devices, which eliminates Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi. Seamless Wi-Fi connections with one network name, one-click setting and flexible scalability. Parental Controls HomeShield Parental Controls Custom Profiles Professional Content Filter Library Family Time Bedtime Off Time Time Rewards Family Online Time Ranking Pause the Internet Weekly and Monthly Reports WAN Types Dynamic IP Static IP PPPoE PPTP L2TP Quality of Service QoS by Device Cloud Service Auto Firmware Upgrade OTA Firmware Upgrade TP-Link ID DDNS NAT Forwarding Virtual Servers Port Forwarding Port Triggering DMZ UPnP IPTV IGMP Proxy IGMP Snooping Bridge Tag VLAN DHCP Address Reservation DHCP Client List Server DDNS TP-Link NO-IP DynDNS Management Tether App Webpage OTHER System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscrip
