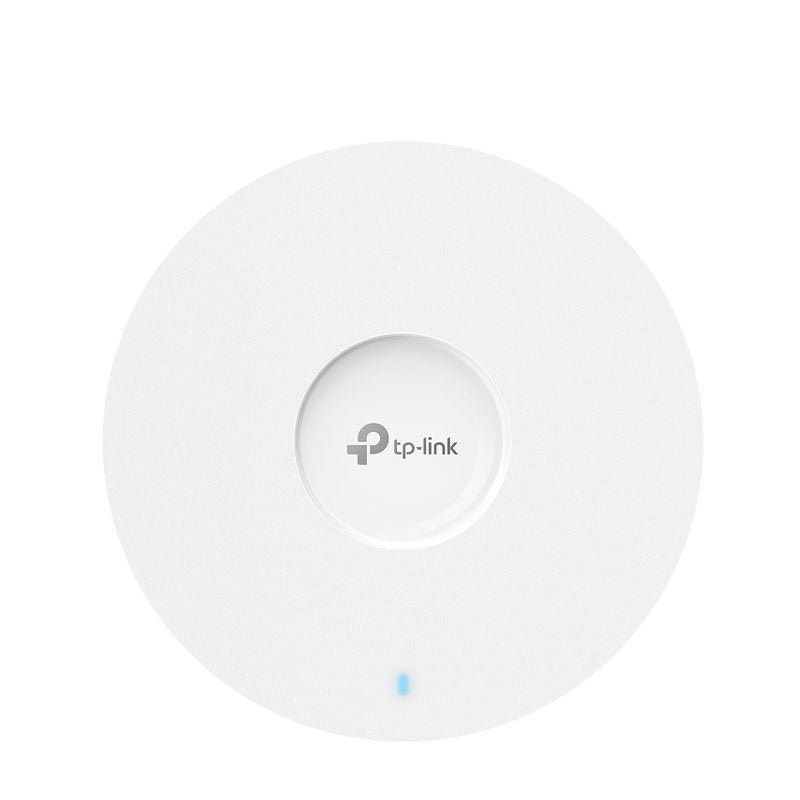

TP-Link AP653 UR AX3000 Ceiling Mount WiFi 6 Access Point

Ultra-fast WiFi 6 speeds: 2402 Mbps on 5 GHz t+ 574 Mbps on 2.4 GHz† Ultra-range wireless coverage by more antennas with higher transmit power Supports WiFi 6 technologies, such as HE160, 1024-QAM, etc‡ Advanced Features: Omada Mesh, Seamless Roaming, etc§ PoE+ Powered: Supports both 802.3at PoE and DC (adapter not included) Ultra-Slim Design: Φ6.3 in × 1.3 in elegant design brings more agility Integrates with the Omada SDN platform for centralized management

HARDWARE FEATURES Interface 1× Gigabit PoE+ Port Button Reset Power Supply • 802.3at PoE • 12V DC / 1.5 A (Power Adapter IS NOT included) • 48V Passive PoE Max. Power Consumption • EU: 14.2 W • US: 15.5 W Dimensions ( W x D x H ) 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm) Antenna Internal Omni • 2.4 GHz: 2× 5 dBi • 5 GHz: 3× 5 dBi Mounting • Ceiling /Wall Mounting (Kits included) • Junction Box Mounting WIRELESS FEATURES Coverage 185 ㎡ (2000 ft²)*** Concurrent Clients 250+** Wireless Standards IEEE 802.11ax/ac/n/g/b/a Frequency 2.4 GHz and 5 GHz Signal Rate • 5 GHz: Up to 2402 Mbps† • 2.4 GHz: Up to 574 Mbps† Wireless Functions • 1024-QAM • 4× Longer OFDM Symbol • OFDMA • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • MU-MIMO(2G: 2*2 MU-MIMO DL/UL; 5G:2*2 MU-MIMO DL/UL) • HE160 (160 MHz Bandwidth)‡ • Seamless Roaming(802.11k/v/r)§ • Omada Mesh§ • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client Wireless Security • Captive Portal Authentication§ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise Transmission Power • CE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, Band1 & Band2, EIRP) <29 dBm(5 GHz, Band3, EIRP)

• FCC: <26 dBm (2.4 GHz) <27 dBm (5 GHz) Management Features Omada App Yes Centralized Management • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller Cloud Access Yes. Require the use of an Omada controller. Email Alerts Yes LED ON/OFF Control Yes Management MAC Access Control Yes SNMP v1, v2c, v3 System Logging Local/Remote Syslog Local/Remote Syslog SSH Yes Web-based Management HTTP/HTTPS L3 Management Yes Multi-site Management Yes Management VLAN Yes Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller. OTHERS Certification CE, FCC, RoHS Package Content • EAP653 UR • Ceiling/Wall Mounting Kit • Installation Guide

Note: DC adapter is not included in the package, and is sold separately. System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux Environment • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH no
