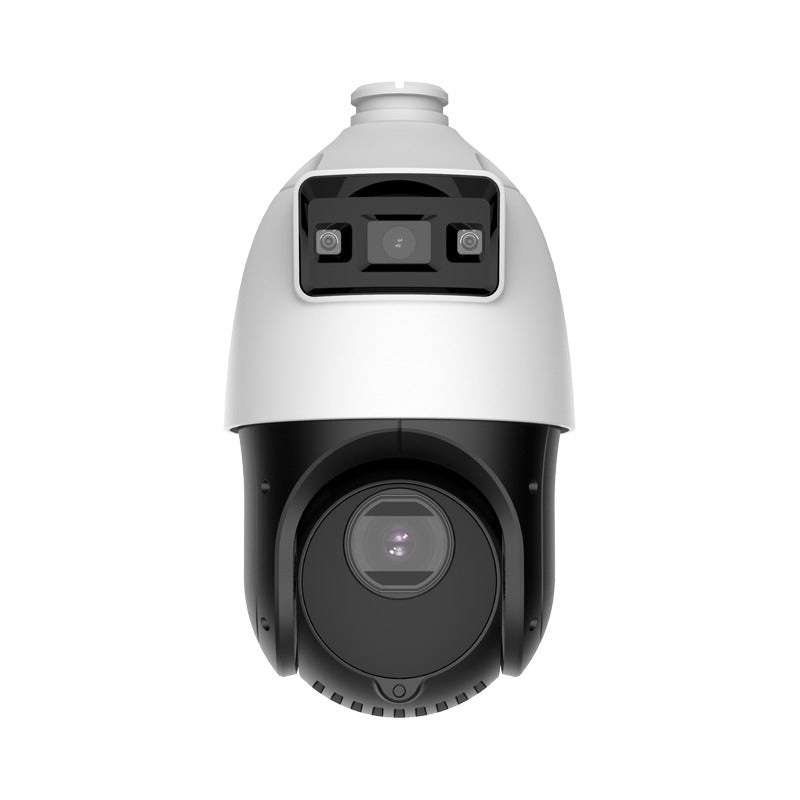

TandemVu 4+4MP 25X ColorVu & IR Acusense Network Speed Dome

-Captures a large area and great details at the same time

-High quality imaging with 4 MP resolution

-Excellent low-light performance with powered-by-DarkFighter technology and ColorVu technology

-Secures an expansive area with 25× optical zoom and 16× digital zoom

-Supports WDR, HLC, BLC, 3D DNR, defog, regional exposure, regional focus

-Expansive night view with up to 100 m IR distance & 30 m white light

-Supports 12V DC & PoE+

-Focuses on human and vehicle targets classification based on deep learning

Camera Image Sensor [Bullet channel]: 1/3" Progressive Scan CMOS; [PTZ channel]: 1/2.8" progressive scan CMOS Max. Resolution [Bullet channel] 2560 × 1440, [PTZ channel] 2560 × 1440 Min. Illumination

[Bullet channel]: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light;

[PTZ channel]: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR

Shutter Speed 1 s to 1/30,000 s Day & Night ICR Zoom [PTZ channel] 25 × optical, 16 × digital Slow Shutter yes Lens Focal Length [Bullet channel]: 2.8 mm; [PTZ channel]: 4.8 to 120 mm, 25 × optical FOV

[Bullet channel]: Horizontal field of view: 96.1°, Vertical field of view: 52.1°，Diagonal field of view: 113.3°;

[PTZ channel]:

Horizontal field of view: 55° to 2.4° (wide-tele),

Vertical field of view: 33° to 1.4° (wide-tele),

Diagonal field of view: 61.5° to 2.8° (wide-tele)

Focus semi-auto||manual||auto Aperture [Bullet channel]: F1.0; [PTZ channel]: F1.6 Zoom Speed [PTZ channel]: approx. 3.6 s Illuminator Supplement Light Type [PTZ channel]: IR; [Bullet channel]: White Light Supplement Light Range [PTZ channel]: up to 100 m; [Bullet channel]: up to 30 m Smart Supplement Light Yes PTZ Movement Range (Pan) 360° Movement Range (Tilt) -15° to 90° (auto flip) Pan Speed pan speed: configurable from 0.1° to 80°/s; preset speed: 80°/s Tilt Speed tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s Proportional Pan yes Presets 300 Preset Freezing yes Patrol Scan 8 patrols, up to 32 presets for each patrol Pattern Scan 4 pattern scans Park Action preset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan 3D Positioning yes PTZ Status Display yes Scheduled Task preset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan||dome reboot||dome adjust||aux output Power-off Memory yes Video Main Stream

[Bullet channel]:

50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

[PTZ channel]:

50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

Sub-Stream

[Bullet channel]:

50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)

60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

[PTZ channel]:

50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)

60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

Third Stream

[Bullet channel]:

50 Hz: 25 fps (1920 × 1080, 1280
