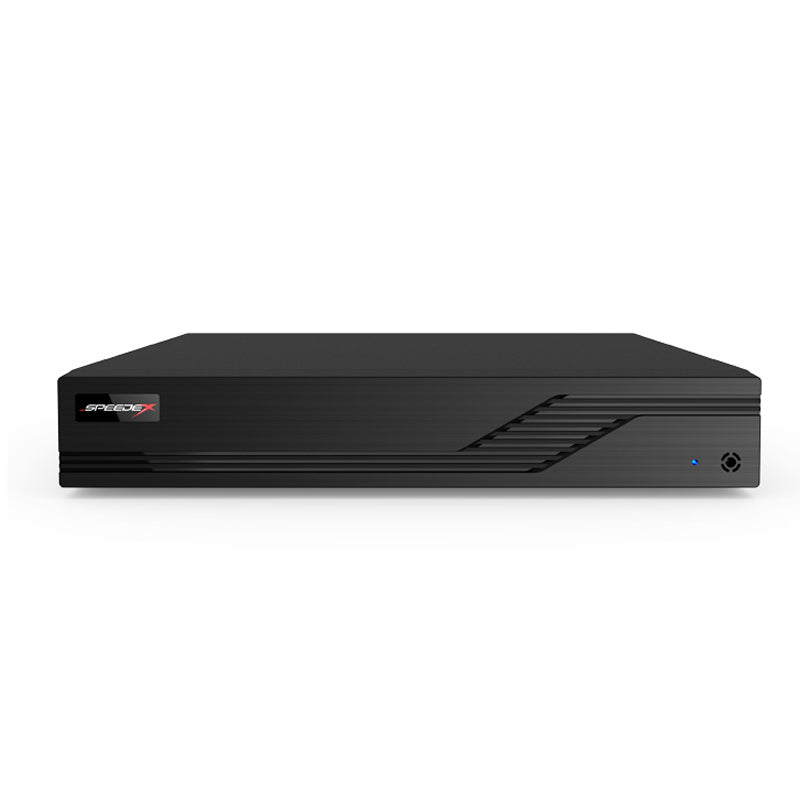

Speedex T3104B1 4 Channel 5MP H.265 Full HD PoE Onvif NVR

-Support 4 CH 5MP / 4MP / 3MP / 1080P / 960P / 720P IP input

-Adopt standard H.265 and H.264 high profile compression format to get high-quality video at much lower bit rate

-Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse

-Multi-mode recording: manual / timer / motion / sensor

-Playback : 4 CH simultaneous playback

-Search : time slice, time, event ( manual, sensor, motion ), tag search

-Express and flexible backup via USB, network and so on

-Pentaplex : preview, record, playback, backup and remote access

-DHCP, DDNS, PPPoE network protocol and CMS supported

-Remote control via IE or CMS : preview, playback, backup, PTZ and configuration

-4 PoE network ports, support IPC direct connection to NVR; support PoE power supply

-Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device

-Multi-user online simultaneously

-Authorization management, log view and device status view

-1080P HD output, true high resolution display

-Support PTZ preset and auto cruise, up to 255 presets and 8 cruises

-Support NAT function and QRCode scanning by mobile phone and PAD Powerful smart phone & Pad surveillance with iOS and Andriod OS

-Mobile Apps: SuperLive Plus

Model SEC-NVR-SPEEDEX-T3104B1-5MP SEC-NVR-SPEEDEX-T3108B1-5MP System OS Embedded Linux Video Network Input 4 CH IPC input 8CH IPC input Network Input Resolution 6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/D1/CIF Output HDMI × 1 : 1920 × 1080 / 1280 × 1024/ 1024 × 768 VGA: 1920 × 1080 / 1280 × 1024/ 1024 × 768 Compression Standard H.265 / H.264 Audio Network Input 4 CH IPC audio input 8 CH IPC audio input 2-way Audio No Local Output No (HDMI supports the audio output) Compression G.711(U/A) Record Record Stream Dual stream recording Resolution 6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/D1/CIF Frame Rate 6MP@20fps(NTSC/PAL); 5MP or lower@30fps/25fps(NTSC/PAL) Playback Simultaneous Playback Max. 4 CH Max. 8 CH Search Time slice / time / event / tag search Smart Search Highlighted color to display the camera record in a certain period of time, different colors refers to different record events Function Play, pause, FF, FB, digital zoom, etc. Decoding Capability Live View/ Playback 1CH 6MP 4CH 720P Alarm Mode Manual, sensor, motion, exception, smart events Input Support IPC alarm input Output Support IPC alarm output Triggering Record, snapshot, buzzer, preset, e-mail, etc. Network Interface RJ 45 100Mbps × 1 Protocol TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPs, 802.1x Incoming Bandwidth 32 Mbps 56 Mbps Outgoing Bandwidth 32 Mbps 56 Mbps Mobile Device OS iOS, Andriod Storage HDD Interface SATA2.0 × 1, max 8T Backup Local Backup U disk, USB mobile HDD Network Backup Yes Port USB USB 2.0 × 2 Remote Controller Optional Others Power Supply DC 12V/1.5A Consumption < 6W ( without HDD ) Dimensions (mm) 255 × 222 × 42 ( W × D × H ) Working Environment -10 ～ 50
