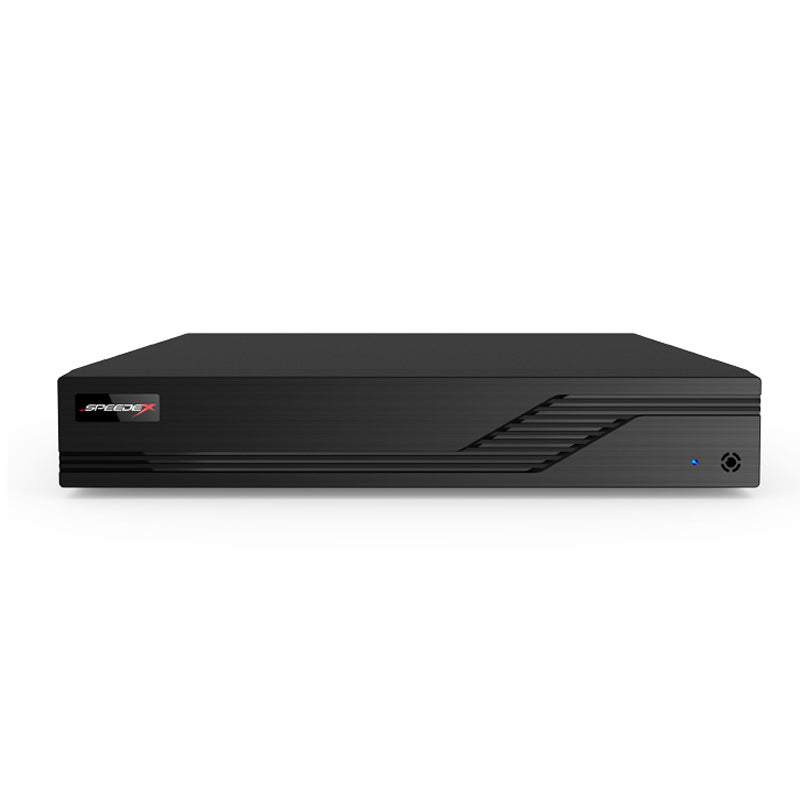

Speedex T2116-5MP 16 Channel +8 IP Channel 5MP H.265 Full HD XVR

-16 CHTVI/AHD/CVI5MP/4MP/1080P/720P/WD1 video input

-16 CH DVR support 8 IP video input (5MP/4MP/3MP /1080P/960P/720P)

-Adoptstandard H.265 high profile compression for mattoget high-quality video at much lower bit rate

-Intuitive and user-friendly Graphics User Interface (GUI), window style operation by mouse

-Multi-mode recording: manual / timed / motion /AI recording playback : 8 simultaneously playback

-Search: time slice, time, event, tag search

-Express and flexible backup via USB, network and so on

-Pentaplex: preview, record, playback, backup and remote access

-DHCP, DDNS, PPPoE network protocol

-Remote control via Web or CMS : preview, playback, backup, PTZ and configuration

-Dual stream technology for local storage with high definition, remotenetwork transmission and remote surveillance with mobile device

-Authorization management, log review and device status review

-Support 1080P output, true high resolution display

-Support PTZ preset and auto cruise, up to 255 presets and 8 cruises

-Support NAT function and QR Code scanning by mobile phones

-Powerful mobile surveillance by smart phones with iOS and Andriod OS

-Mobile Apps: SuperLive Plus

Model SPEEDEX-T2104NS-5MP SPEEDEX-T2108NS-5MP SPEEDEX-T2116-5MP System OS Embedded Linux Video Analog Video Input BNC × 4 BNC × 8 BNC × 16 BNC interface (1.0Vp-p; 75Ω) TVI/ AHD/CVI : 5MP/ 4MP/ 1080P/ 720P/ WD1 IP Video Input 2CH 4CH 8CH Up to 5MP@25fps Up to 5MP@30fps Up to 5MP@30fps Total Input 6CH 12CH 24CH Output HDMI × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 VGA × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 BNC × 1 : CVBS ( used as the main or spot output ) Compression H.264/H.265 Multi-screen Display 1/4/6/9 1/4/6/8/9/13/16 1 /4/6/8/9/13/16/25 Audio Input RCA × 1 Output RCA × 1 (linear, 600Ω) Two-way audio Take up channel one audio input Compression G.711(U/A) Record Resolution 5MP Lite/ 4MP Lite/ 1080P/ 1080P Lite/ 720P/ WD1 Frame Rate Analog Channel: 5MP Lite :10fps; 4MP Lite/1080P : 12fps (PAL)/15fps (NTSC); 1080P Lite/720P/WD1 : 25fps (PAL)/30fps (NTSC) IP Channel: 25fps (PAL)/30fps (NTSC) Bit Rate 32Kbps ~ 4Mbps 32Kbps ~ 4Mbps 32Kbps ~ 5Mbps Mode Manual, timer, motion, smart event Playback Playback 4CH 8CH 16 CH Search Time slice / time / event / tag search Smart Search Highlight colors to display the camera record in a certain period of time, different colors refer to different record events Function Play, pause, FF, FB, digital zoom, etc. Alarm Mode Manual, motion, exception, smart event Input No Output No Network Interface RJ 45 100Mbps × 1 Protocol TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPs, NTP, SMTP Incoming Bandwidth 16Mbps 32Mbps 32Mbps Outgoing Bandwidth 40Mbps 60Mbps 80Mbps Client Connection Max.5 users Max.5 users Max.10 users Mobile Device OS iOS, Android Storage HDD SATA × 1, up to 10TB Backup Local Backup U disk, USB mobile HDD Network Backup Yes Port RS 485 RS 485 × 1 (half-duplex) USB USB 2.0 × 2 ( in the rear panel ) Remote Controller Optional
