Overview

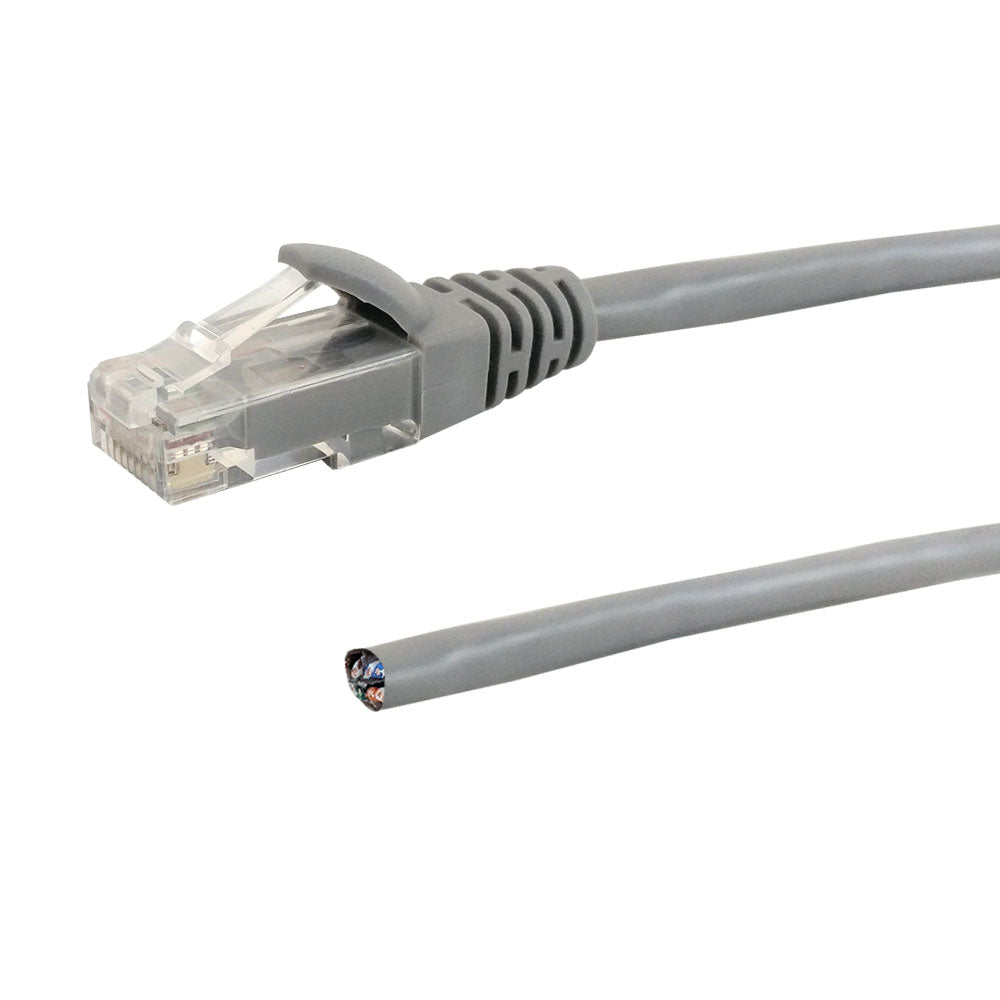

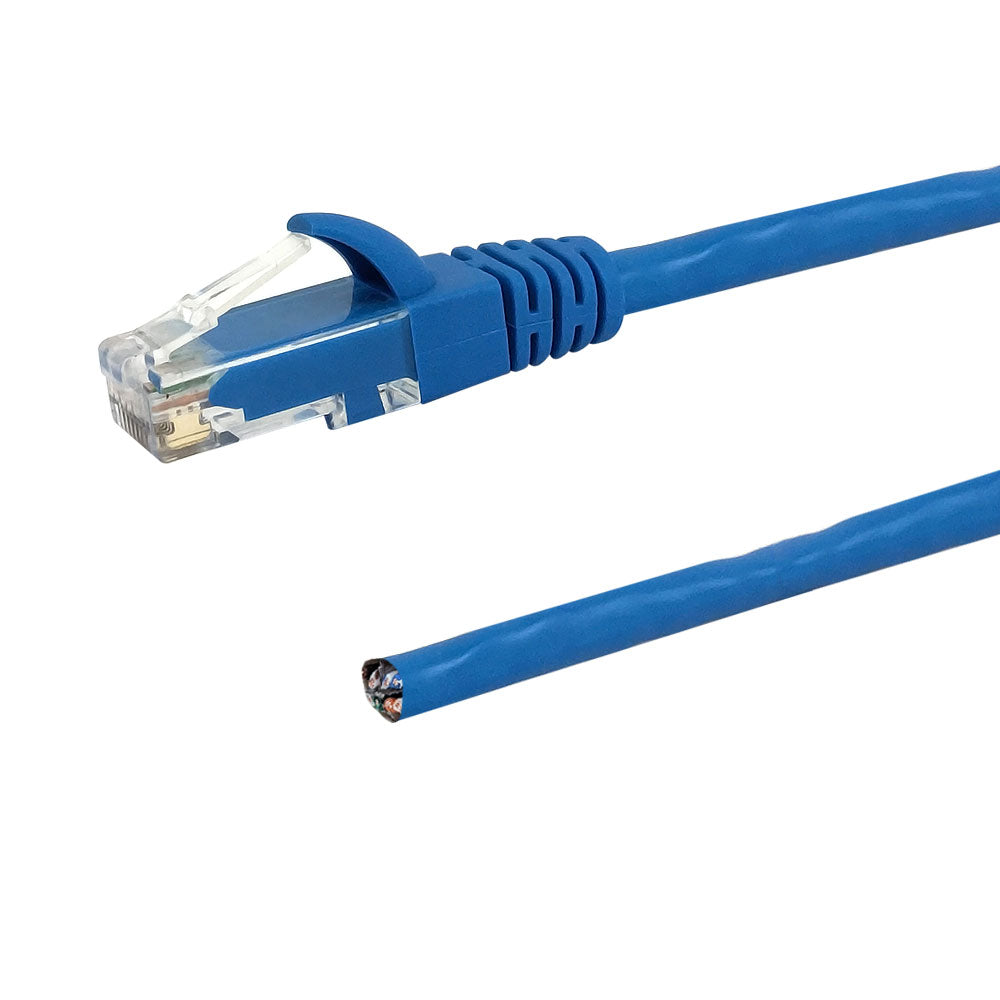

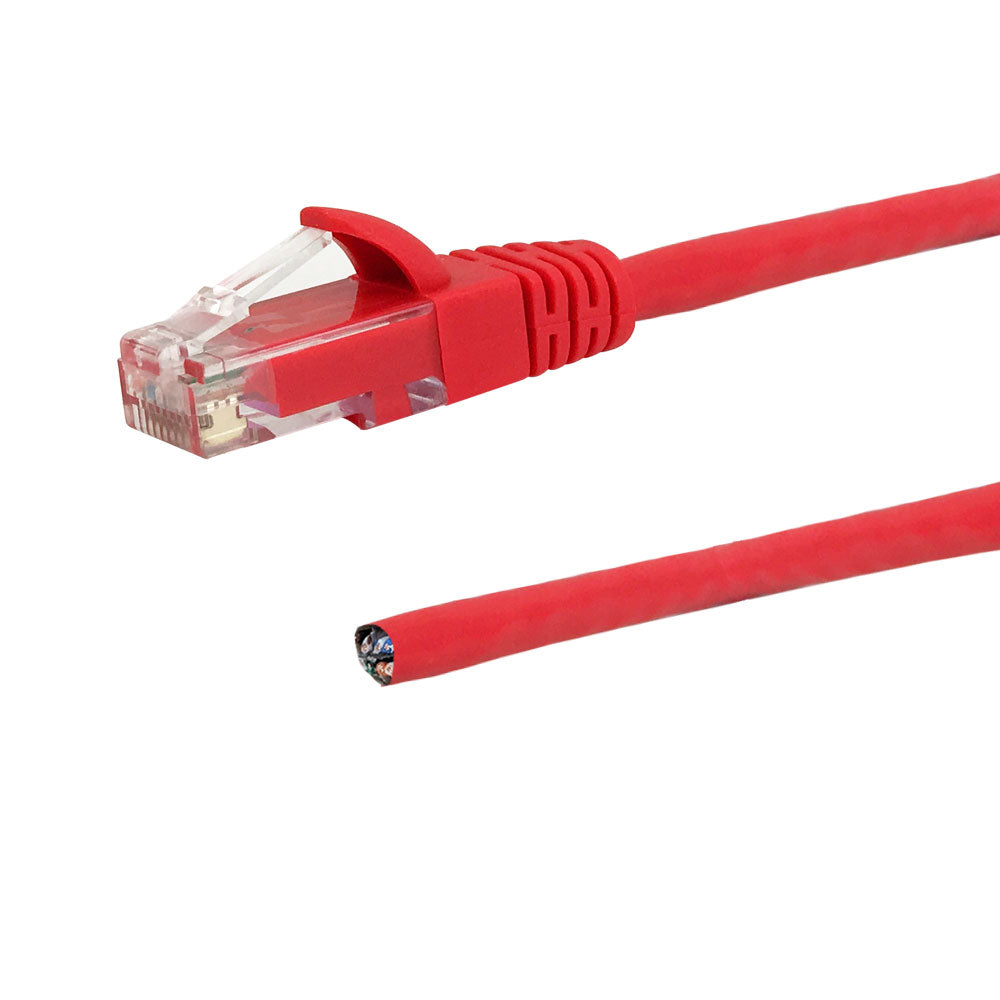

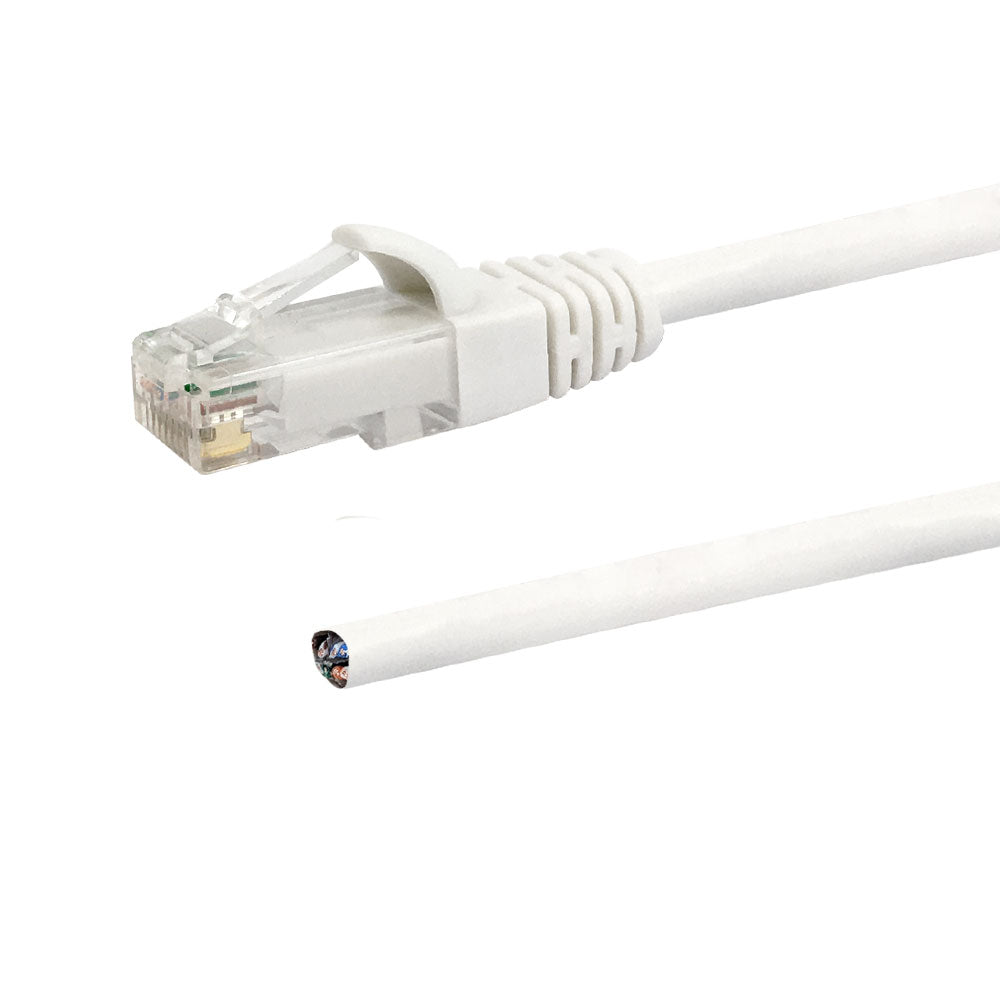

This Cat5e ethernet cable consists of a RJ45 male on one end and has no termination on the other. The un-terminated end is typically used for punching down onto a terminal block and the RJ45 end can be connected to a patch panel or pass-through coupler.
100% Copper Solid ConductorsThis cables is manufactured using high quality pure bare copper to ensure optimal performance and longest lifetime. 50 Micron Gold Plated ConnectorsThis non-corrosive, thickest available gold plating delivers optimum conductivity and maintains a stable signal connection with little risk of getting damaged over time.
|
Application
Specifications
|
Physical Characteristics
|
|
|---|---|
| Colors Available | Blue/Grey/Red/White |
| Connector Plating | Gold Plated 50 Micron |
| Cable Diameter | 6.2mm |
| Wire Gauge | 23AWG Solid |
| Color Code | 568A/568B |
| Shielding | UTP (Unshielded) |
| Pairs | 4 |
| Fire Rating | CMR (FT4 Riser Rated) |
| Strain Relief | Tab Style Strain Relief Boot |
| Temperature Rating | 75 C |
| Jacket Type | PVC |
|
Connectors
|
|
| Connector A | RJ45 Long Body Male |
| Connector B | Un-terminated |
|
Performance
|
|
| Frequency | 350 MHz |
|
Approvals
|
|
| ETL | Compliant - Cable |
|
Environmental
|
|
| RoHS | Compliant |
|
Package Information
|
|
| Package Quantity | 1 |
